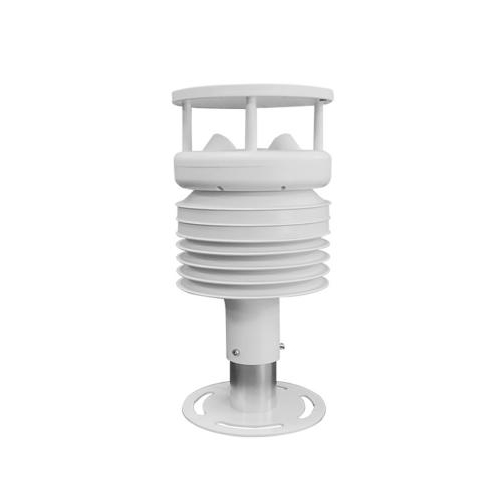

BGT Integrated Weather Station

BGT-W87X(P1) Corrosion resistant ultrasonic environmental monitoring instrument is a meteorological environment monitoring instrument specially designed for Marine environment or highly corrosive gas environment. Compared with the traditional ultrasonic environmental monitoring instrument, it is equipped with a special salt-corrosion resistant ultrasonic transducer. It also uses a special structural design to enhance the corrosion resistance and easy replacement of the sensor probe, while also optional efficient heating function to ensure that it can still work reliably in cold environments.

Availability:



Inquire

◀◀ Key Selling Points ▶▶

photobank (1)

1. Comprehensive Weather Monitoring

Measures 20+ meteorological parameters, including temperature, humidity, wind speed/direction, rainfall, solar radiation, PM2.5/10, CO2, and more.

High accuracy: ±0.3°C for temperature, ±2% for humidity, and ±2° for wind direction.

2. Modular & Customizable Design

Supports customizable sensor configurations to meet specific monitoring needs (e.g., agriculture, environmental research, or industrial applications).

Expandable with additional sensors for UV, noise, soil moisture, and gas detection (CO, SO2, NO2, O3, etc.).

3. Robust & All-Weather Ready

IP65-rated enclosure withstands harsh environments (-30°C to +70°C).

Ultrasonic wind sensors eliminate moving parts, reducing maintenance and improving durability.

4. Smart Connectivity & Data Management

RS485 Modbus-RTU protocol enables seamless integration with IoT platforms and SCADA systems.

Supports real-time data logging and customizable reporting intervals.

5. Easy Installation & Low Maintenance

Quick setup: Mounts on a standard pole (57–70mm diameter) in minutes.

Low power consumption: 130mA@12V (700mA with heating), suitable for solar-powered setups.

◆◆ Key Features:

All-in-One Monitoring: Track temperature, humidity, wind, rain, PM2.5, CO2, and more.
Customizable Sensors: Add UV, noise, soil moisture, or gas sensors as needed.
Built for Extremes: IP65-rated, survives -30°C to +70°C.
Smart Connectivity: RS485 Modbus-RTU for IoT integration.
Easy Setup: Mounts in minutes, low power consumption.

◀◀ Product Parameters ▶▶

Measuring parameters
	Measuring range	Accuracy	Resolution
Ultrasonic wind speed	0~70m/s	Start wind ≤0.8m/s, ±(0.5+0.02V)m/s	0.01m/s
Ultrasonic wind direction	0~360°	±3°	1°
Air temperature	-40~100°C	±0.3°C	0.1°C
Air humidity	0~100%RH	±5%RH	0.1%RH
Air pressure	300~1100hPa	±1 hPa（25°C）	0.1 hPa
Optical rainfall	0~4mm/min	±10% (indoor static test, rain intensity is 2mm/min)	0.1mm
Illuminance	0~200000 Lux (Outdoor)	±4%	1 Lux
Radiation	0~1500 W/m²	±3%	1W/m²
CO2	0~5000ppm	±(50ppm+5%)	1ppm
Noise	30~130dB(A)	±3dB(A)	0.1 dB(A)
PM2.5/10	0~500μg/m³	≤100ug/m³: ±10ug/m³; >100ug/m³: ±10% of reading (calibrated with TSI 8530, 25±2°C, 50±10%RH ambient conditions)	1μg/m³
PM100	0~20000μg/m³	±30μg/m³±20%	1μg/m³
CO	0~1000ppm	≤±3% of reading (25°C)	0.1ppm
NO2	0~20ppm	≤±3% of reading (25°C)	0.01ppm
SO2	0~20ppm	≤±3% of reading (25°C)	0.01ppm
O3	0~10ppm	≤±3% of reading (25°C)	0.01ppm
Compass	0~360	±5°	1°
Longitude	-180~180°	≤10m	0.1s
Latitude	-90~90°	≤10m	0.1s
Altitude	-3276.7~3276.7m	≤3m	0.1m
Electrical parameter
Power supply	DC9 ~30V or DC5V
Power consumption	0.4W (10.5W when heating)
Output	RS485 Modbus-RTU(Default), 4G(Optional), 4~20mA/0~5V(only for ultrasonic anemometer)
Working temperature	-40°C~+60°C
Working humidity	0~100%RH
Mechanical structure parameter
Material	ABS engineering plastic
Entry cable	Aviation socket, sensor cable 3 meters
Color	White
Ingress Protection	IP65

◆◆ Master the Elements with BGT Weather Station
From farms to cities, the BGT Integrated Weather Station delivers real-time, lab-grade data on 20+ parameters – temperature, humidity, wind, rain, PM2.5, CO2, and more. Perfect for precision agriculture, environmental research, and smart city planning.

◆◆ Customizable for Your Needs

Add UV, noise, soil moisture, or gas sensors to tailor the station to your specific requirements.

RS485 Modbus-RTU ensures seamless integration with IoT platforms and SCADA systems.
