◀◀ Key Selling Points ▶▶

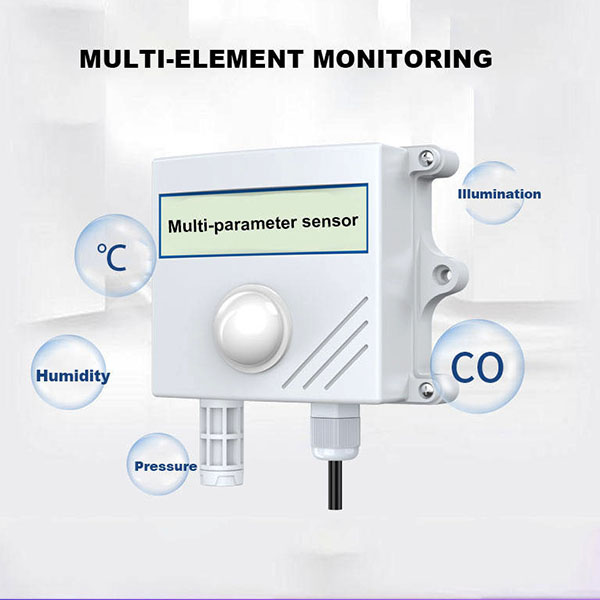

✅ 4 Critical Parameters in One Device
Measures temperature (-40°C–75°C), humidity (0–100% RH), CO2 (0–5000ppm), and light (0–200,000 Lux) with lab-grade accuracy.
✅ Military-Grade Durability

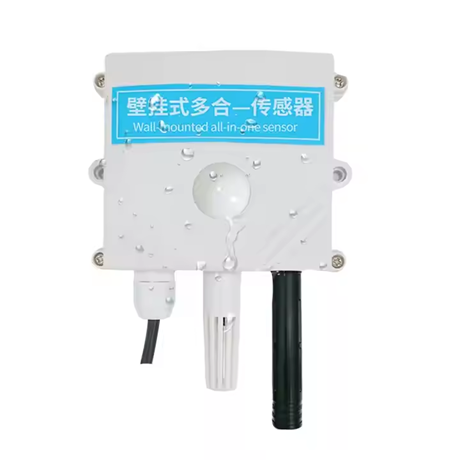

IP65 waterproof/dustproof housing withstands rain, snow, and high-dust environments.
✅ Flexible Connectivity
Output options: 4–20mA, 0–10V, RS485 (Modbus-RTU/ASCII), or RS232 for seamless IoT integration.
✅ Plug-and-Play Customization
Mix and match sensors (e.g., temperature + humidity + CO2) to suit specific needs.
✅ Energy Efficiency
Low power consumption (0.1–85mW) + 9–30V DC wide voltage input for versatile deployments.
◀◀ Product Parameters ▶▶
| Category | Details |
|---|---|
| Temperature Range | -40°C to 75°C (±0.2°C accuracy) |
| Humidity Range | 0–100% RH (±3% accuracy) |
| CO2 Range | 0–5000ppm (±50ppm +5% accuracy) |
| Light Range | 0–200,000 Lux (indoor: 0–65,535 Lux) |
| Outputs | 4–20mA / 0–10V / RS485 (Modbus-RTU) / RS232 |
| Power Supply | 9–30V DC (12V recommended) |
| Protection Grade | IP65 (dust/waterproof) |
| Probe Options | Built-in (standard, PE, metal) / External (high-temp, threaded) |

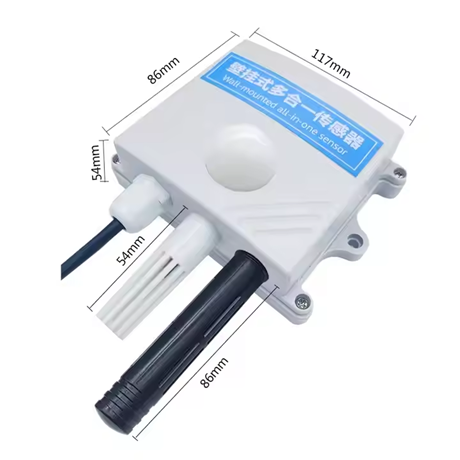

| Dimensions | Compact wall-mount design (105mm hole spacing) |
| Communication | Modbus-RTU protocol, 9600 baud rate |
◀◀ Application Scenarios ▶▶
Smart Greenhouses
Optimize crop growth by monitoring CO2, humidity, and light for tomatoes, cannabis, or orchids.
Industrial Workshops
Ensure worker safety and equipment efficiency with real-time CO2 and temperature alerts.
HVAC Systems in Buildings
Automate climate control in offices, hospitals, or data centers for energy savings.
Warehouse & Cold Storage
Prevent spoilage by tracking humidity and temperature in food/pharma storage.
️ Underground Utility Tunnels
Detect hazardous gas (CO2) buildup and ensure ventilation compliance.
