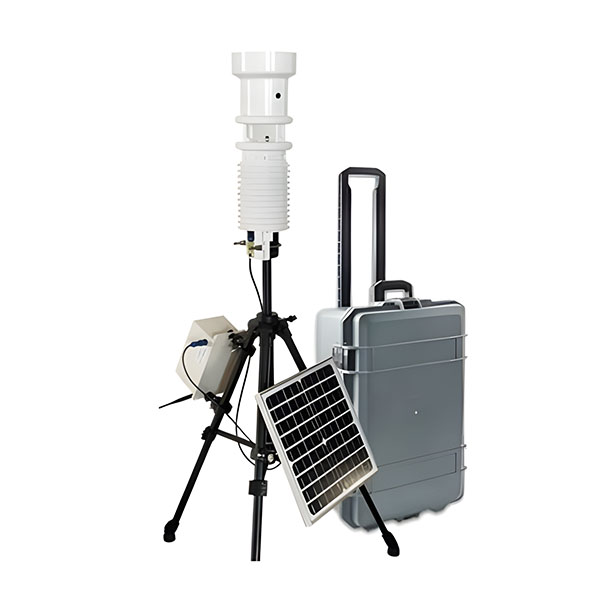

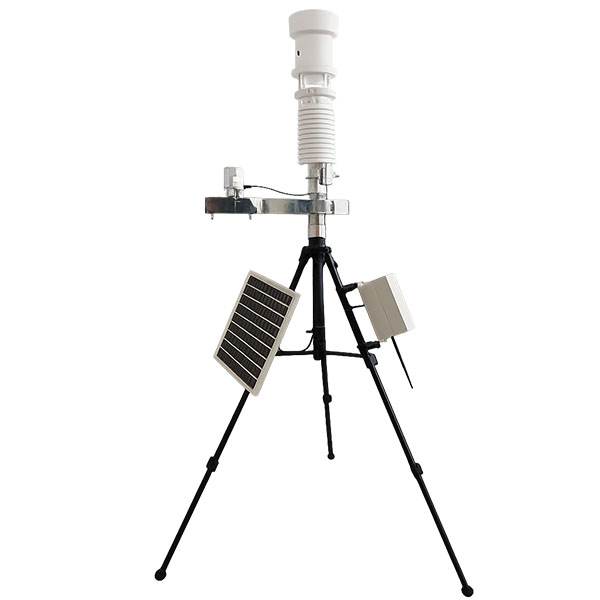

Portable Automatic Weather Station for Academic Research
Portable Automatic Weather Station for Academic Research Portable Automatic Weather Station for Academic Research
Portable Automatic Weather Station for Academic Research Portable Automatic Weather Station for Academic Research

loading

Portable Automatic Weather Station for Academic Research

Share to:
facebook sharing button
twitter sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button
This is an integrated weather station designed specifically for high-precision, multifunctional weather monitoring needs. The weather station complies with the meteorological observation standards of the World Meteorological Organization (WMO) and meets the meteorological industry standards of the People's Republic of China (QX/T1-2000). It features a high-performance dual-core 32-bit processor that integrates multiple signal acquisition channels, enabling all-weather on-site monitoring of various meteorological elements.
Availability:
Inquire


◀◀  Key Selling Points  ▶▶


  1. Multifunctionality and High Precision:

    • Supports monitoring of up to 30 meteorological elements, including ambient temperature, ambient humidity, wind direction, wind speed, rainfall, air pressure, solar radiation, ultraviolet radiation, soil temperature, soil moisture, visibility, CO, CO2, SO2, etc.

    • All sensor specifications meet the meteorological industry standards of the People's Republic of China, ensuring high accuracy and reliability of data.

  2. High-Performance Processor:

    • Equipped with a high-performance dual-core 32-bit processor that integrates multiple signal acquisition channels, ensuring efficient and stable data acquisition and processing.

  3. Portability and Easy Installation:

    • Compact and lightweight, making it easy to carry and install, suitable for rapid deployment in various environments and scenarios.

  4. Multiple Communication Methods:

    • Supports MODBUS RTU protocol, with RS485 interface for data communication with computers and other devices, facilitating real-time data reading and processing.

  5. Durability and Protection:

    • The main unit has a protection rating of IP68, while other parts have a rating of IP65, ensuring stable operation in harsh environments.

    • The device includes lightning protection measures to ensure safety during thunderstorms.

  6. Intelligence and Automation:

    • Features a self-check function; the device automatically performs self-checks upon startup to ensure normal operation.

    • Data collection intervals can be set, supporting scheduled data collection and transmission.

2507automatic weather station - BGT



◀◀  Product Parameters  ▶▶


Sensor Name Measurement Range Accuracy Resolution
Ambient Temperature -50～120℃ ±0.3℃ 0.1℃
Ambient Humidity 0～100%RH ±2%(≤80%时), ±3%(>80%时) 0.05%
Dew Point Temperature -50~50℃ Calculated Value (Complimentary) 0.1℃
Wind Speed 0～60m/s 2%+0.03Vm/s 0.1m/s
Wind Direction 0～360° ±2° 1°
Electronic Compass 0°～360° ±2° 0.1° Magnetic
Rainfall (Optical) 0～4mm/min ≤4% 0.1mm
Rainfall (Tipping Bucket) 0～4mm/min ≤4% 0.2mm/0.5mm
Air Pressure 300～1100hPa ±0.5hpa 0.1hPa
Total Radiation (Photoelectric) 0～2000W ≤5% 1W/m²
Total Radiation (Thermoelectric) 0～2000W ≤2% 1W/m²
Ultraviolet Radiation 0～500W ≤5% 1W/m²
Illuminance 0～200000Lux ±5% 10Lux
Sunshine Duration 0～24h ±0.1h 0.1h
Photosynthetically Active Radiation 0～2500μmol/m²·s ±5%rdg+10dgts 1μmol/m²·s
Noise 20~130dB ±5db 0.1dB
PM2.5 0～500ug/m³ ±2% 0.01ug/m³
PM10 0～1000ug/m³ ±5% 0.01ug/m³
Soil Temperature -50~+80℃ ±0.3℃ 0.1℃
Soil Moisture 0～100% ±3% 0.10%
Soil Salinity 0～15mS/cm ±5% 0.01mS/cm
Soil pH 1~14PH ±0.02PH 0.01pH
Evaporation 0～200mm ±2% 1mm
Carbon Monoxide (CO) 0～20ppm ±2%FS 0.001ppm
Sulfur Dioxide (SO2) 0～1ppm ±2%FS 0.001ppm
Nitrogen Dioxide (NO2) 0～1ppm ±2%FS 0.001ppm
Ozone (O3) 0～1ppm ±2%FS 0.001ppm
Oxygen (O2) 0～30%VOL ±2%FS 0.01%VOL
Carbon Dioxide (CO2) 0～2000ppm ±2%FS 1ppm
Volatile Organic Compounds (VOC) 0～20ppm ±2%FS 0.001ppm
Hydrogen Sulfide (H2S) 0～10ppm ±2%FS 0.001ppm
Ammonia (NH3) 0～10ppm ±2%FS 0.001ppm
Methane (CH4) 0～5000ppm ±2%FS 1ppm
Chlorine (CL2) 0～10ppm ±2%FS 0.01ppm
Ethylene Oxide (ETO) 0～10ppm ±2%FS 0.01ppm
Hydrogen Peroxide (H2O2) 0～100ppm ±2%FS 0.01ppm
Hydrogen (H2) 0～1000ppm ±2%FS 1ppm
Hydrogen Chloride (HCL) 0～10ppm ±2%FS 0.01ppm
Nitrogen (N2) 0～100%VOL ±2%FS 0.01VOL
Nitric Oxide (NO) 0～1ppm ±2%FS 0.001ppm
Chlorine Dioxide (CLO2) 0～20ppm ±2%FS 0.01ppm
Methyl Mercaptan (CH3SH) 0～10ppm ±2%FS 0.01ppm
Bromine (Br2) 0～10ppm ±2%FS 0.01ppm
Phosgene (COCL2) 0～1ppm ±2%FS 0.001ppm
Other Parameters Customizable Please consult sales



◀◀  Application Scenarios  ▶▶


  1. Meteorological Monitoring:

    • Suitable for meteorological stations and observation points for real-time monitoring and recording of meteorological data, providing data support for weather forecasting and research.

  2. Environmental Monitoring:

    • Used in environmental monitoring stations to monitor pollutant concentrations in the air (such as SO2, NO2, CO, O3, PM2.5, PM10, etc.), providing data support for environmental protection and management.

  3. Agriculture and Planting:

    • Used in farmland and orchards to monitor soil temperature, humidity, light intensity, and other parameters, providing scientific basis for agricultural production.

  4. Construction and Engineering:

    • Used on construction sites to monitor wind speed, wind direction, temperature, humidity, and other meteorological parameters, ensuring construction safety.

  5. Transportation and Airports:

    • Used by traffic management departments and airports to monitor meteorological conditions, providing data support for traffic safety and flight scheduling.

  6. Scientific Research and Hydrology:

    • Used by research institutions and hydrological monitoring stations for the collection and study of meteorological and hydrological data, providing data support for scientific research and water resource management.

  7. Military and Warehousing:

    • Used in military bases and storage facilities to monitor meteorological conditions, providing support for military operations and material storage.

  8. Emergency Response and Disaster Relief:

    • Used in emergency response and disaster relief efforts to provide real-time meteorological data, supporting emergency decision-making.
