Accurate Rainfall Measurement Made Simple with the WS-601SS5 Tipping Bucket Rain Gauge

Accurate Rainfall Measurement Made Simple with the WS-601SS5 Tipping Bucket Rain Gauge

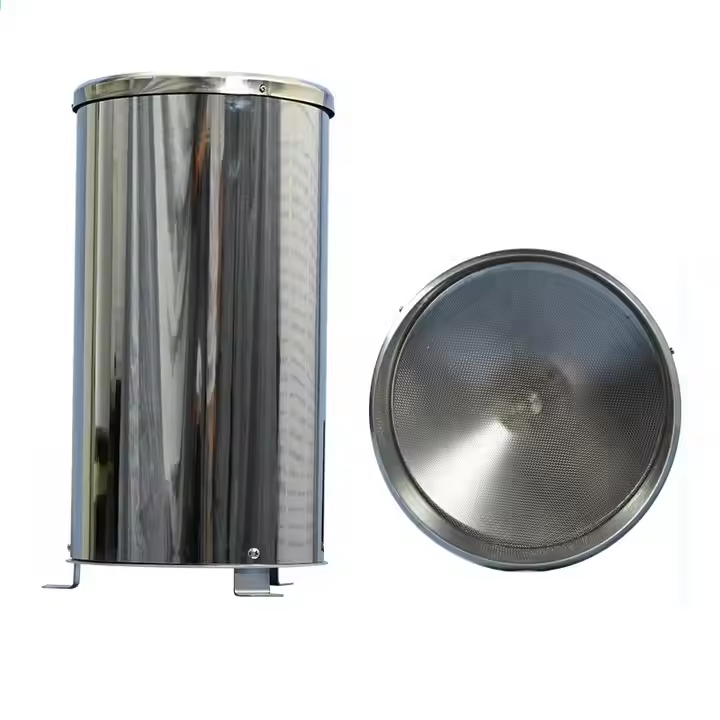

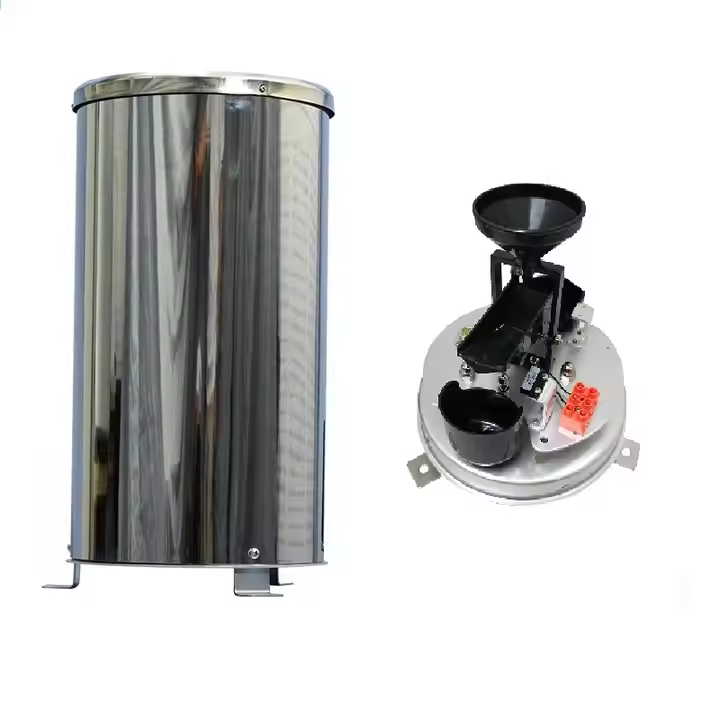

The WS-601SS5 Tipping Bucket Rain Gauge is a high-precision, durable, and reliable rainfall measurement device designed for a wide range of environmental and meteorological applications. With a 0.5mm resolution and a stainless steel body, this rain gauge is built to withstand harsh weather conditions while providing accurate and consistent rainfall data. It is ideal for use in weather stations, hydrological monitoring, flood control, and smart agriculture systems.

Availability:



Inquire

Key Selling Points

Product Parameters

Application Scenarios

◀◀ Key Selling Points ▶▶

Rain Gauge Resolution Explained

0.2 mm Resolution: The tipping bucket tilts once for every 0.2 mm of rainfall, offering higher precision.
0.5 mm Resolution: The bucket tilts once for every 0.5 mm of rainfall, providing lower resolution but more suitable for heavy rainfall conditions.
Key Differences

Aspect	0.2 mm Resolution	0.5 mm Resolution
Measurement Accuracy	Higher, captures light rain, drizzle, and early rainfall	Moderate, focuses more on total rainfall
Data Update Frequency	High (more frequent tipping events)	Lower (fewer tipping events)
Best for Rainfall Intensity	Light to moderate, continuous precipitation	Heavy rain, storms, short-term downpours
Maintenance Needs	More frequent tipping, slightly higher mechanical wear	Less frequent tipping, longer service life
Typical Applications	Meteorology, research, agricultural water management, urban drainage planning	Flood warning, storm monitoring, reservoir hydrology, emergency response

Application Guidelines

Research & Precision Meteorology

When fine-scale rainfall detection is critical → Choose 0.2 mm
Examples: Agricultural irrigation scheduling, climate studies, urban stormwater management.

Storms & Disaster Prevention

When the priority is rapid detection of heavy rainfall and total volume → Choose 0.5 mm
Examples: Flood forecasting, flash flood early warning, reservoir spillway monitoring, landslide prevention.

Operation & Maintenance Considerations

Remote or hard-to-access stations → 0.5 mm (more durable, less wear)
Research stations with dedicated maintenance → 0.2 mm (higher accuracy)

✅ In short:

0.2 mm resolution → Best for accuracy and light rainfall monitoring (research, agriculture, meteorology).
0.5 mm resolution → Best for heavy rainfall and flood warning applications (disaster prevention, hydrology).

◀◀ Product Parameters ▶▶

Type	WS-601SS5
Material	Stainless Steel ( Body) ; Aluminum (Base)
Tips	Black ABS plastic bucket
Rainfall capacity	≤ 4mm/min
Accuracy	±≤ 2%(≤ 0.4mm/min); ±≤ 4% (≤4mm/min);
Resolution	0.5mm
Collector diameter	200mm ±0.3%
Collector area	314cm²
Height	402.2mm
Acute angle of cutting edge	40~45°

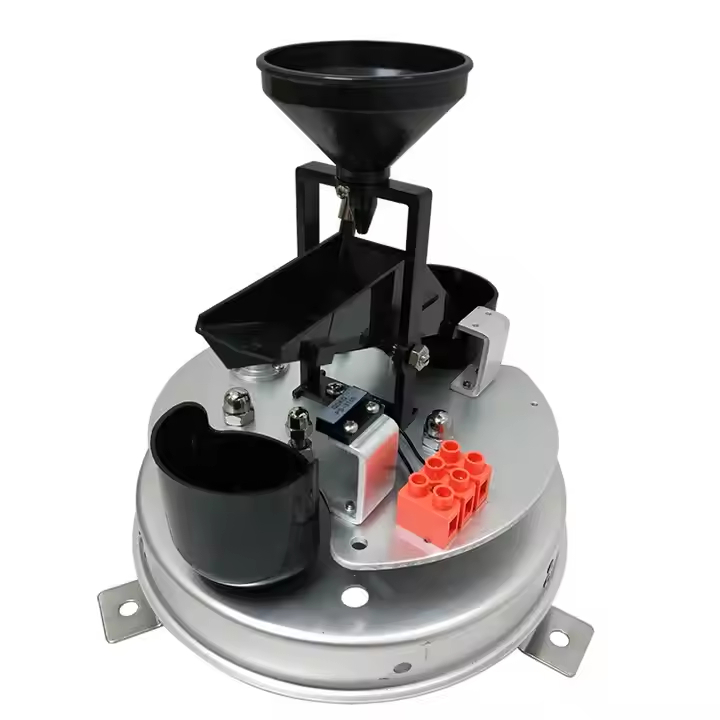

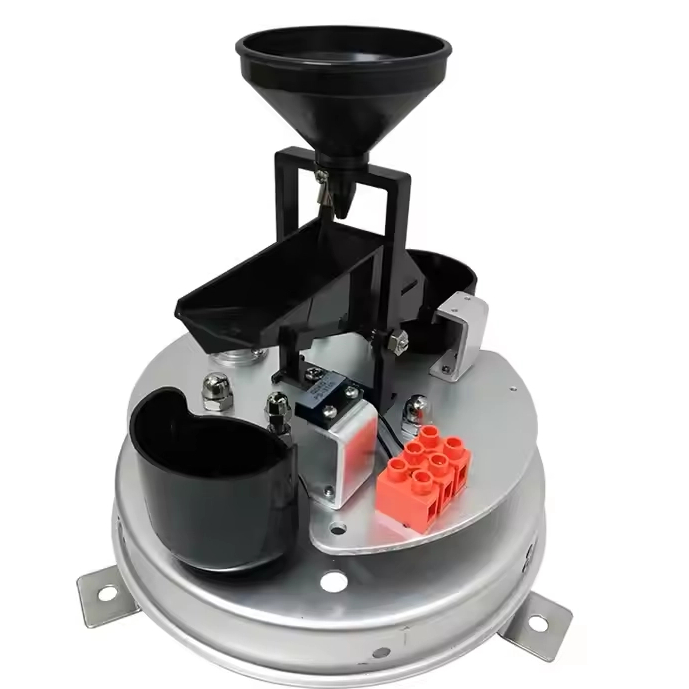

Output	Standard Pulse(Reed switch, 2pulse/mm); RS485 optional
Power supply	Pulse : MaxDC24V,100mA ; RS485: DC5V or DC 7-24V
Switch	Rugged Magnetic Proximity

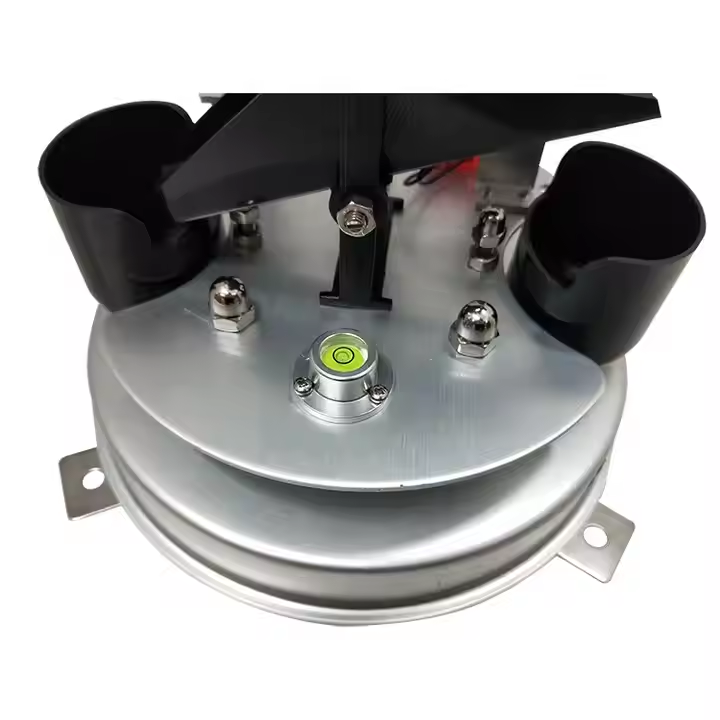

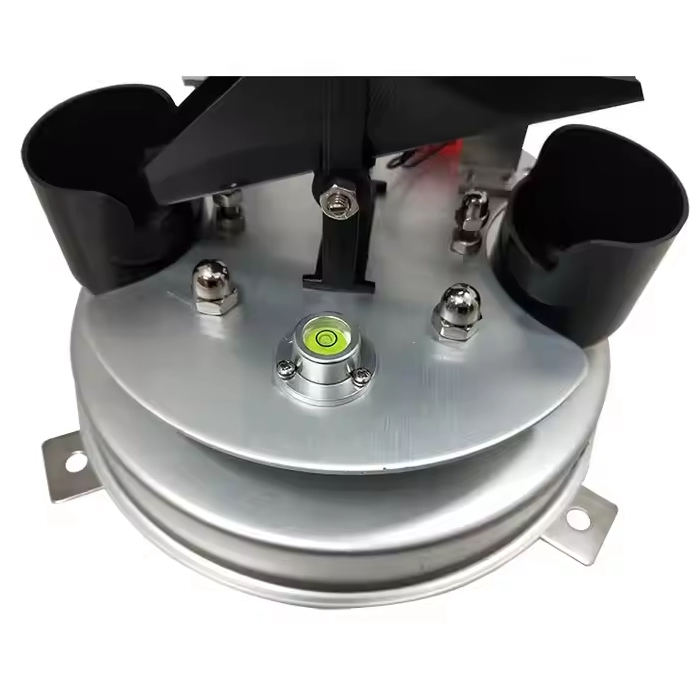

Leveling	Bulls eye level adhered, leveling screw adjust
Debris protection filter	Steel stainless Mesh is provided inside the collector
Mounting holes	Three mountings
Discharge control	Straight through flow mechanism
Working temperature	-20～80℃
Working humidity	0%~95%RH

◀◀ Application Scenarios ▶▶

1. Weather Monitoring Stations:

Ideal for meteorological data collection, providing accurate and real-time rainfall measurements for weather forecasting and climate research.

2. Hydrological Monitoring:

Used in river and flood control systems to monitor rainfall and predict flood risks, helping to protect communities and infrastructure.

3. Environmental Monitoring:

4. Suitable for environmental studies, providing accurate rainfall data for water resource management and ecosystem monitoring.

5. Smart Agriculture:

Helps farmers optimize irrigation and crop management by providing precise rainfall data, improving water efficiency and crop yields.

6. Urban Water Management:

Integrates into smart city systems to monitor urban rainfall, enabling better decision-making for drainage systems and flood prevention.

7. Natural Disaster Monitoring:

Essential for early warning systems, providing real-time rainfall data to predict and manage natural disasters such as floods and landslides.

Experience the Future of Rainfall Monitoring with us!

The WS-601SS5 Tipping Bucket Rain Gauge is the ultimate solution for accurate, reliable, and cost-effective rainfall monitoring. Whether you're managing a weather station, a flood control system, or a smart agriculture project, the WS-601SS5 delivers the performance you need.
