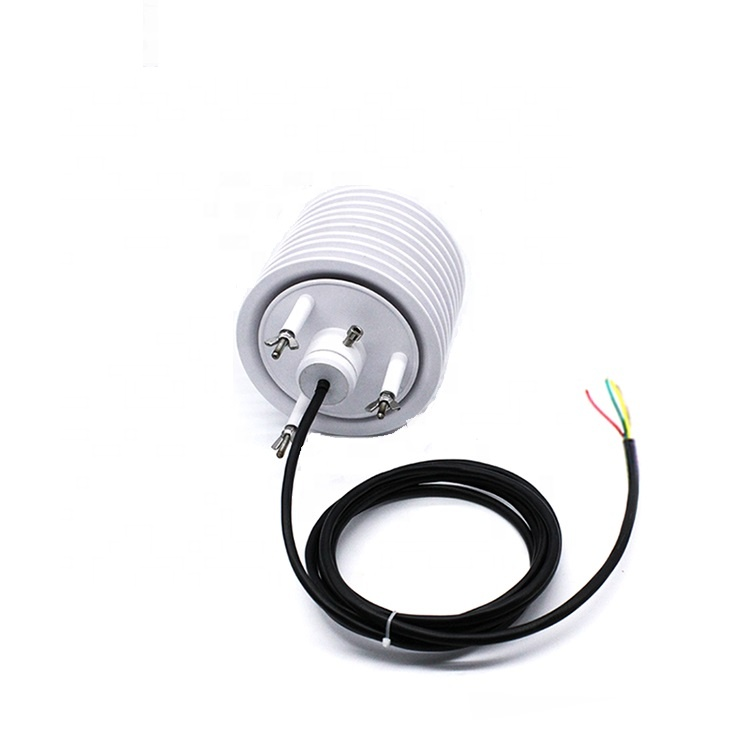

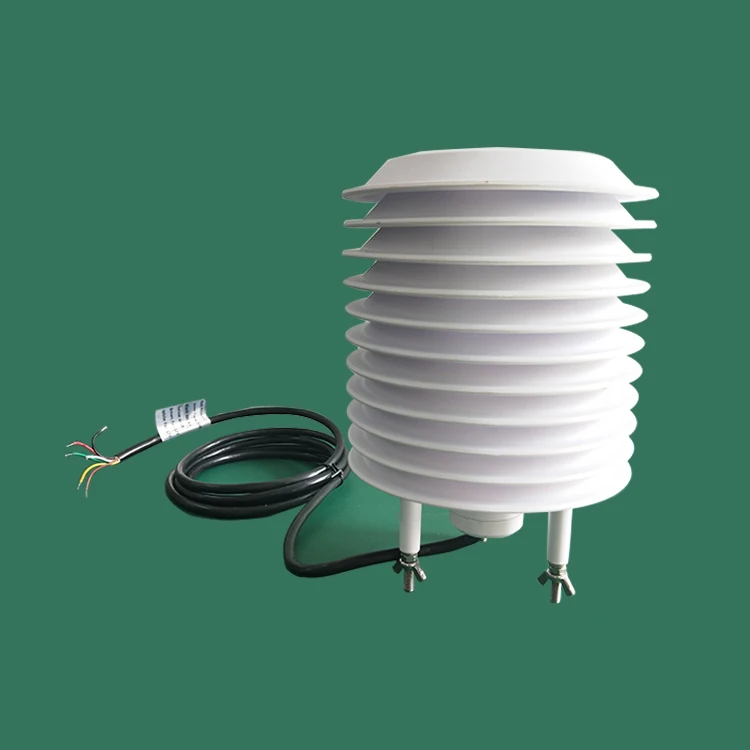

Air Temperature and Humidity Sensor

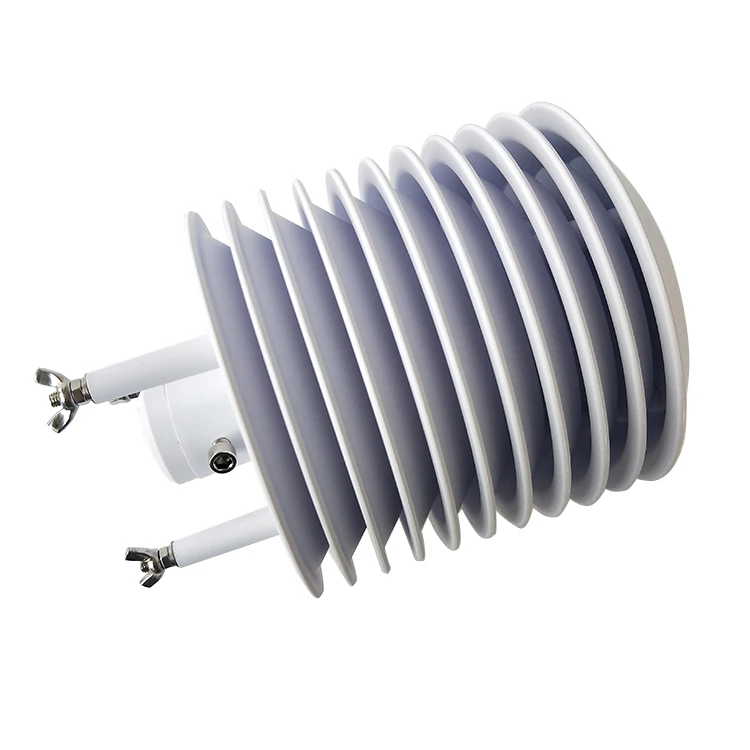

This sensor is a professional instrument designed for precise monitoring of ambient temperature, relative humidity, and atmospheric pressure. The shield is made of UV-resistant plastic material, ensuring durability and protection against harsh environmental conditions, including water ingress and prolonged sun exposure.

Availability:



Inquire

Product Description

Product Name	Greenhouse rs485 temperature humidity sensor with nice appearance
Type	BGT-WSD2
Measuring Range	Temperature Range:-20~50℃ (Analog output), -40~100℃ (Digital output); Humidity Range:0~100%RH;
Resolution	Temperature:0.1℃; Humidity :0.1%RH;
Accuracy	Temperature: ±0.3℃ (standard), ±0.2℃ (high precision); Humidity:±3%RH (standard), ±1.8%RH (high precision);
Power Supply	DC5V or DC 9-30V
Output Method	Analog: Current: 4-20mA,0-20mA; Voltage: 0-5V;0-2.5V; 1-5V; Digital: RS485/RS232 (Modbus)
Cable Length	Standard: 2m
Working Environment	Temperature -40℃~100℃ Humidity ≤100%RH (No condensation)
Ingress Protection	IP54
Power Consumption	1mW

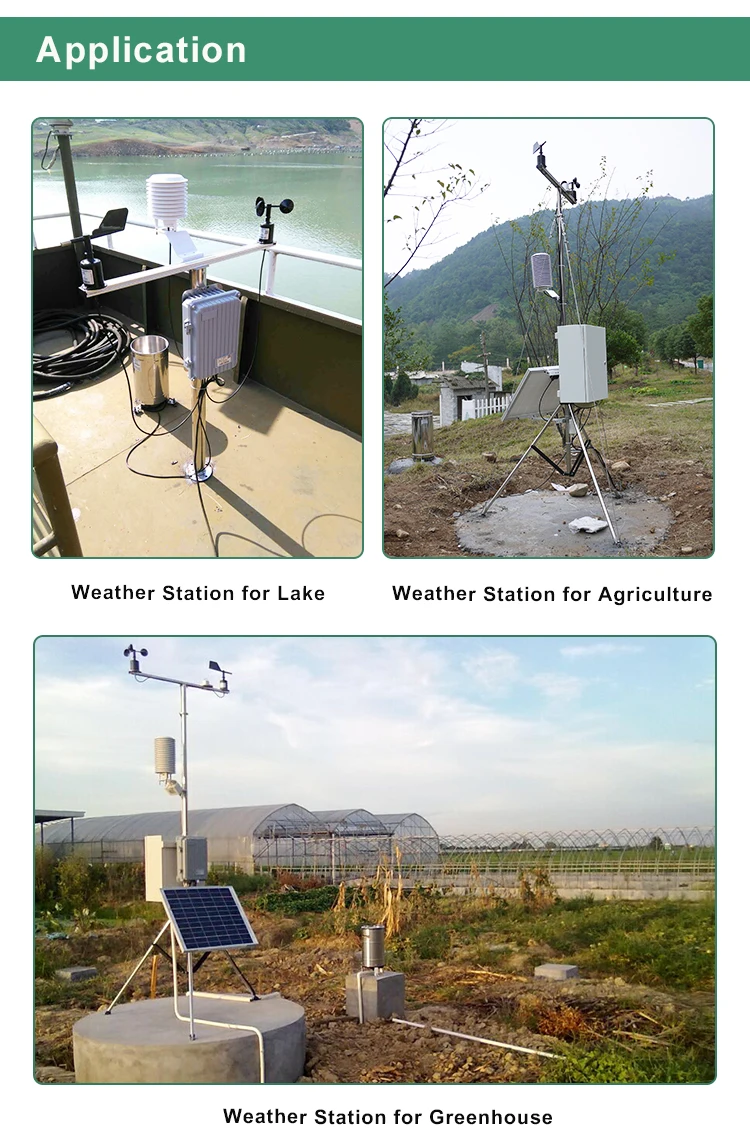

Application case	Agricultural monitoring, forestry monitoring, and meteorological observation
