Air Temperature humidity sensor

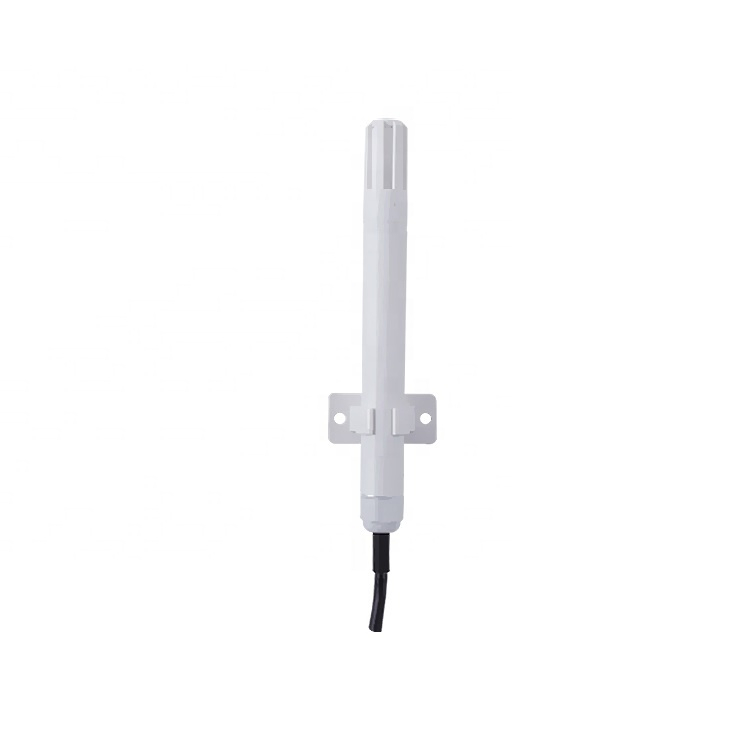

BGT-WSD1 temperature and humidity sensor is a product we developed for the measurement of temperature and humidity in the meteorological monitoring system outdoor. It has the features of linear response, wide measurement range and high precision, and the probe has solved the problems of temperature drift and temperature compensation. In terms of performance, it can be comparable to the imported meteorological observation sensor of the same type.



Inquire

Product Description

Description:
BGT-WSD1 temperature and humidity sensor is a product we developed for the measurement of temperature and humidity in the meteorological monitoring system outdoor. It has the features of linear response, wide measurement range and high precision, and the probe has solved the problems of temperature drift and temperature compensation. In terms of performance, it can be comparable to the imported meteorological observation sensor of the same type.
Application:
Lake
Agriculture
Greenhouse

Further details , please contact us !

Type	BGT-WSD1
Measuring Range	-40～60℃; 0～100%RH
Resolution	Temperature:0.1℃; Humidity :0.1%RH;
Accuracy	≦±0.3℃(@25℃）; ≦±3%RH（@25℃，20%-80%RH）
Power Supply	DC 9-24V
Output Method	0-10V/ 4-20mA/ RS485
Cable Length	Standard: 3m
Long-term stability	< 0.5℃/year, < 3%RH/year
Response time	< 15s, <12s (63%)
Working Environment	-40～60℃
Ingress Protection	IP65
Material	ABS engineering plastic
Working Current	DC12V <20mA ( RS485 output) ；DC12V <45mA (Current output)
Power consumption	DC12V <0.24W ( RS485 output) ；DC12V <0.54W (Current output)
