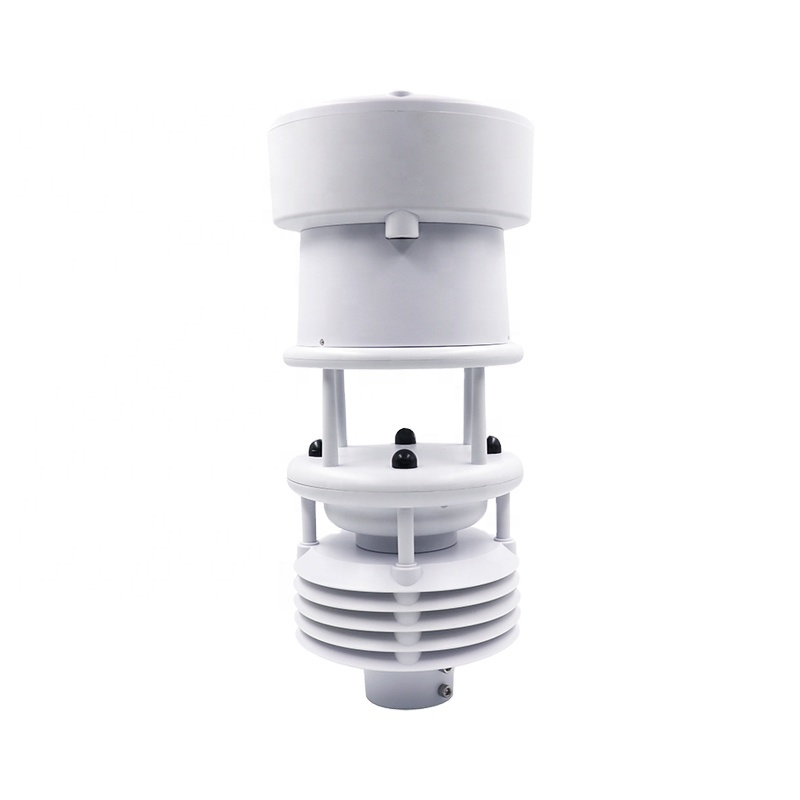

Description: On the basis of advanced sensor technology, the BGT-W800 series micro meteorological station integrates the main meteorological parameter, including Wind direction, Wind speed, Air temperature, Relative humidity, Barometric pressure, Precipitation, Global radiation,Illuminance, UV, PM2.5, PM10, CO, SO2, CO2, NO2, O3 and Noise. BGT-W800 series have high product integration, high appearance level, easy to install, no need of wiring,can completely replace the traditional patchwork small automatic meteorological environment observation station.
Application: Electric power safety monitoring
Meteorological monitoring system
Solar and wind generation
Marine vessels & small airports & helipads
Environment monitoring
Bridge & Tunnel
Agriculture
Further details , please contact us !
| Elements | Range | Resolution | Accuracy |
| PM2.5 | 0-1000ug/m³ | 1ug/m³ | ±10%(<500ug) |
| PM10 | 0-1000ug/m³ | 1ug/m³ | ±10%(<500ug) |
| CO | 0-12.5ppm | ≤10ppb | ±1.5%F.S |
| SO2 | 0-2000ppb | ≤10ppb | ±1.5%F.S |
| NO2 | 0-2000ppb | ≤10ppb | ±1.5%F.S |
| O3 | 0-2000ppb | ≤10ppb | ±1.5%F.S |
| Temperature | -40-60℃ | 0.01℃ | ±0.3℃（25℃） |
| Humidity | 0-100%RH | 0.01% | ±3%RH |
| Speed | 0-60m/s | 0.01m/s | （0-30m/s）±0.3m/s or ±3% |
| Direction | 0-360° | 0.1° | ±2° |
| Pressure | 300-1100hpa | 0.1hpa | ±0.5hpa（0-30℃） |
| Rainfall | 0-200mm/h | 0.1mm | ±10% |
| Illuminance | 0-100klux | 10lux | 3% |
| Radiation | 0-2000W/M2 | 1W | 3%(thermoelectric)
5%(photoelectric) |
| Noise | 30-130dB | 0.1dB | 10% |
| UV | 0-15 | 1 | / |
| CO2 | 0-5000ppm | 1ppm | ±40ppm |
| TVOC | 0-10ppm | 1ppb | ±5%F.S |
