Multi-element meteorological station for smart cities

Multi-element meteorological station for smart cities

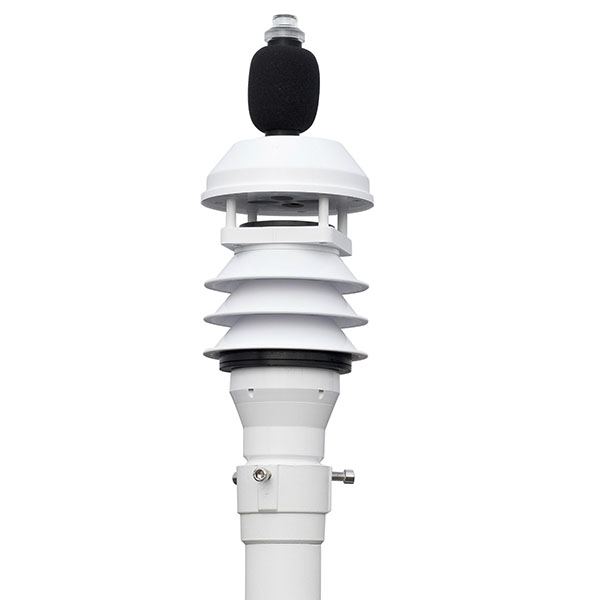

The BGT-W83X(M3) compact automatic weather station is an independently developed multi-parameter environmental monitoring solution designed for civil use. This integrated system accurately measures a wide range of meteorological data, including air temperature, humidity, wind speed, wind direction, atmospheric pressure, rainfall, solar radiation, illuminance, UV radiation, visibility, ambient noise, and particulate matter (PM2.5/PM10). Engineered with low-power chips, it ensures efficient and stable operation while offering an optional MINI visibility detection module for enhanced functionality. Ideal for smart city control systems, it delivers reliable performance in a compact design.

Availability:



Inquire

◀◀ Key Selling Points ▶▶

1. Multi-parameter monitoring: Supports simultaneous measurement of over ten environmental and meteorological parameters.

2. Low-power design: Equipped with energy-efficient chips for extended operation and reduced maintenance.

3. Modular expandability: Optional MINI visibility sensor for customized application needs.

4. Compact and integrated: Space-saving and easy to deploy in diverse environments.

5. Smart city-ready: Designed for seamless integration into intelligent urban management networks.

◀◀ Product Parameters ▶▶

Measurement Item	Measurement Range	Accuracy	Resolution
Wind Speed	0 - 70 m/s	±3%	0.1 m/s
Wind Direction	0 - 359°	±3°	1°
Temperature	-40℃ - +80℃	±0.5℃	0.1℃
Humidity	0 - 100% RH	±5%	1%
Atmospheric Pressure	300 - 1100 hPa	±1 hPa	0.1 hPa
Rainfall *	0 - 100 mm/h	±5%	0.01 mm
Altitude *	-500m - 9000m	±5%	1 m
Solar Radiation *	0 - 1750 W/m²	±5%	0.1 W/m²
Illuminance *	0 - 200,000 lux	±4%	0.1 lux
UV Radiation *	100-200K μW/cm²	±10%	1 μW/cm²
PM2.5 / PM10 *	0 - 1000 μg/m³	±10%	1 μg/m³
Visibility *	20 - 10,000 m	±15%	1 m
Noise *	30 - 130 dB	±1.5 dB	0.1 dB

Digital Output	RS232, RS485, SDI-12 (Choose one)
Baud Rate	4800 - 19200
Communication Protocol	ModBus, NMEA-0183, ASCII
Ingress Protection	IP65
Operating Temp. & Humidity	-20℃ - +50℃ / 0 - 100% RH
Power Supply & Consumption	DC 7-24V / (0.1 - 0.7) W
Dimensions & Weight	Φ 110mm × (217-298) mm / 0.38 kg
Housing Color/Material	White / ASA
