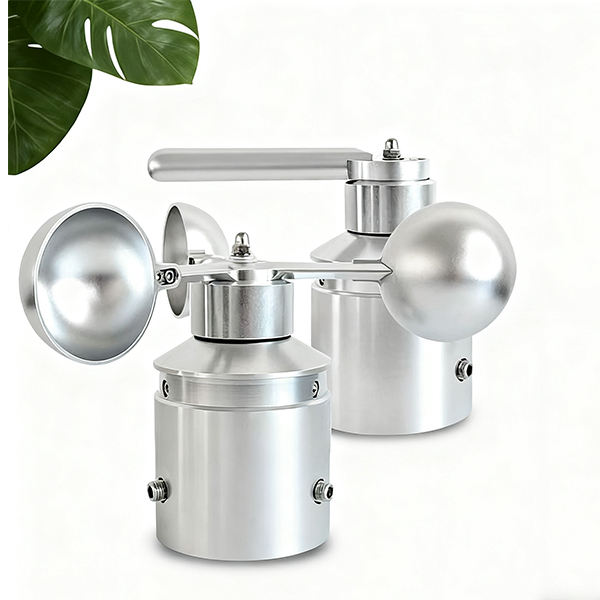

Outdoor IP66 Weather Sensor for Wind Speed and Direction

Outdoor IP66 Weather Sensor for Wind Speed and Direction

This wind measurement is specialized equipment designed for monitoring key meteorological parameters, primarily wind speed and wind direction. The sensors and precision measurement instruments to conduct continuous atmospheric monitoring, with collected data transmitted to integrated processing systems for analysis and interpretation. These sensors serve critical functions across multiple sectors including meteorological observation, wind energy assessment, and environmental protection.

Availability:



Inquire

Product Description

Key Technical Features:

Aviation-grade materials: Constructed with aerospace-standard alloys for exceptional durability
Japanese precision bearings: High-performance imported bearings ensuring minimal friction and long-term reliability
Advanced anti-dust technology: Specialized sealing processes suitable for harsh operating environments
IP66 protection rating: Certified dust-tight and water-resistant construction

Optimized for wind power applications: Specifically engineered as the ideal monitoring solution for wind farm operations

Datasheet

Parameter	Measurement Range	Resolution	Accuracy
Wind Speed	0-75 m/s	0.1 m/s	±0.5 m/s (≤20 m/s) ±3% (>20 m/s)
Wind Direction	0-360°	<1°	±2°
Atmospheric Pressure	10-1100 hPa	0.1 hPa	<±0.5 hPa
Ambient Temperature	-50 to 90 °C	0.1 °C	±0.3 °C
Ambient Humidity	0-100% RH	0.05% RH	±3%
Average Wind Speed	0-75 m/s	0.1 m/s	±0.3 m/s
Maximum Wind Speed	0-75 m/s	0.1 m/s	±0.3 m/s
Minimum Wind Speed	0-75 m/s	0.1 m/s	±0.3 m/s
Wind Speed Std Dev	0-75 m/s	0.1 m/s	-
5-min Average Wind Speed	0-75 m/s	0.1 m/s	±0.3 m/s
Average Wind Direction	0-360°	<1°	±2°
Maximum Wind Direction	0-360°	<1°	±2°
Minimum Wind Direction	0-360°	<1°	±2°
Wind Direction Std Dev	0-360°	<1°	-
5-min Average Wind Direction	0-360°	<1°	±2°
Maximum Temperature	-50 to 90 °C	0.1 °C	±0.3 °C
Minimum Temperature	-50 to 90 °C	0.1 °C	±0.3 °C
Average Temperature	-50 to 90 °C	0.1 °C	±0.3 °C
Temperature Std Dev	-	0.1 °C	-
Maximum Humidity	0-100% RH	0.05% RH	±3%
Minimum Humidity	0-100% RH	0.05% RH	±3%
Average Humidity	0-100% RH	0.05% RH	±3%
Humidity Std Dev	-	0.05% RH	-

Application Domains:

Meteorological monitoring networks
Wind resource assessment and energy forecasting
Environmental protection and climate research
Industrial safety monitoring systems
Renewable energy project development

Further details , please contact us !
