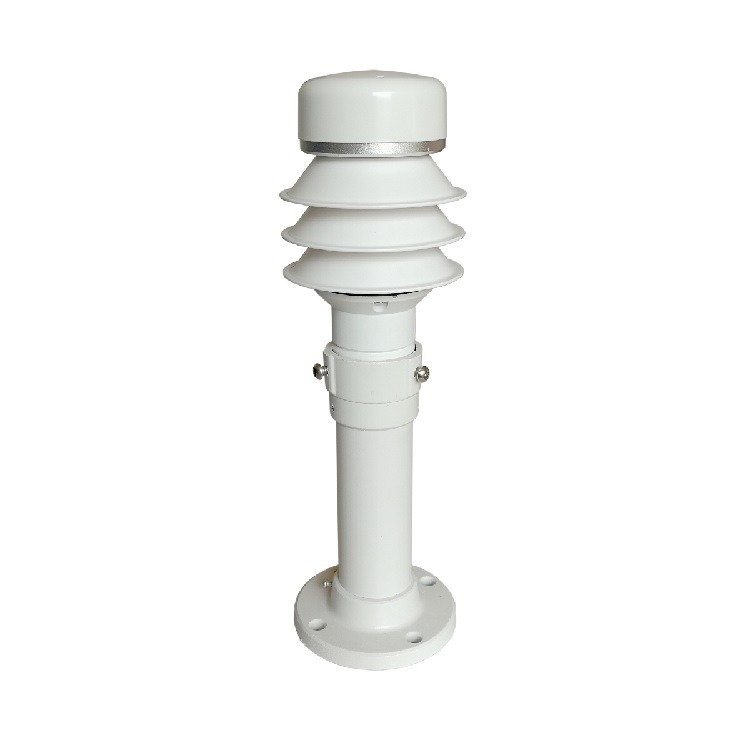

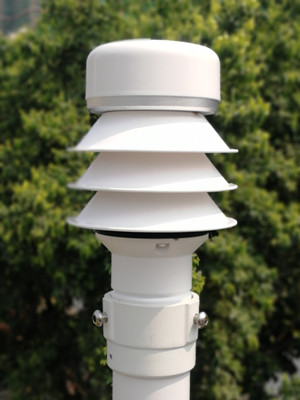

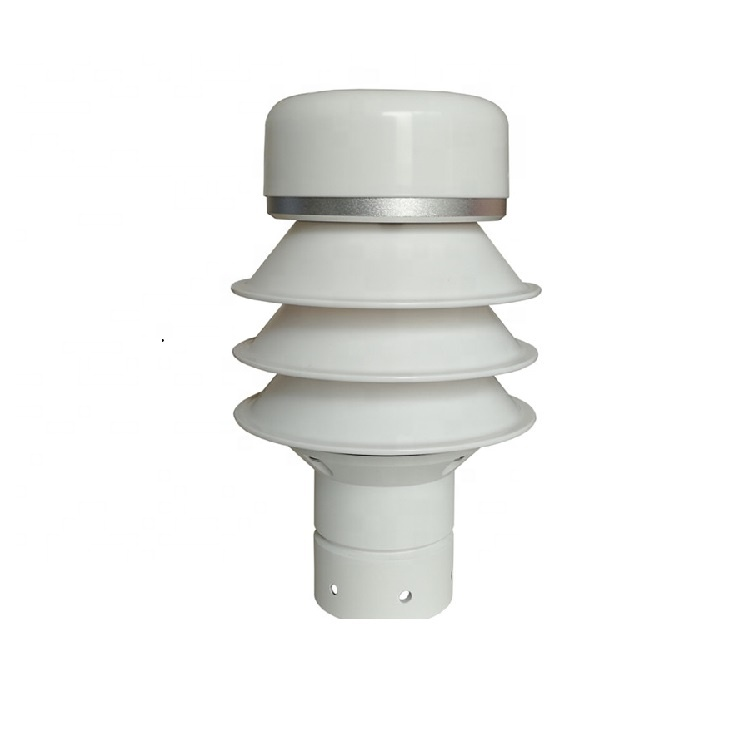

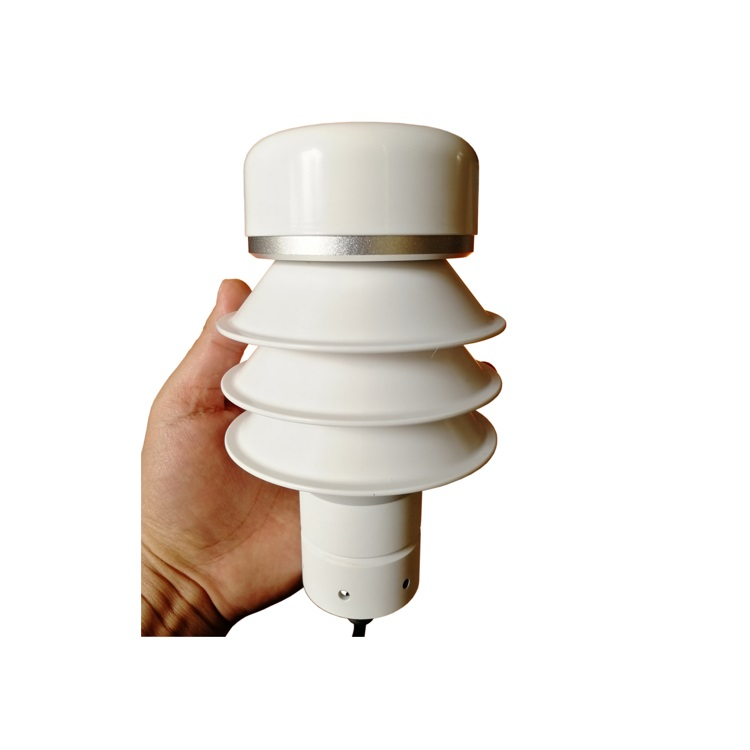

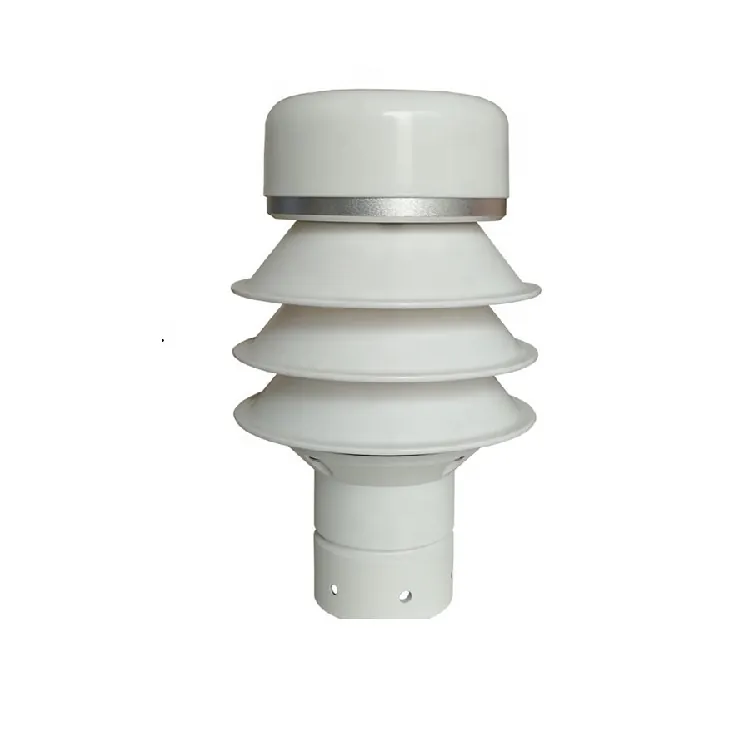

Radar Rain Sensor
Radar Rain Sensor Radar Rain Sensor
Radar Rain Sensor Radar Rain Sensor
Radar Rain Sensor Radar Rain Sensor

loading

Radar Rain Sensor

Share to:
facebook sharing button
twitter sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button
Availability:
Products Description

BGT-WS2E adopts advanced small 24GHz Doppler radar, the speed rate of drops is registered with a 24 GHz radar system. By comparison between the speed rate and the size of drops, the quantity of rain or its intensity will be registered. The rain/precipitation type (rain/snow/snow-covered rain/freezing rain/hail) is determined thanks to the speed rate of the rain. Resolution up to 0.1mm, without maintenance.

Data Sheet
Model
BGT-WS2E
Type of precipitation
No precipitation, Rain
Measurement surface
8cm2
Measurement Range
0.01-200mm/hour (liquid precipitation)
Accuracy
±10% of the measured value for liquid
Measuring drop size range
0.5-5.0mm
Resolution
0.1mm
Sample rate
1 time per second
Communication interface
RS485、RS232
Protocol
ModBus、NMEA-0183、ASCII
Voltage
DC7-30V; 130mA@12V
Operating Temperature
-40℃ - +70℃
Operating Humidity
0-100%
Size
Ø105 * 178mm
Material
Aluminum alloy +ABS
Net Weight
0.45kg
Application

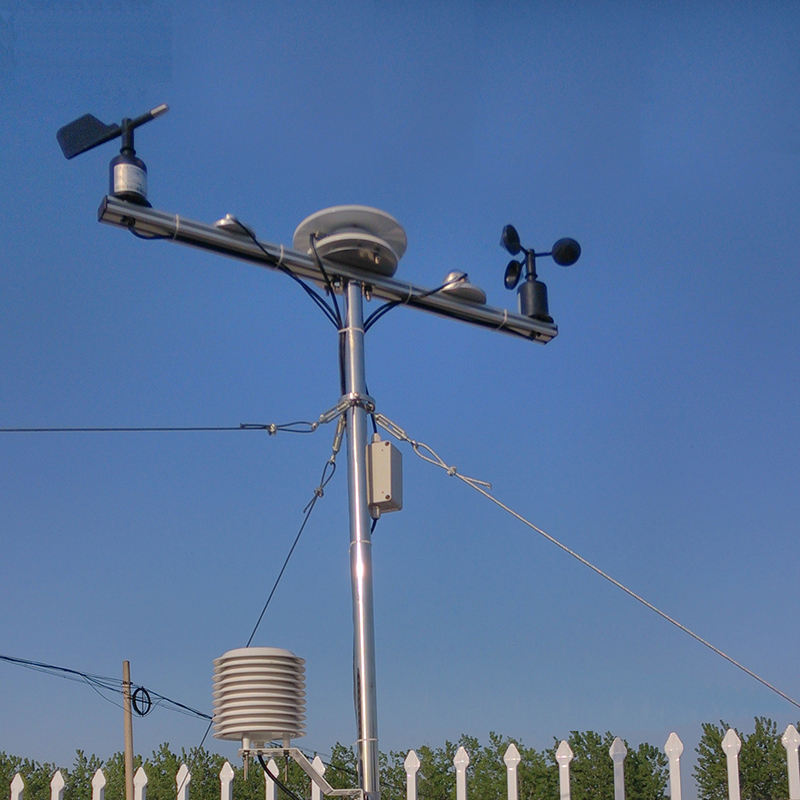

weather Station.
Hydrology

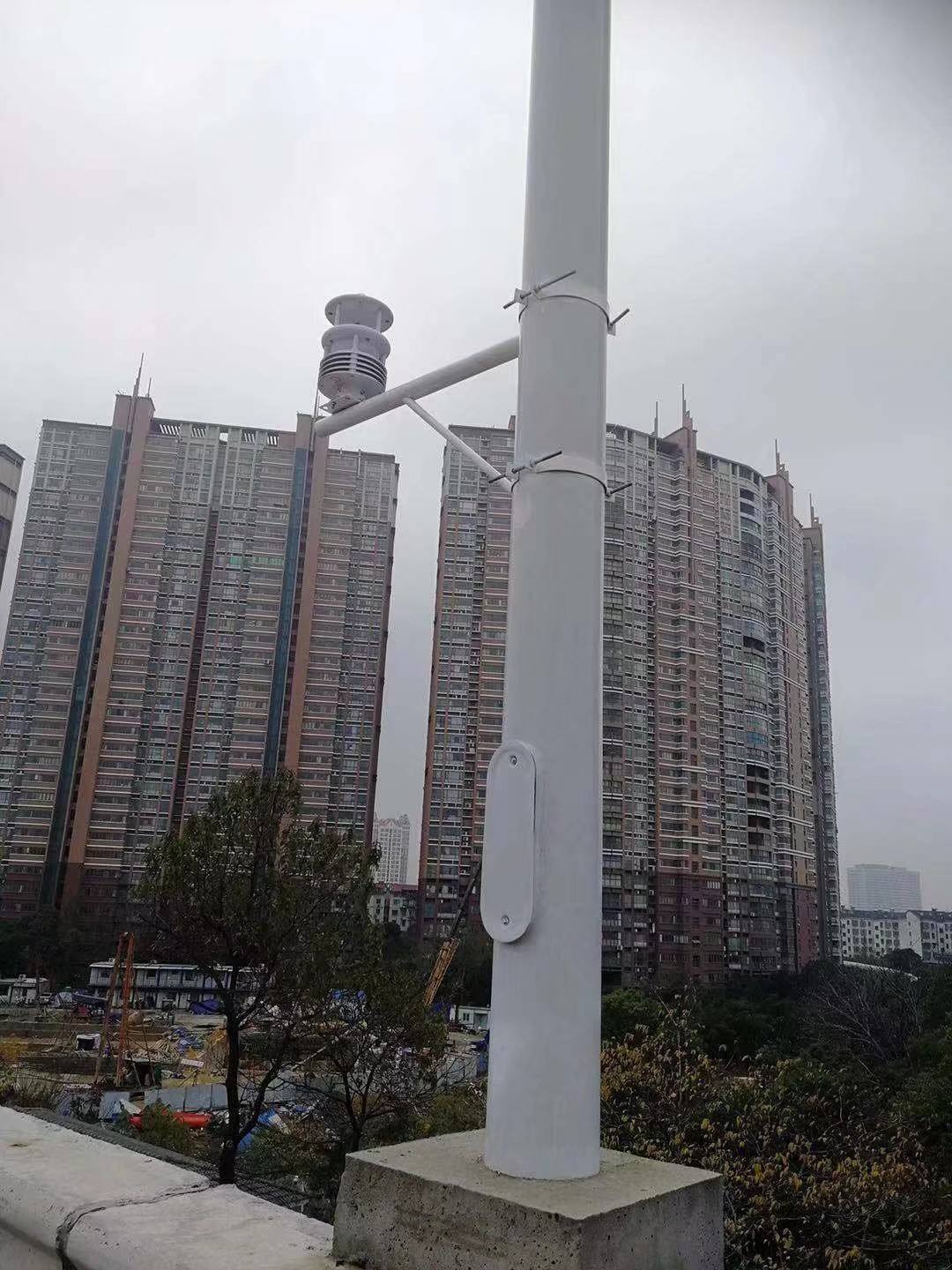

Smart City


Further details , please contact us!
