Key Selling Points
Real-Time Weather Data on the Go – Monitor wind speed, wind direction, temperature, humidity, air pressure, rainfall, PM2.5/10, and visibility all in one compact device.
Magnetic Mounting, Easy Installation – 4 high-strength magnets (rubber padded) for quick and secure attachment to vehicle roofs. No tools required.
Bluetooth Data Transmission – Send live data to your smartphone or laptop via Bluetooth (standard), with optional GPRS remote monitoring.
Long Battery Life – Built-in rechargeable 18650 lithium batteries, supports up to 5+ hours continuous use (extendable).
Ultra-Light & Portable – Only 1.8 kg, comes with a dedicated carry case for easy transport and field deployment.
No Moving Parts, Maintenance-Free – Rugged design with internal heating & electronic compass, works reliably even in extreme cold or harsh environments.
Product Features
1. Magnetic & Tool-Free Installation
Equipped with 4 high-performance magnets (rubber-coated to protect your vehicle), the vehicle weather station can be quickly and firmly attached to the roof of any vehicle — perfect for mobile meteorological measurements without complex setup.
2. Long-Lasting Rechargeable Battery
Powered by 2x 18650 rechargeable lithium batteries, it supports over 5 hours of continuous operation (without rain sensor), and up to 24 hours (optional config). Charging via MICRO USB port.
3. Bluetooth Smart Data Transmission
Equipped with standard Bluetooth module for real-time data transmission to mobile APP or laptop. Optional GPRS module available for remote access (customizable).
️ 4. Multi-Parameter Weather Monitoring
Measures 7+ key environmental parameters including:
Wind Speed & Direction (True & Relative)
Air Temperature & Humidity
Atmospheric Pressure
Rainfall (with snow detection)
PM2.5 / PM10 (optional)
Visibility (optional)
Built-in 3-axis electronic compass & gravity sensor for accurate orientation. Probe includes internal heater to ensure operation in freezing conditions.
️ 5. Maintenance-Free & Durable Design
No moving parts = high reliability & anti-vibration
Heating function ensures performance in extreme cold
Ruggedized for fieldwork, off-road, and harsh environments
6. Lightweight & Travel-Friendly
Application Scenarios

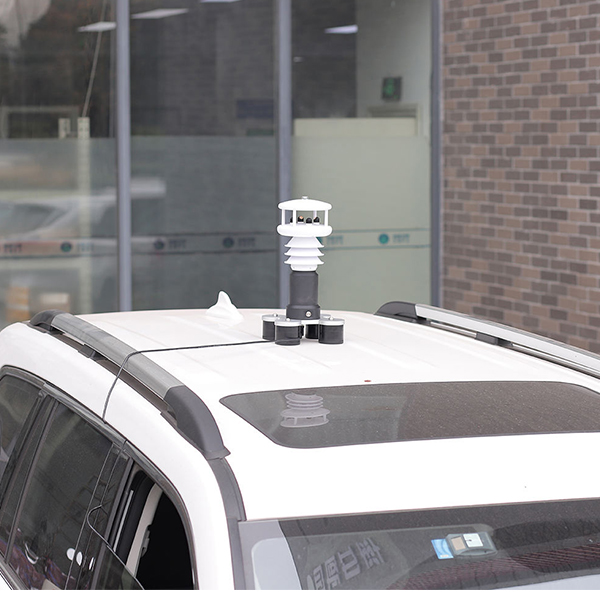

![vehicle carried weather station-bgt]()
✔ Vehicle-Based Field Research – Ideal for geology, ecology, agriculture, forestry, and meteorological field studies.
✔ Emergency & Disaster Response – Provides critical weather data during earthquakes, floods, typhoons, etc.
✔ Traffic & Highway Monitoring – Supports road safety, visibility warnings, and weather-responsive traffic management.
✔ Outdoor Media / Production – Used in filmmaking, live broadcasting, and photography for real-time weather decision-making.
✔ Military & Patrol Use – Mobile weather intelligence for border control and tactical operations.
✔ Adventure & Exploration – Hiking, off-roading, expedition teams relying on accurate, real-time weather updates.
✔ Agriculture & Environmental Studies – Air quality, microclimate, and ecological monitoring.
Technical Specifications
Category |
| Specification |
Signal Output |
| Bluetooth (Standard), GPRS (Optional) |
Power Supply |
| 2x 18650 Rechargeable Li-ion Batteries (Up to 24h operation) / MICRO USB Charging |
Data Storage |
| Internal memory: 1 record per minute, up to 365 days of data |
Dimensions |
| 190 × 174 × 335 mm |
Weight |
| 1.8 kg |
Mounting |
| 4 High-strength magnets (Rubber-coated) |
Operating Environment |
| Suitable for vehicles & outdoor environments |
️ Meteorological Parameters
Parameter | Range | Resolution | Notes |
Air Temperature | -40°C ~ +80°C | 0.1°C | High-accuracy thermistor |
Relative Humidity | 0% ~ 100% RH | 0.1% | Capacitive sensor |
Wind Speed | 0 ~ 60 m/s | 0.1 m/s | True & Relative |
Wind Direction | 0° ~ 359° | 1° | Omnidirectional, electronic compass |
Atmospheric Pressure | 150 ~ 1020 hPa | 0.1 hPa | MEMS capacitive sensor |
Rainfall | 0 ~ 200 mm/h | 0.01 mm | 24G Radar, detects rain & snow |
PM2.5 / PM10 | 0 ~ 1000 μg/m³ | 1 μg/m³ | (Optional) |
Visibility | 20 ~ 10000 m | 1 m | (Optional) |
Position Parameters (Optional)
Parameter | Description |
Latitude / Longitude | GPS / BeiDou Positioning |
Antenna Height | Above Mean Sea Level (MSL) |
Elevation | Geodetic height (Above Geoid) |
Horizontal Accuracy | Positioning accuracy factor (0.5 ~ 99.9, lower is better) |
Moving Speed | Speed over ground in knots or m/h |
Moving Heading | Direction relative to True North (0° ~ 359.9°) |
Package List
Vehicle Weather Station × 1
Dedicated Carrying Case × 1
USB Charging Cable (MICRO USB) × 1
User Manual / Quick Start Guide × 1
Installation Guide / Diagram × 1
(Optional) Software / APP Download QR Code
Purchase Notes / Service
✅ Ships Nationwide (some remote areas excluded)
✅ Technical support & user guidance provided
✅ 1-Year Manufacturer Warranty, lifetime technical assistance
✅ Customization available: communication protocols, power solutions, mounting kits, etc.
Ready to Upgrade Your On-the-Go Weather Monitoring?
Choose Vehicle Weather Station – The Professional, Portable Solution for Dynamic Meteorological Insight.
Contact us for bulk orders, customization, or technical consultation today!
