◀◀ Key Selling Points ▶▶
1. High-Precision Monitoring
Dual detection: Measures leaf wetness (0–100%) and temperature (-50°C to 80°C) with ultra-fine resolution (0.01% for moisture, 0.01°C for temperature). ±3% accuracy (0–50% wetness) and ±0.5°C temperature precision ensure reliable data for pest prevention and irrigation control.
2. Rugged & Weatherproof Design
IP67 waterproof rating withstands harsh outdoor conditions like rain, dust, and extreme temperatures (-40°C to 85°C).
Denser simulated leaf veins (15/cm) detect tiny droplets and ice crystals, mimicking real leaf surfaces.
3. Smart Connectivity & Customization
RS485/RS232/UART outputs with MODBUS-RTU protocol enable seamless integration into IoT systems.
Flexible parameter adjustments: Set baud rates (1200–38400), station addresses (1–255), and user-defined device IDs for multi-sensor networks.
4. Low Power & Fast Response
Peak current <30mA and rapid <1s response time for real-time monitoring.
Supports DC 5–24V power input with wide compatibility for agricultural setups.
5. User-Friendly Calibration
Simple 3-step calibration (0%, 50%, 100%) via pre-defined commands for accuracy maintenance.
Key Features:
Precision Agriculture Tool: 0.01% moisture resolution & ±0.5°C temperature accuracy.
Built to Last: IP67-rated, survives -40°C to 85°C.
Smart Farming Ready: MODBUS-RTU protocol for IoT integration.
Energy-Saving: 30μA standby, 10mA active.Customizable: Adjust baud rates, station IDs, and user tags.
Fast & Efficient: <1s response time, low power consumption.
◀◀ Product Parameters ▶▶
Item No. | BGT-FWS1 |
Measuring Range | 0-100% |
Unit | 100% |
Output | -50～100℃ |
Resolution | 0.1℃ |
Output Signal | 0-2V / 0-5V |
Accuracy | ±3%（0-50%）；±5%（>50%） |
Principle | Capacitance Measurements |
Power Supply | 2～5VDC（Max 6V）or 5～24V（Max 26.7V） |
Working current | Peak<30mA, average<10mA |
Working environment | Temperature -40℃～85℃; Humidity≤100%RH (No condensation) |
Ingress Protection | IP67 |
Response Time | <1s |
Stabilization Time | 2s |
Cable Length | 3.5m(Standard); others for optional |
◀◀ Application Scenarios ▶▶
◆◆ Applications:
Crop disease prevention
Smart irrigation systems
Greenhouse climate control
Forestry and environmental research
◆◆ Installation

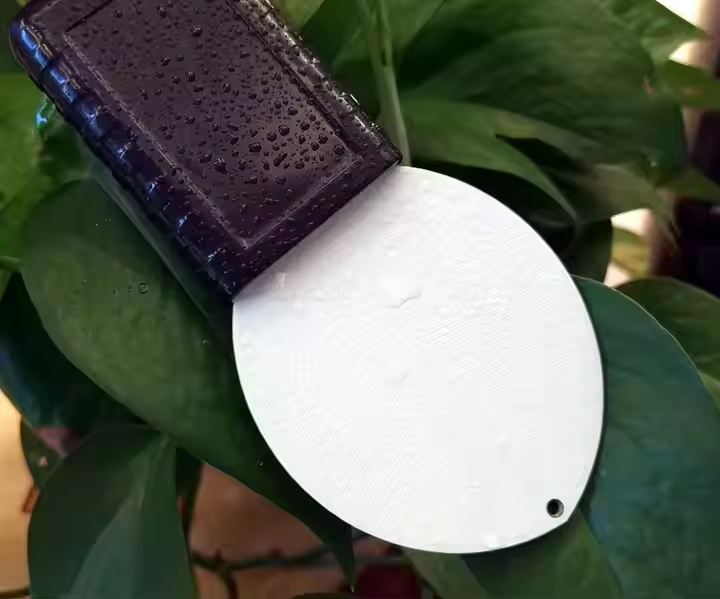

The sensor is fixed near the plant according to the tilt Angle of the plant leaf(Foliar) surface. The area with white leaf(Foliar) veins is the sensor's sensing area, which must receive the same spraying, foliar fertilization and moisturizing operations as the plant leaf(Foliar) surface to ensure the accuracy of the measurement.
◆◆ Maintenance
If too much dust or water is deposited on the sensor's white veined surface, spray it with clean water or gently wipe it with a clean wet cloth.To ensure accurate measurement.
◆◆ Attention in Use
1) Black wire and white wire should be connected together when using.
2) Do not pull the lead wire of the sensor forcibly, and do not beat or hit the sensor violently.
3) Avoid scratches on the sensor surface.
4) The sensor protection level is IP67, which can be sprayed and soaked in water for a short time.
