Visibility Sensor Affordable Clarity for Safer Journeys And Operations

Share to:
facebook sharing button
twitter sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button

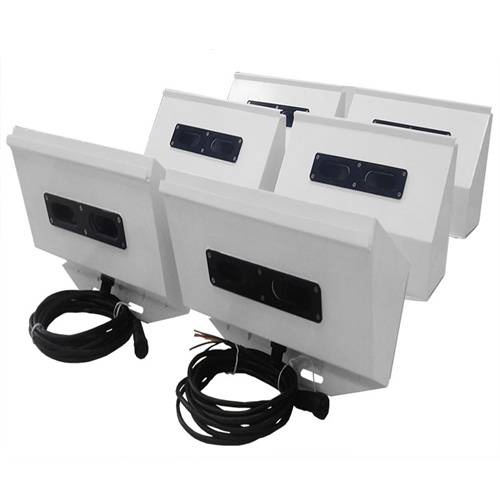

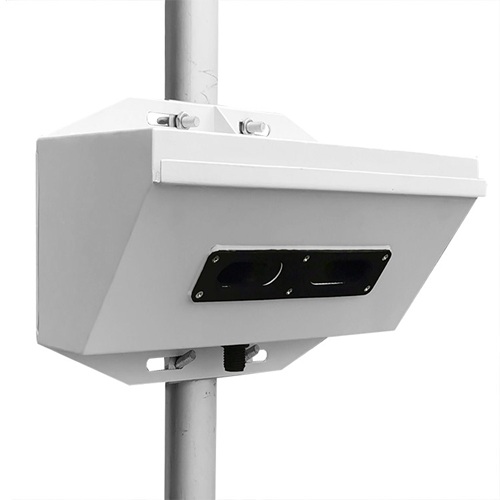

BGT-VS(H1)is a low cost visibility sensor working based on forward scattering principle developed by OUR COMPANY. Main application is for traffic purposes. Aluminum alloy shell with spray-powder make it will never rust, applicable to drilling platforms, ships, highways and other transport sector.
Using so called forward-scattering technique it measures the amount of particles in the air that limit the visibility. It emits pulses of infrared light and measures the intensity of the forward-scattered light of the suspended particles in the atmosphere, using suitable algorithms to convert the measurements to meteorological visibility values.
Availability:
Inquire


◀◀  Key Selling Points  ▶▶


· Cost-Effective Solution

  • Competitive pricing for budget-conscious projects without compromising core functionality.

  • Ideal for applications where ultra-high precision (±20%) is sufficient.

· Compact & Lightweight Design

  • 1.8 kg weight and 300x115x140mm dimensions enable easy deployment in space-constrained environments.

· All-Weather Durability

  • Integrated heater and IP65 protection ensure reliable operation in extreme temperatures (-50°C to +50°C) and harsh conditions

·Versatile Output & Connectivity

  • Simple installation (one-person setup) and low maintenance.

· Long Power Consumption

  • Only 6W power draw (12-24VDC), reducing operational costs.

· Wide Application Scope

   Rust-proof aluminum alloy shell suits marine, industrial, and transport environments


◀◀  Product Parameters  ▶▶


Range

10-3000m

Power supply

12-24VDC

Accuracy

±20%

Power consumption

6W

Communication

RS232,RS485

Operating Temp.

-50℃~+50℃

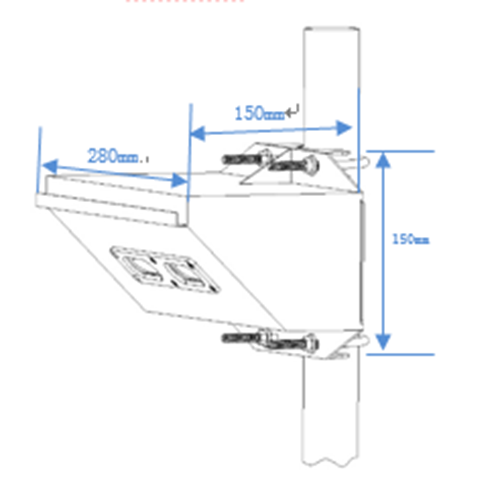

Dimension

300*115*140mm

Operating humidity

0~100%

Weight

about 1.8kg

Protection Class

IP65

MTBF

5 years

Warranty Period

2 years



◀◀  Application Scenarios  ▶▶


  1. Road & Highway Safety:

    • Monitor visibility for tunnels, bridges, and smart highways to trigger fog warnings or speed limit adjustments.

  2. Marine & Offshore Operations:

    • Ensure safe navigation for ships, oil rigs, and ports in foggy or dusty conditions.

  3. Urban Traffic Management:

    • Deploy in smart city systems to optimize traffic flow during low-visibility events.

  4. Basic Weather Monitoring:

    • Affordable solution for small-scale weather stations or environmental networks.

  5. Construction & Mining:

    • Track dust and particulate levels to enhance worksite safety.
