SN200 LoRaWAN Solar Energy Node

1. Legacy-to-IoT Bridge: Unlocks IoT potential for traditional sensors.
2. Power Autonomy: Solar/battery options ensure 24/7 operation in off-grid areas.
3. Enterprise Scalability: Multicast management simplifies large-network deployments.
4. The SN200 LoRaWAN Solar Energy Node is ideal for industries transitioning to IoT, prioritizing backward compatibility, ruggedness, and scalability. is ideal for industries transitioning to IoT, prioritizing backward compatibility, ruggedness, and scalability.

Availability:



Inquire

LoRaWAN Solar Energy Node

Key Selling Points

Product Parameters

Application Scenarios

◀◀ Key Selling Points ▶▶

1. Superior Protection & Wide Environmental Adaptability: IP67 rating for the main unit and IP68 for sensors, enabling dustproof and waterproof performance; Operates stably in -20°C ~ 60°C temperature range and 0%-100% humidity (non-condensing) environment.

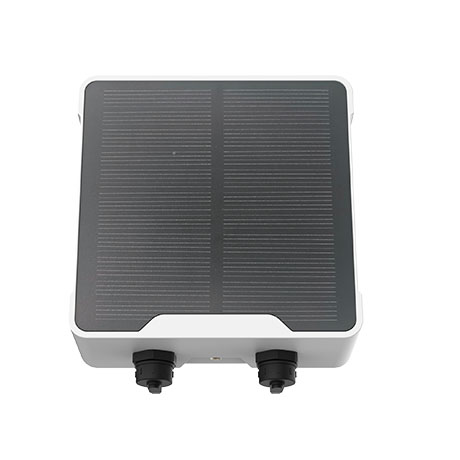

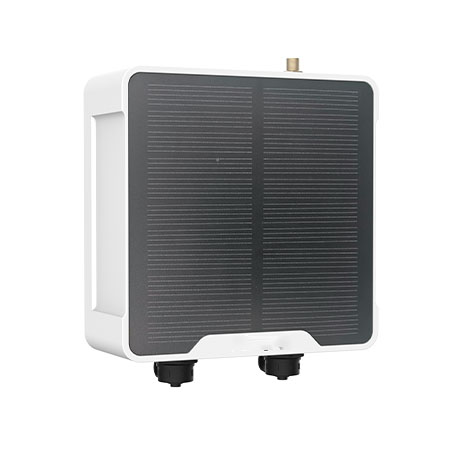

2. Long-Lasting Battery Life & Reliable Power Supply: Built-in rechargeable 3.7V/4400mAh battery with ultra-low power consumption for long standby time; Equipped with 6V, 2W solar panel power supply, supporting hybrid power mode to ensure continuous operation.

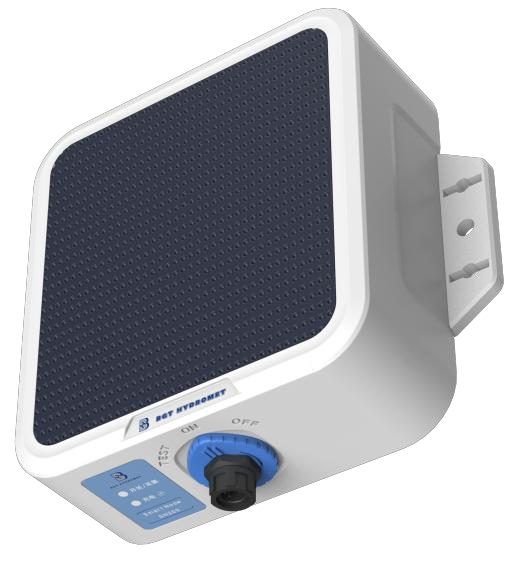

3. Easy Operation & Flexible Installation: Instant connection on power-up and plug-and-play design for hassle-free use; Supports wall-mounted or pole mounting methods; Features water-drop rotating button for convenient operation.

4. Excellent LoRaWAN Communication Performance: Complies with standard LoRaWAN® protocol, supporting EU868/US902/AU915/AS923 frequency bands; Maximum transmit power up to 22dBm and high sensitivity of -142dBm (SF=12, BW=125kHz); Supports OTAA/ABP Class A activation modes.

5. Intelligent Data Acquisition & Remote Management: One-key data reporting, with collection sound and light indicators; Adopts adaptive encryption for data reporting to ensure information security; Supports remote configuration for efficient device management.

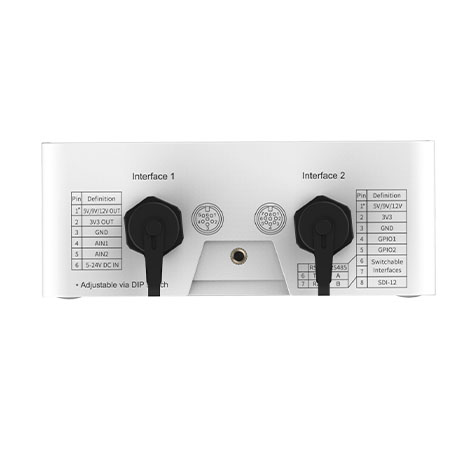

6. Practical Interface & Compact Design: Equipped with RS485 interface for easy integration with various sensors; Compact size of 144×134×52mm, suitable for various installation scenarios; 3m cable length for flexible deployment.

◀◀ Product Parameters ▶▶

Key Parameters	Parameter Indicators	SN200
Wireless Parameters	Communication Protocol	Standard LoRaWAN ® agreement
	Operating Frequency Band	EU868/US902/AU915/AS923
	Transmit Power	Maximum support : 22dBm
	Receiving sensitivity	-142dBm（SF=12，BW=125kHz）
	Network access/working mode	OTAA/ABP Class A
Switch & Configuration	Switching method	Water droplet button rotation
	Configuration Mode	Power on instant connection, one click reporting, remote configuration
	Software features	Collecting sound and light indicators, adaptive encryption reporting
Physical Characteristics	Lead length	3m
	Power supply method	Powered by solar panel (6V, 2W)+3.7V/4400mAh battery
	Operating Temperature	-20°C ~60°C
	Relative Humidity	0%- 100%
	Protection level	IP67，IP68
	Size	144×134×52mm
	Installation Mode	Wall-mounted or Pole-mounted Installation
