◀◀ Key Selling Points ▶▶

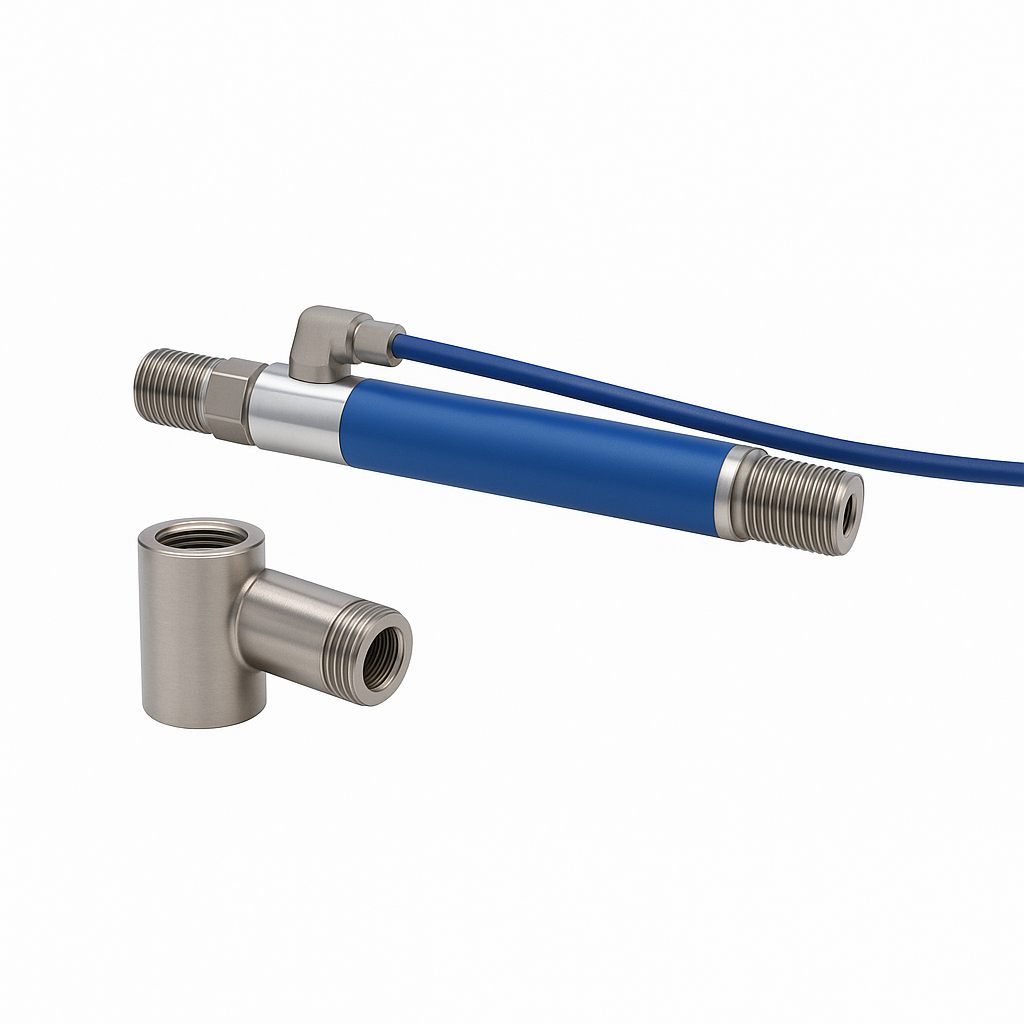

✅ Ultra-Precise Monitoring
Resolution: 0.05% FS | Nonlinearity: ≤1% FS (linear) / ≤0.5% FS (polynomial).
Detects micro-strain changes in steel bars and anchor rods with unmatched sensitivity.
✅ Robust & Waterproof Design
IP68-rated sealing withstands custom hydrostatic pressures (2–3+ MPa).
Operates reliably in extreme temperatures (-20°C to +80°C).
✅ Versatile Compatibility
Available diameters: 12–40mm (varies by load range).
Compatible with high-strength threaded steel (300/400 MPa standard ranges).
✅ Temperature Compensation
Built-in sensor eliminates thermal drift for accurate, stable readings.
✅ Plug-and-Play Installation
Supports optional accessories: threaded sleeves and 350mm connecting bars for seamless integration.
◀◀ Product Parameters ▶▶
| Parameter | Specification |
|---|---|
| Standard Range | 300 MPa, 400 MPa (high-strength threaded steel) |
| Non-linearity | ≤1% FS (linear) / ≤0.5% FS (polynomial) |
| Resolution | 0.05% FS |
| Operating Temp. | -20°C to +80°C |
| Water Pressure | Customizable (2 MPa, 3 MPa, or higher) |
| Diameter Options | 300 MPa: 12–40mm (10 sizes) 400 MPa: 16–40mm (8 sizes) |
Note: Prolonged overloading beyond the rated range is prohibited.
Optional Accessories
Threaded rebar sleeves
350mm connecting reinforcement bars
◀◀ Application Scenarios ▶▶

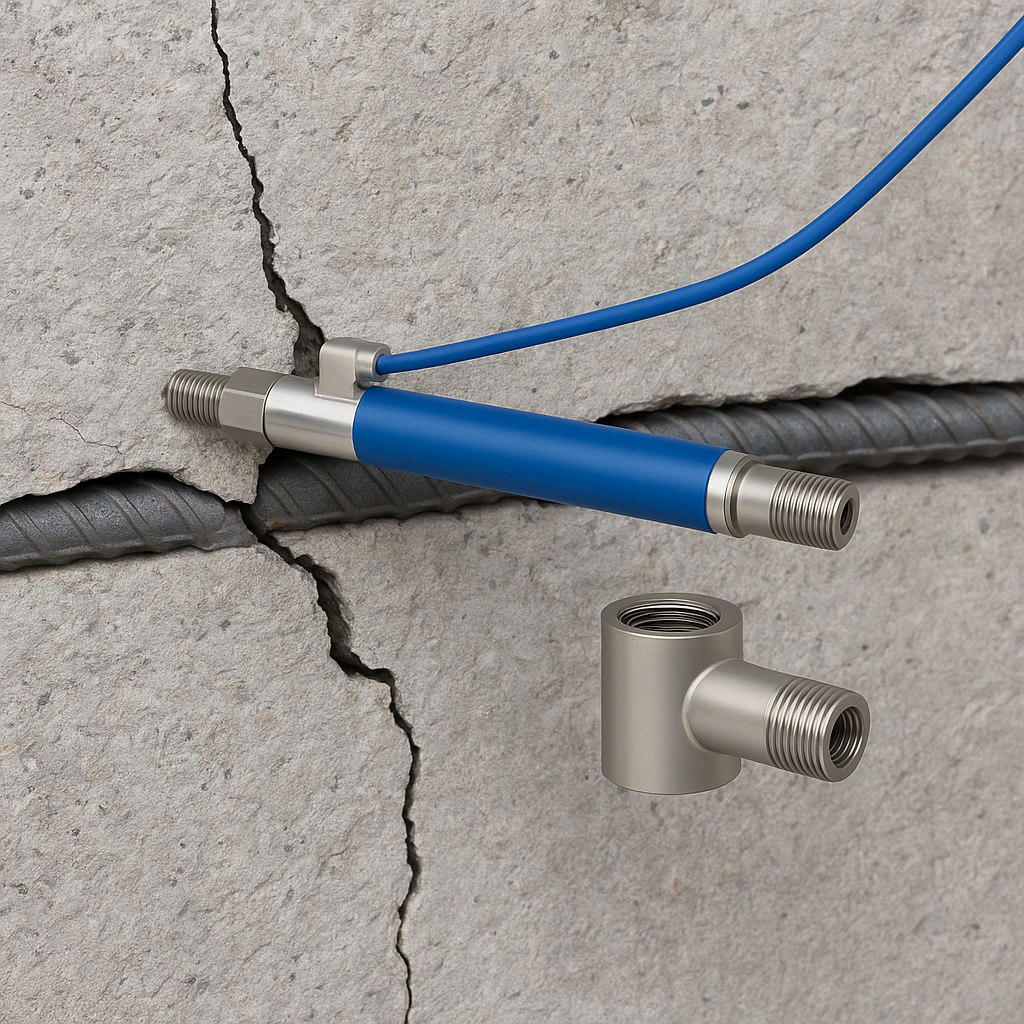

Concrete Structure Health Monitoring
Track stress in bridges, dams, and high-rise buildings to prevent reinforcement fatigue.
Slope & Retaining Wall Stability
Monitor anchor rod stress in landslide-prone areas for early risk mitigation.
Tunnel & Underground Engineering
Ensure safety of shield tunnel segments or mining support systems.
Industrial Infrastructure
Assess steel frame integrity in factories, power plants, and offshore platforms.
For further details, please contact us!
