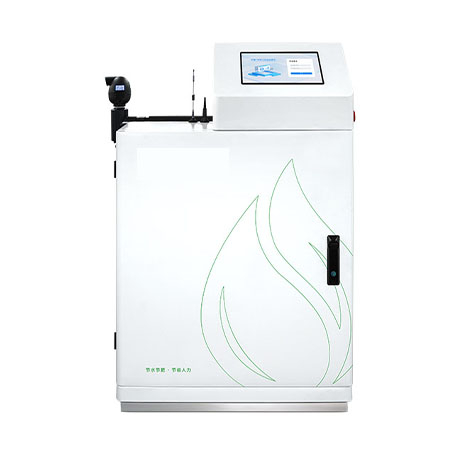

Bypass Type Intelligent Fertilizer Applicator for Intelligent Fertilizer-Irrigation System

Bypass Type Intelligent Fertilizer Applicator for Intelligent Fertilizer-Irrigation System

This smart fertilizer-irrigation system integrates a self-developed controller, gateway module, EC/pH sensors, and high-frequency solenoid valves. Utilizing Venturi tube suction and electromagnetic valve auto-regulation, it ensures precise water-fertilizer mixing ratios. The system features a 10.1-inch HD touchscreen for configuring multiple irrigation modes, zoning management, and remote monitoring. Designed for efficiency and sustainability, it minimizes water/fertilizer waste while reducing environmental pollution.

Availability:



Inquire

Key Selling Points

Product Parameters

Application Scenarios

◀◀ Key Selling Points ▶▶

Industrial-Grade Durability

Chemical-grade UPVC pipes: Corrosion-resistant, anti-aging, and deformation-proof for long-term reliability.
304 stainless steel frame: Robust construction for harsh agricultural environments.

Maintenance-Free Design

Venturi suction technology: No moving parts or external power required, ensuring near-zero maintenance.

Precision & Flexibility

Multi-channel fertilization: Supports 5 fertilizer channels (default) or 4+1 acid-fertilizer configuration.
EC/pH auto-calibration: 0.1 ms/cm accuracy with 40-second stabilization time.

Smart Automation

64 programmable irrigation routines: Customizable timing, dosage, and zone-specific schedules.
20+ fertilizer recipes: Auto-execute predefined formulas for consistent crop nutrition.

Real-Time Monitoring & Safety

Abnormal alerts: Detects valve/EC/pH faults, pump cavitation, and filter clogs.
Auto-shutdown protection: Triggers during pump overload, blockages, or low flow rates.

User-Friendly Interface

10.1-inch capacitive touchscreen: Intuitive controls with clear visualization of irrigation data.
Remote management: Operate via mobile/PC apps for 24/7 oversight.

◀◀ Product Parameters ▶▶

Category	Specifications
Main Unit
Dimensions	778mm (L) × 858mm (W) × 1263mm (H)
Weight	125kg
Power Supply	AC 380V 50Hz
Power Consumption	2.5kW
Inlet/Outlet	DN40
Type	Bypass
Hardware
Interface	10.1-inch HD capacitive touchscreen
Frame Material	304 stainless steel
Pipes	Chemical-grade UPVC
Fertilizer Pump	Stainless horizontal pump (2.2kW/8m³/55m)
Sensors	High-precision EC/pH sensors, float + turbine flow meters
Fertilization
Injection Method	High-frequency solenoid valves + Venturi tube
Channels	5 fertilizer (default) or 4 fertilizer + 1 acid
Max Capacity per Channel	600L/h
Working Pressure	1–5 bar
Mixing Precision	0.1 ms/cm
Valve Control
Controller Type	Wireless/bus/multi-wire
Max Expansion Points	512
Programmable Valves	64 routines
Activation	Timer-based

◀◀ Application Scenarios ▶▶

Large-scale farms: Optimize water-fertilizer use across vast fields.
Greenhouses: Tailor irrigation for high-value crops (e.g., fruits, vegetables).
Precision agriculture: Data-driven nutrient management for soil health.
Eco-friendly projects: Reduce runoff pollution in sensitive ecosystems.
Organic farming: Ensure precise, chemical-free fertilization.
