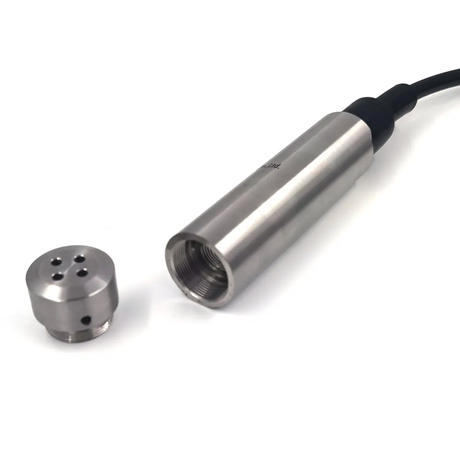

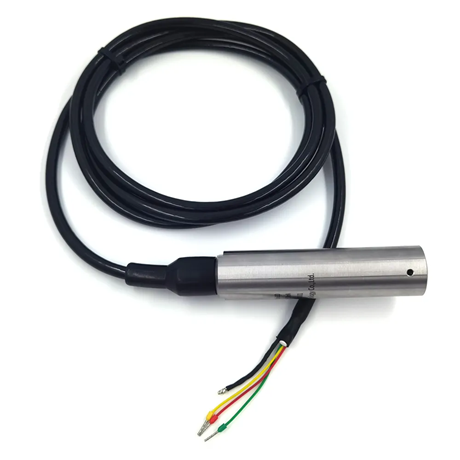

GX-701P Φ27mm Corrosion-Resistant Submersible Level Transmitter

GX-701P series level sensor adopts high performance diffused silicon piezoresistive pressure sensor as
the measuring element series pressure transmitter is a high reliability, high- stability, high accuracy and
small volume level transmitter with part structure. Widely used in measurement liquid pressure and
height in small inside diameter pump as well as level height of liquid reservoir, such as water, oil and
mild corrosive liquid.
Availability:
Quantity:
Inquire


◀◀  Key Selling Points  ▶▶


  1. Multi-Output Flexibility: Choose from 4–20mA, 0–10V, RS485, I2C, Hart, and more for seamless integration with diverse systems.

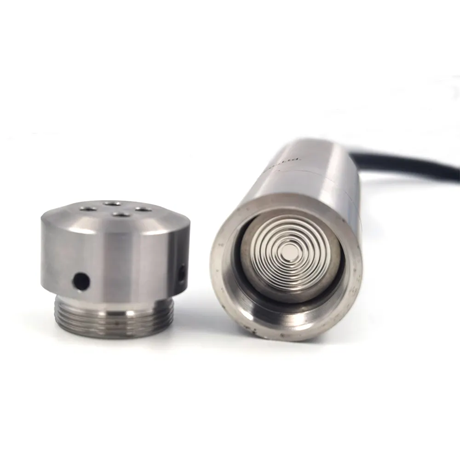

  2. Robust Durability: Fully welded 316L stainless steel diaphragm and anti-corrosion shell (optional materials available) ensure longevity in harsh environments.

  3. High Accuracy & Stability: Up to 0.1%FS precision (optional), ±0.03%FS/℃ temperature drift, and ≤0.2%FS/year long-term stability for reliable measurements.

  4. Wide Measurement Range: Covers 0–300mH₂O (gauge/absolute pressure) with overload protection up to 500mH₂O.

  5. Rugged Performance: Shock-resistant (10g), impact-resistant (500g), and operates in extreme temperatures (-40℃ to 125℃).

  6. Fast Response: Boot time as low as 10ms (optional) and response time down to 1ms for real-time monitoring.




◀◀  Product Parameters  ▶▶


Measuring Range

0-10m(100m, 200m, 300m available)

Accuracy

0.5%FS(standard); 0.25%FS; 0.1%FS(optional)

Working temperature

-20℃～85℃;   -40℃～125℃(optional)

Working pressure

＜0.1MPa

Power supply

DC 8…30V

Signal output

4~20mA(default);   DC 0…5V; 4…20mA+RS485(optional)

Wetted material

304SS and 316L stainless steel

Response Time

10ms ;    1ms(optional)

Protection grade

P68




◀◀  Application Scenarios  ▶▶


  • Water Management: Level monitoring in dams, deep wells, water treatment plants, and irrigation systems.

  • Industrial Use: Corrosive liquid measurement in chemical plants, oil storage, and sewage disposal facilities.

  • Environmental Monitoring: Flood control systems and reservoir level tracking.

  • Compact Installations: Ideal for small-diameter pumps or confined spaces due to its Φ27mm probe design.
