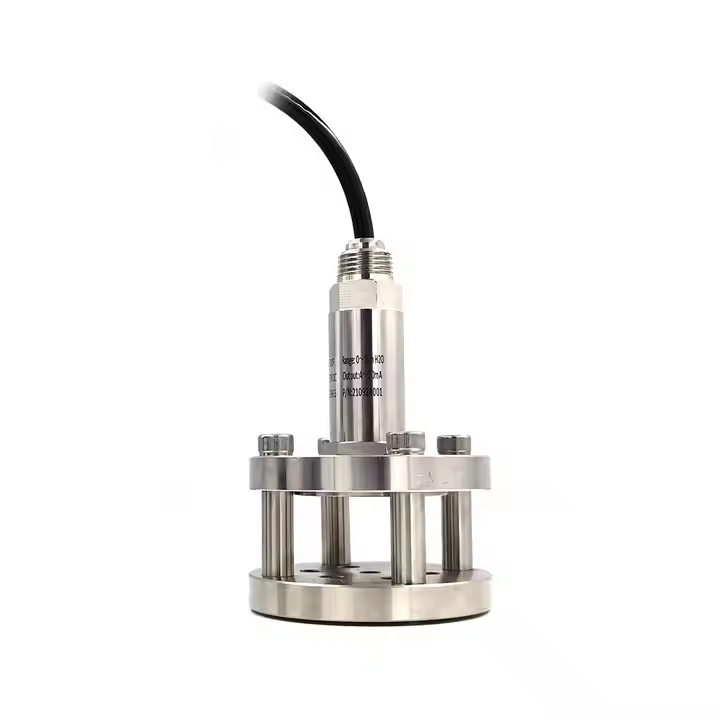

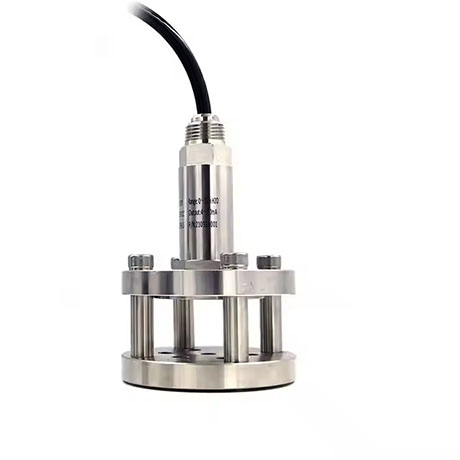

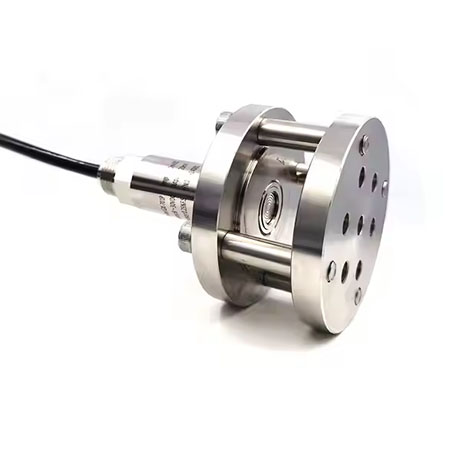

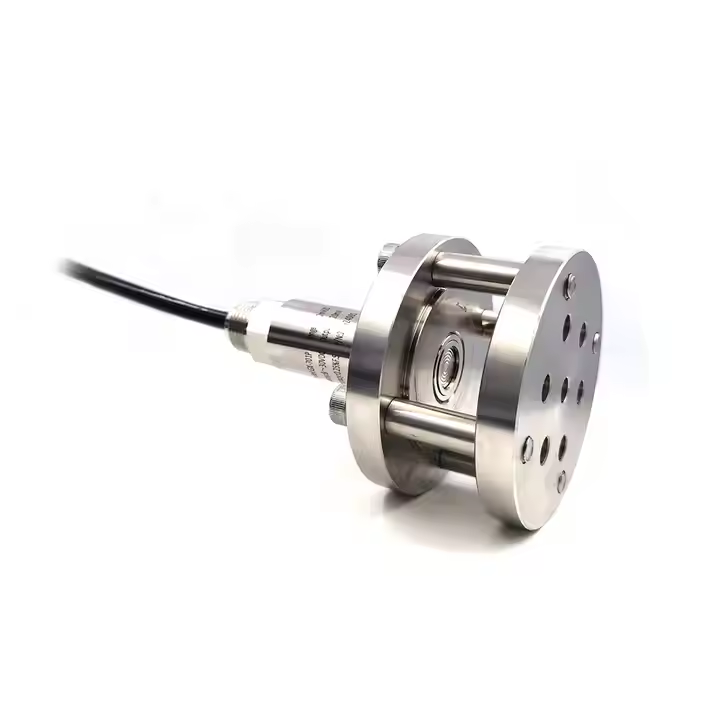

GX-701P Sludge Level Transmitter

The GX-701P series sludge level transmitter (specifically for sewage and sludge) is based on the principle that the static pressure of the measured liquid is directly proportional to the height of the liquid. The product uses the piezoresistive effect of ceramic sensitive components to convert static pressure into an electrical signal. Combined with a dedicated digital circuit, it undergoes signal processing such as signal amplification, linear compensation, anti-interference, and surge protection. An integrated product that outputs industrial standard signals

Availability:



Inquire

Key Selling Points

Product Parameters

Application Scenarios

◀◀ Key Selling Points ▶▶

◆ Wide measurement range: 0-10m - 100mH2O;

◆Multiple output signals are available for selection;

◆ Anti-interference and surge protection;

◆ Ceramic diaphragm, anti-corrosion;

◆ Lightning protection, in compliance with IEC61000-4-5/Level-4 standard;

Water Level Transmitter

◀◀ Product Parameters ▶▶

Parameter	Specifications
Measuring Range	0~3m / 0~5m / 0~50m / 0~100m (optional)
Accuracy	0.5% FS (customizable to 0.2% FS and 0.1% FS)

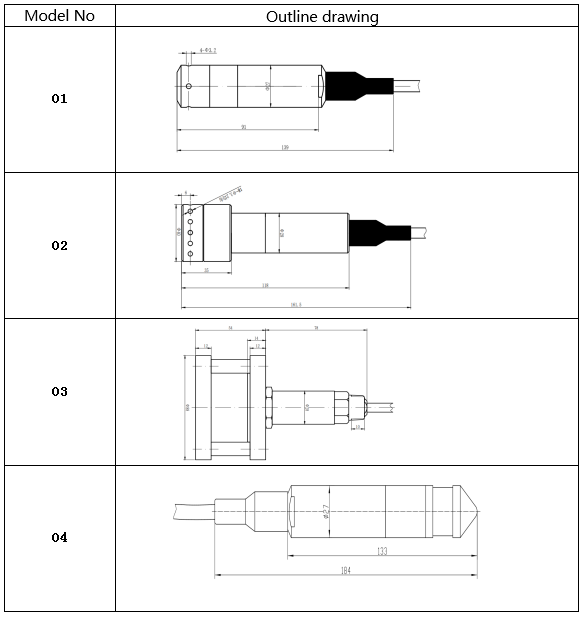

Probe Diameter	27mm / 22mm / 19mm / 16mm / 13mm (optional)
Diaphragm Material	Al₂O₃
Shell Material	316L / 304SS
Cable Material	PUR / PE / PTFE / PVC
Power Supply	DC8~30V; DC3~5V (optional)
Output	4~20mA / 0~10V / 0~5V / 1~5V / 0.5~4.5V / 0.5~4.5V (Ratio) / 4~20mA+Hart / 4~20mA+RS485 / RS485 / I2C

◀◀ Application Scenarios ▶▶

Water Management: Level monitoring in dams, deep wells, water treatment plants, and irrigation systems.
Industrial Use: Corrosive liquid measurement in chemical plants, oil storage, and sewage disposal facilities.
Environmental Monitoring: Flood control systems and reservoir level tracking.
