Revolutionize Water Level Monitoring with The BGT-RD101 Radar Level Sensor

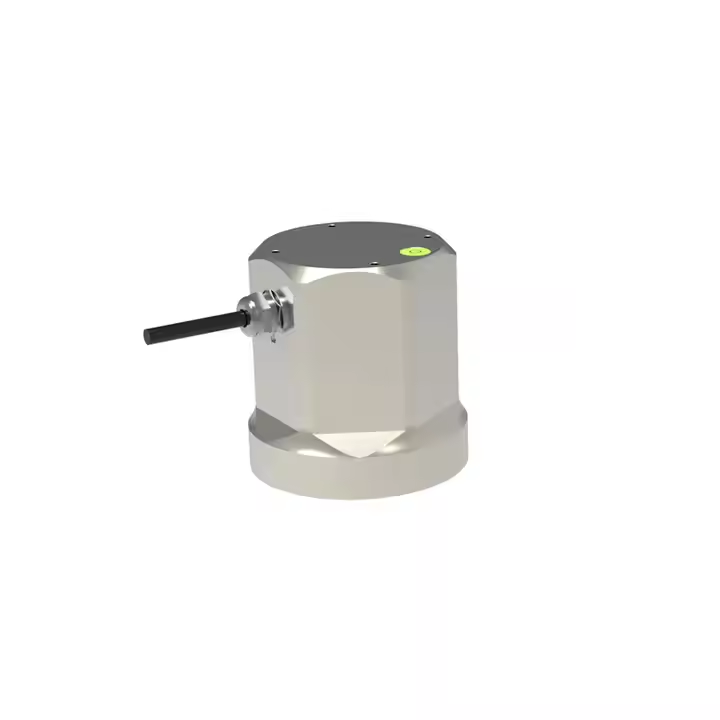

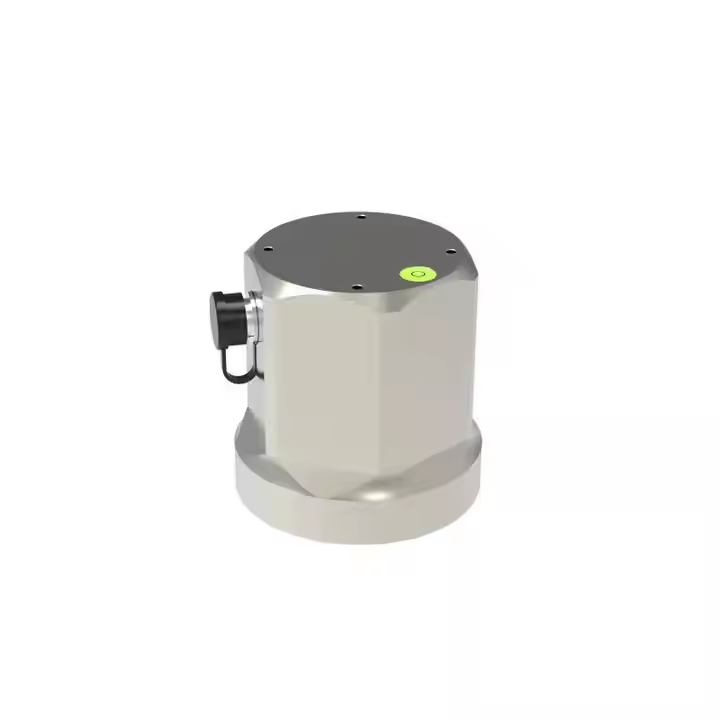

BGT-RD101 radar level transmitter is using pulse coherent radar (PCR) technology, it has higher measurement accuracy, lower power consumption and ultra-small volume compared with traditional pulse radar level transmitter. Using 60G submillimeter radar wave as carrier signal, it has the characteristics of high accuracy, small volume and energy saving, and the measurement process is not affected by temperature, air pressure and mud Sand, dust, river pollutants, floating objects, air and other environmental factors; the optimized algorithm makes the measurement results more accurate and stable.
This product has three standard physical circuit interfaces: RS485 / RS232 / wireless, 4-20mA; the equipment adopts standard Modbus RTU protocol, 4G, NB-IOT; in order to meet the personalized needs of customers, the company also provides customized protocol. The wireless data transmission function (optional) of this product can be selected in the harsh environment with difficult wiring.
This manual details the use and maintenance of BGT-RD101 radar water level meter.

Availability:



Inquire

Radar Level Transmitter radar water level transmitter water level transmitter radar hydrostatic level transmitter water tank monitor Guided Radar Level Transmitter

Key Selling Points

Product Parameters

Application Scenarios

◀◀ Key Selling Points ▶▶

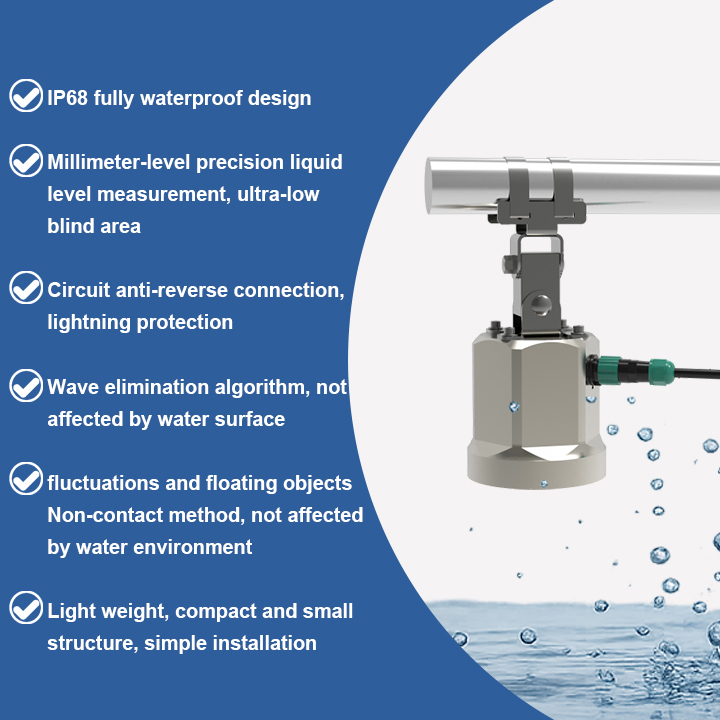

1. High Accuracy & Stability: Utilizes 60GHz submillimeter radar wave technology, ensuring high precision and stability in measurements, unaffected by environmental factors like temperature, humidity, or pollutants.

2. Compact & Lightweight: Small size (56x56x64.2 mm) and lightweight (less than 300g), making it easy to install in various environments, including bridges and cantilevers.

3. Low Power Consumption:Operates on a wide power supply range (7-32V DC), with a low power consumption mode (less than 0.5mA at 12V), suitable for solar-powered applications.

4. Non-Contact Measurement: Non-contact measurement ensures no interference with the measured medium, making it ideal for water level monitoring in rivers, channels, and pipelines.

5. Multiple Communication Interfaces: Supports RS485, RS232, 4-20mA, and optional wireless communication (4G, NB-IOT), providing flexibility for different industrial applications.

6. IP68 Waterproof Rating: Highly durable and resistant to harsh environments, ensuring long-term reliability in outdoor and underwater applications.

7. Customizable Protocols: Offers standard Modbus RTU protocol and customizable communication protocols to meet specific customer needs.

8. Wide Measurement Range: Available in multiple models with measurement ranges from 0.2m to 40m, catering to various industrial and environmental monitoring needs.

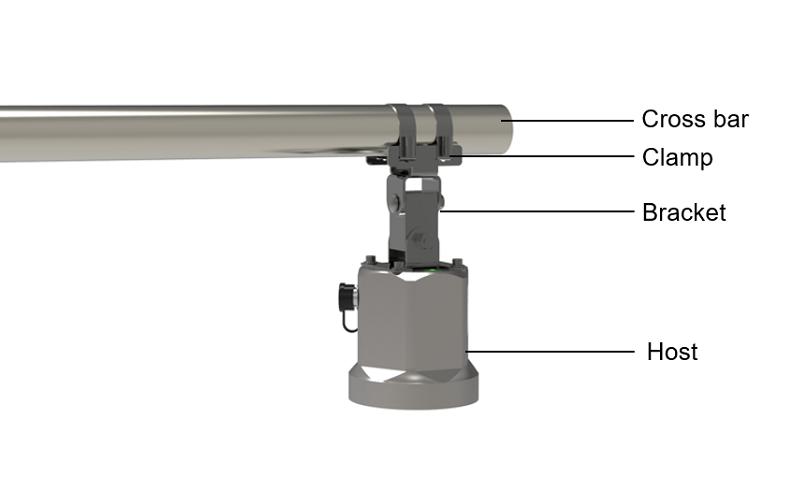

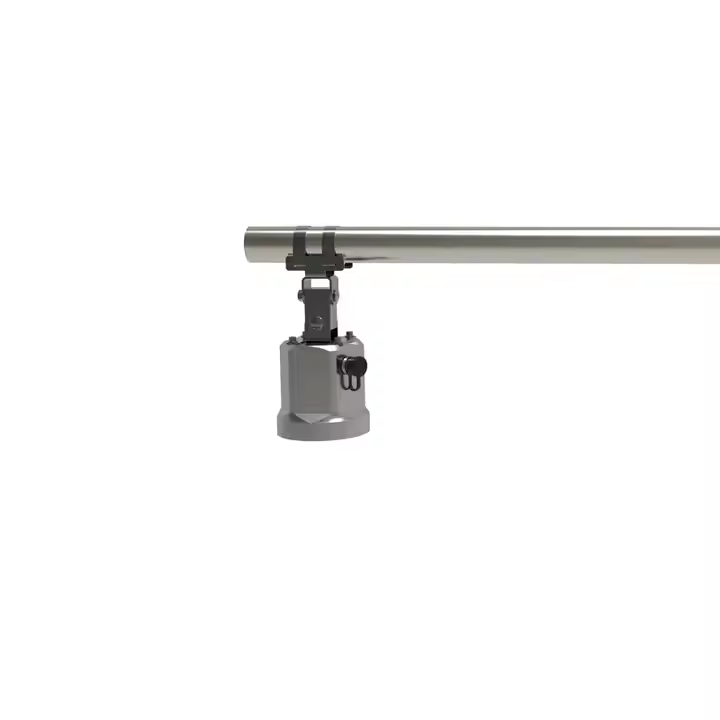

9. Easy Installation & Maintenance: Simple installation process with minimal maintenance required, reducing operational costs.

10. Lightning Protection: Equipped with a 6KV lightning protection circuit, ensuring safety during thunderstorms.

◆◆ Why Choose BGT-RD101?

Compact & Lightweight: Easy to install in various environments, from bridges to underground pipelines.
Customizable Protocols: Tailor the sensor to meet your specific needs with customizable communication protocols.
Lightning Protection: Stay safe during thunderstorms with a built-in 6KV lightning protection circuit.

◀◀ Product Parameters ▶▶

Model number	BGT-RD101
Output	RS485 (Optional 4-20mA, RS232)
Measuring Range	0.2~10m
Shell Material	Aluminum Alloy
Accuracy	±2mm
Radar frequency	80GHz
Power supply	DC7~32V (DC5.5-32V Optional)
Working Temperature	-40℃-85℃

The BGT-RD101 Radar Level Sensor is your ultimate solution for accurate and reliable water level monitoring. With cutting-edge 60GHz submillimeter radar technology, this compact and lightweight sensor delivers unmatched precision, unaffected by environmental factors like temperature, humidity, or pollutants. Whether you're managing flood control, monitoring industrial tanks, or conducting hydrological research, the BGT-RD101 ensures you get the data you need, when you need it.

◀◀ Application Scenarios ▶▶

1. Water Level Monitoring in Rivers and Canals: Ideal for flood control, irrigation, and water resource management in open channels and rivers.

2. Underground Drainage Systems: Suitable for monitoring water levels in underground drainage networks and pipelines.

3. Industrial Tank Level Monitoring: Can be used in industrial settings to monitor liquid levels in tanks, ensuring efficient resource management.

4. Environmental Monitoring: Effective for monitoring water levels in lakes, reservoirs, and other natural water bodies, aiding in environmental conservation efforts.

5. Rainwater Harvesting Systems: Useful in rainwater harvesting systems to monitor water levels in storage tanks.

6. Hydrological Research: Suitable for hydrological research and data collection in various water bodies.
