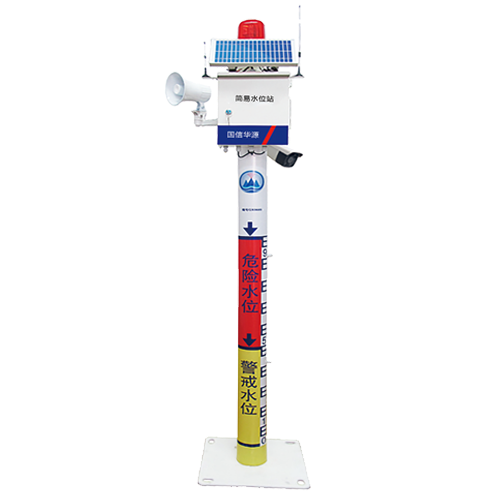

Simple Water Level Station

The Simple Water Level Station is an integrated monitoring and early-warning solution that combines capacitive water immersion sensors with IoT communication technology. Equipped with three alert-level sensors (Safety Caution, Prepare to Evacuate, Immediate Evacuation), the device is deployed at key river control sections to monitor real-time water levels and issue warnings based on flood thresholds.

This station can be paired with our Electronic Water Gauge, Tipping Bucket Rain Gauge, and Image Camera to enable comprehensive rainfall and water level monitoring. Data is transmitted via network connectivity, with regular automated reporting to a central platform.
Featuring LoRaMesh™ (a proprietary wireless communication technology by Guoxin Huayuan), the device supports local self-forming mesh networks for instant alerts. It can integrate with our multi-power-level alarm systems to create a "One-Site-Monitoring, Multi-Point-Alert" network, enhancing community-wide disaster response.

Ideal for:
Mountain torrent/flood early warning
Urban waterlogging monitoring

Availability:



Inquire

Key Selling Points

Product Parameters

Application Scenarios

◀◀ Key Selling Points ▶▶

✔ Multi-Sensor Integration

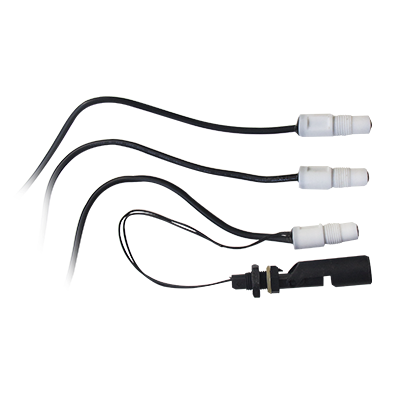

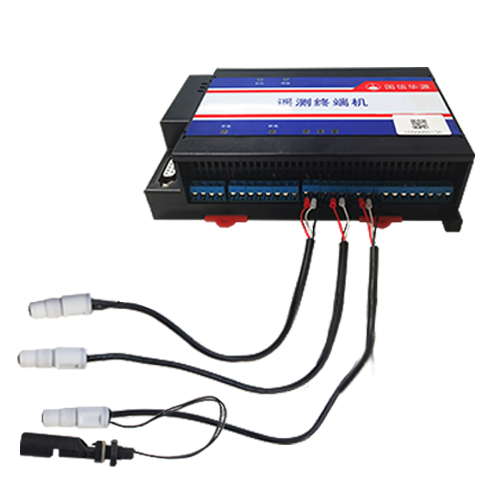

Supports 3-level water immersion sensors or Electronic Water Gauge for precise level detection.
Compatible with Tipping Bucket Rain Gauge for rainfall measurement.
Optional Image Camera for visual verification.

✔ Smart Data & Alerts

Dual reporting modes: Scheduled uploads + On-demand queries.
Rainfall-triggered alarms: Customizable thresholds for 2 alert levels across 5 time periods.
Localized alerts: Real-time relay of data to multiple household alarms (e.g., sirens, strobes).

✔ Reliable Power & Connectivity

Solar-powered with built-in charge controller for off-grid operation.
LoRaMesh™ technology ensures robust, long-range communication even in remote areas.

✔ Scalable Safety Network

Syncs with peripheral alarms (e.g., LED displays, loudspeakers) for community-wide warnings.

◀◀ Product Parameters ▶▶

Category	Details
Sensors	3-level capacitive water sensor / Electronic Water Gauge (optional)
Rainfall Input	Tipping Bucket Rain Gauge (0.5mm resolution)
Camera Support	JPEG image capture (time-lapse or event-triggered)
Communication	LoRaMesh™ (2-5km range), 4G/5G (optional)
Data Reporting	Timed upload (adjustable interval) + Instant query response
Alerts	2 rainfall thresholds, 5 time slots; Output to 10+ linked alarm devices
Power Supply	10W solar panel + 12V/24Ah battery (7-day backup)
Environment	IP67 enclosure, -20°C to +60°C operation

◀◀ Application Scenarios ▶▶

1. Mountain Torrent Warning

Deployed in upstream river sections to trigger village alarms before flash floods.

2. Urban Flood Control

Monitors drainage systems and low-lying roads, activating public alerts via connected sirens.

3. Reservoir Safety

Integrates with dam management systems to provide real-time overflow risk data.

4. Rural Community Protection

Mesh-network alarms ensure remote villages receive evacuation notices without cellular coverage.

Why Choose This Product?
→ Modular design for flexible sensor combinations.
→ Zero-configuration networking for rapid deployment.
→ Government-certified for disaster prevention projects.
