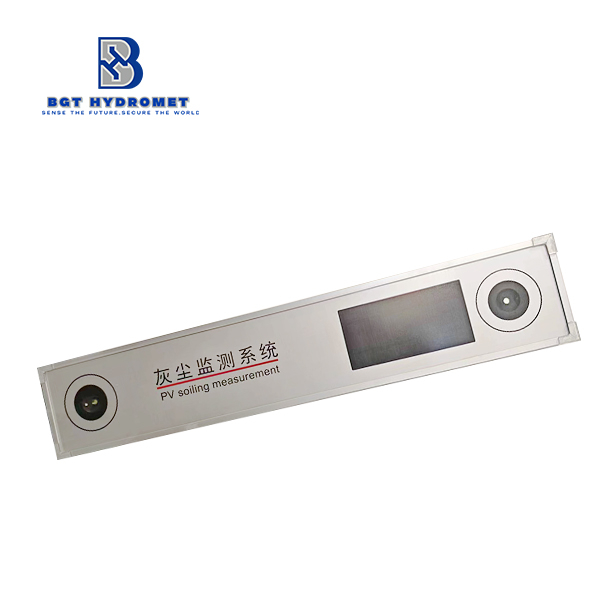

Our dust monitoring system uses a blue light source with multi-frequency modulation to measure transmission losses caused by dust and pollutants on PV glass.
Blue Light Source: Ensures long-term stability under UV exposure.
Multi-Frequency Modulation: Filters out interference from sunlight and other sources.
Real-Time Data: Converts soiling ratio (SR) directly into energy loss information.
✅ Optimize cleaning cycles to maximize ROI.
✅ Compact & rugged design with solar-grade materials, waterproof and durable.

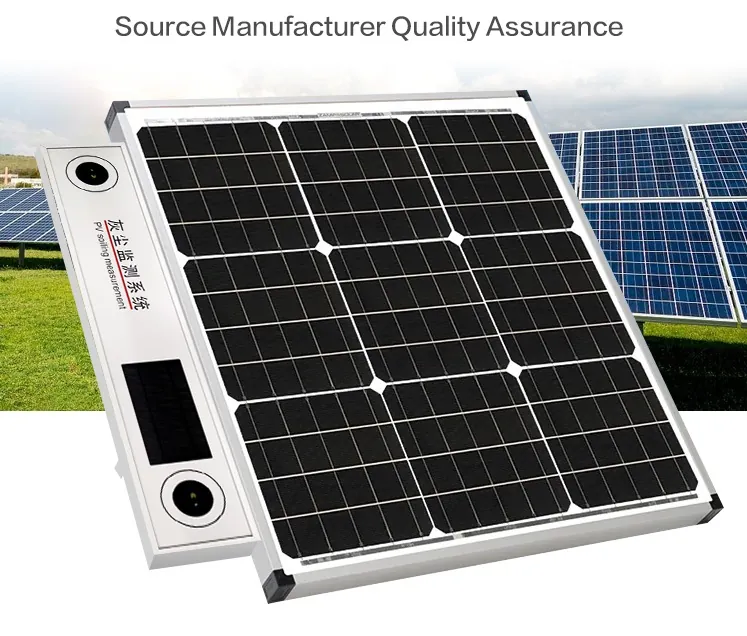

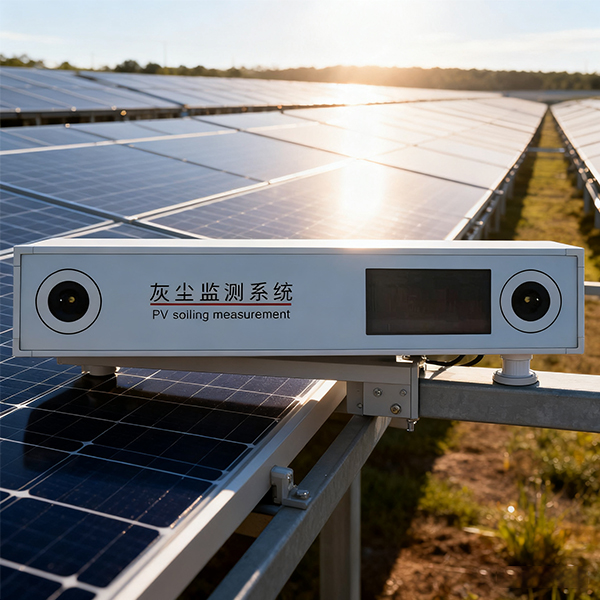

✅ Plug & play installation on PV module frames, adaptable to different thicknesses.
✅ Maintenance-free: clean only during panel cleaning.
✅ Strong compatibility: RS485 Modbus, SCADA ready.
✅ 24/7 operation with active light emission (accurate even at night).
✅ Optional add-ons:
GPS positioning with timestamped data
Backside temperature sensor input
Installation angle output (tilt detection + drop-off alarm)
Utility-scale solar farms in desert and dusty regions.
Industrial & urban PV plants exposed to pollution.
Large solar projects focused on O&M cost reduction and performance optimization.
| Parameter | Description | Notes |
|---|---|---|
| Pollution Ratio | 50–100% | Dual-sensor measurement |
| Accuracy | ±1% FS (90–100%) | ±3% (80–90%), ±5% (50–80%) |
| Stability | <1% FS per year | – |
| Temp. Sensor (optional) | -50°C to +150°C, ±0.2°C | RS485 output |
| GPS (optional) | 10 m avg. accuracy | Positioning & timestamp |
| Output | RS485 Modbus, relay contact | For SCADA & cleaning devices |
| Power Supply | 9–30 VDC (typical 12 V) | – |
| Power Consumption | <2.5 W | Low-power design |
| Operating Temp. | -40°C to +60°C | Outdoor-grade |
| Weight | 3.5 kg | – |

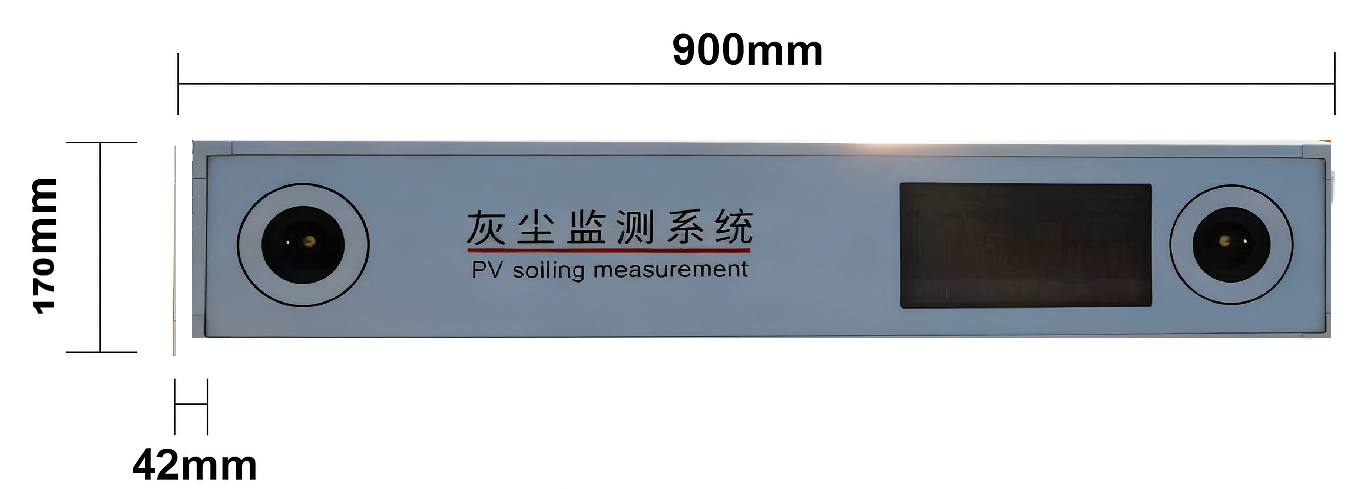

| Dimensions | 900 × 170 × 42 mm | – |
| Cable Length | 20 m | – |
Maximize Your Solar Farm’s ROI with Our Dust Monitoring Sensor
Contact us to optimize solar performance and reduce O&M costs.
