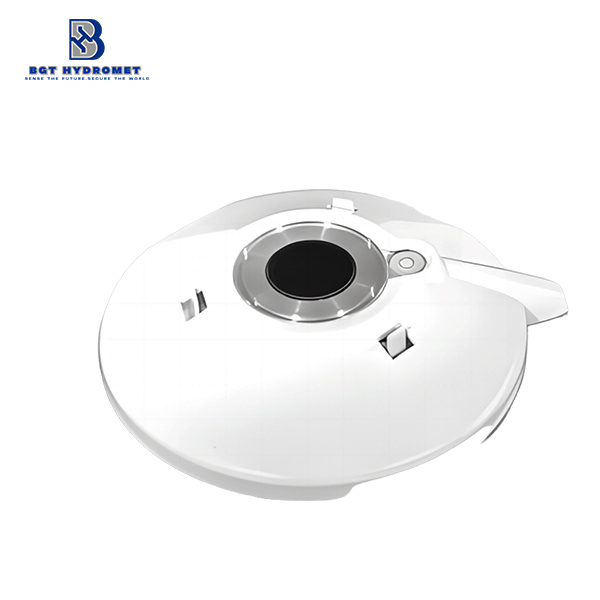

Ultraviolet Radiation Sensor

The ultraviolet radiation sensor is a high-performance environmental monitoring device used for measuring and recording the ultraviolet radiation intensity within the range of 280-400nm in the environment. The product features high precision, rapid response and strong stability, which can accurately capture and reflect the changes in ultraviolet radiation. Whether in meteorological observation, environmental monitoring, skin health research or safety assessment of outdoor workplaces, ultraviolet radiation meters play a crucial role.

Availability:



Inquire

ultraviolet radiation sensor UV sensor Solar radiometer OEM solar radiation monitor Solar energy farm monitoring

Product Description

Product Parameters

Application Scenarios

Description:

The Ultraviolet Radiometer is a precision instrument designed to measure solar ultraviolet radiation (UVAB/UVA/UVB wavelengths) in the atmosphere. It provides critical data for calculating UV index, erythema (sunburn) dosage, and assessing UV impacts on human health, biological systems, and chemical processes. Compliant with WMO (World Meteorological Organization) standards, it delivers reliable measurements for environmental, industrial, and scientific applications. With passive sensing technology and robust design, it operates effectively in harsh conditions without external power (for analog version), while the RS485 version supports digital integration.

Key Product Selling Points

1.WMO Compliance: Meets international meteorological standards (CIMO Guide) for accuracy and reliability.

2.Multi-Wavelength Coverage: Supports UVAB (280-400nm), UVA (315-400nm), and UVB (280-315nm) spectral ranges.

3.Passive & Active Options: Analog version (0-20mV) requires no power; RS485 version (9-36V) enables digital communication.

4.High Precision: Sensitivity of 10-500 μV/W·m², nonlinearity ≤±2%, and fast response time (≤10 seconds).

5.Extreme Environment Adaptability: Operates from -50°C to +100°C and 0-100% RH, with annual stability ≤±2%.

UV sensor-BGT

Parameter	Specification
Spectral Range	UVAB: 280-400nm; UVA: 315-400nm; UVB: 280-315nm
Signal Range	UVAB/UVA: 0-300 W/m²; UVB: 0-10 W/m²
Output Signal	0-20mV (passive); RS485 (9-36V powered)
Sensitivity	10-500 μV/W·m²
Response Time	≤10 seconds (99%)
Nonlinearity	≤±2%
Annual Stability	≤±2%
Operating Temperature	-50°C to +100°C
Operating Humidity	0-100% RH
Weight	0.8 kg

Application Scenarios

Public Health: UV index forecasting, erythema dose measurement for sun exposure warnings.
Agriculture & Ecology: Plant response to UV stress, environmental ecosystem impact assessment.
Meteorology & Climate Research: UV monitoring, ozone layer studies, and climate change analysis.
Industrial & Materials Testing: UV-induced aging tests for coatings, plastics, and construction materials.
Medical Research: UV radiation effects on skin and biological systems.

The delivery set include the following items:

Ultraviolet radiation sensor TBQ-UV series 1 unit (including cable)

One calibration certificate

Set of fixing screws

One lens cloth

User manual 1 copy

After receiving the goods, please conduct an appearance integrity inspection, and it is recommended that users store the certificate of conformity in a safe place.
