◀◀ Key Selling Points ▶▶
1. High Accuracy and Stability: Offers a measuring range of 0-3500 mg/L (or 0-35000 mg/L) with a resolution of 0.1 mg/L (or 1 mg/L) and an accuracy of ±5%, ensuring precise and reliable chloride ion measurements.

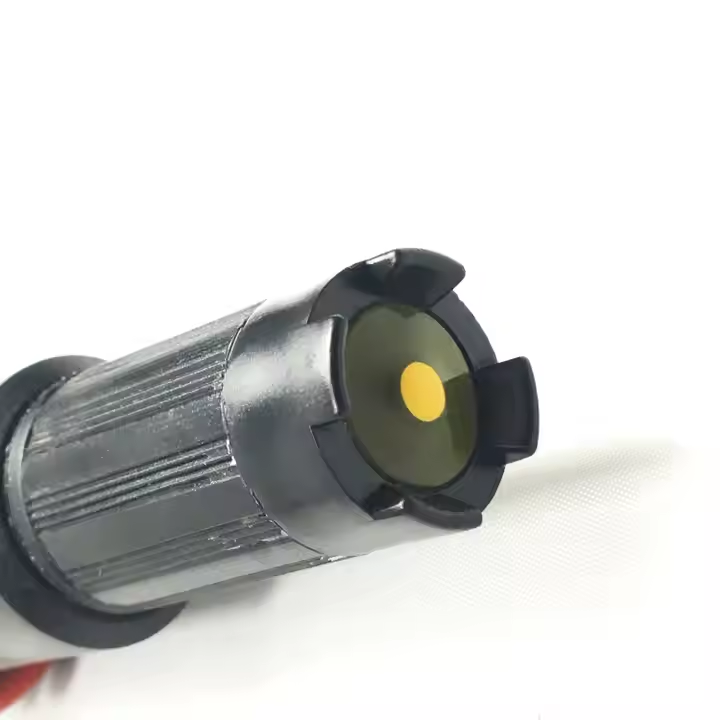

2. Solid Membrane Ion-Selective Electrode: Provides fast and accurate measurements without the need for frequent calibration, reducing maintenance and operational costs.
3. Automatic Temperature Compensation: Equipped with a Pt1000 temperature sensor for automatic temperature compensation, ensuring accurate readings even in fluctuating temperature conditions.
4. Durable Construction: Made with 316L stainless steel, the sensor is highly resistant to corrosion and suitable for harsh industrial environments.
5. Easy Installation: Features a 3/4 NPT threaded design for easy immersion or pipeline installation, with a waterproof M16-5 core connector for secure connections.
6. Versatile Communication Options: Supports RS485 Modbus/RTU and 4-20mA current output, enabling seamless integration with PLCs, DCS systems, and other industrial equipment.
7. IP68 Protection: Fully waterproof and dustproof, making it suitable for immersion in water, including seawater, and operation in challenging environments.
8. Low Maintenance: The sensor requires minimal cleaning and calibration, reducing downtime and operational costs.
9. Energy-Efficient: Consumes only 0.2W at 12V, making it an energy-efficient solution for continuous monitoring.
◀◀ Product Parameters ▶▶
Model | BGT-WCl(K2) | |
Measuring principle | Ion selection method | |
Measuring range and resolution | 0-3500mg/L | 0.1 |
0-35000mg/L | 1 | |
Accuracy | ±5%; ±0.3℃ | |
Calibration method | Two point calibration | |
Cleaning method | / | |
Temperature compensation | Automatic temperature compensation(Pt1000) | |
Output | RS-485(Modbus RTU), 4-20 mA | |
Storage temperature | -5-65℃ | |
Working conditions | 0-60℃,≤0.2MPa, pH:2-12 | |
Shell material | 316L | |
Installation method | Input type installation | |
Consumption | 0.2W@12V | |
Power supply | 12-24VDC | |
Protection class | IP68 | |
◀◀ Application Scenarios ▶▶
1. Environmental Water Quality Monitoring: Used in rivers, lakes, and reservoirs to monitor chloride ion levels and detect contamination.
2. Industrial Water Treatment: Ideal for monitoring chloride ion levels in industrial water treatment processes, ensuring compliance with environmental regulations.
3. Aquaculture: Helps maintain optimal chloride ion levels in fish farms and aquaculture systems to ensure healthy aquatic environments.
4. Wastewater Treatment: Monitors chloride ion levels in wastewater treatment plants to ensure proper treatment and discharge.
5. Food and Beverage Industry: Used to monitor chloride ion levels in food and beverage production processes, ensuring product quality and safety.
6. Chemical Processes: Suitable for monitoring chloride ion levels in chemical reactions and industrial production processes.
7. Research and Laboratories: Suitable for scientific research and laboratory applications requiring accurate chloride ion measurements.
