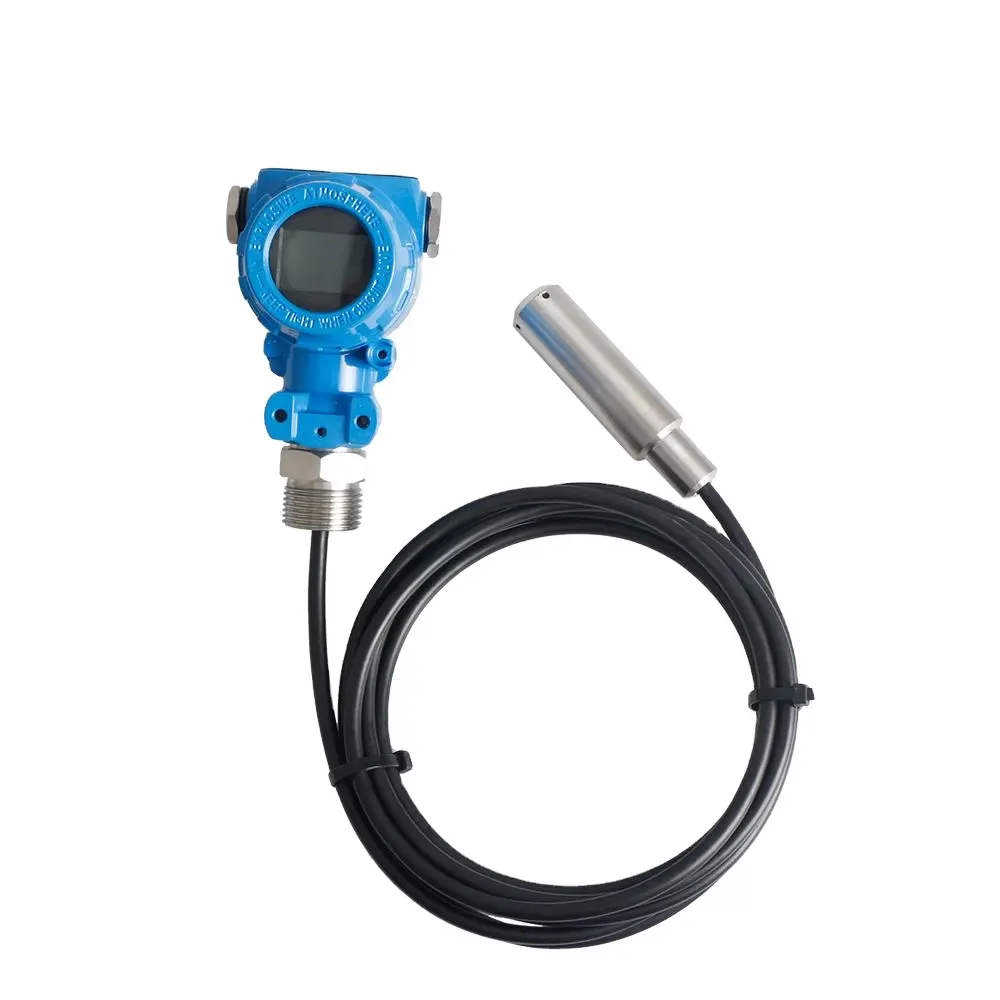

GX-701P(HT) High Temperature Liquid Level Transmitter

The GX-701P High Temperature Liquid Level Transmitter is specially designed for high temperature or strong corrosive liquids, which
effectively solves the problem of difficult level measurement of high temperature liquids. It is especially suitable for the measurement of medium and small range and the level of strong corrosive media.

Availability:



Inquire

Corrosion-Resistant Level Sensor Industrial Liquid Measurement water level meter Sludge Level Transmitter High Temperature Liquid Level Transmitter

Key Selling Points

Product Parameters

Application Scenarios

◀◀ Key Selling Points ▶▶

◆ Wide measurement range: 0-1m - 20mH2O;

◆Multiple output signals are available for selection;

◆ Anti-interference and surge protection;

◆ High-temperature and small-range measurement

◀◀ Product Parameters ▶▶

Parameter	Specifications
Measuring Range	0~1m~20m
Accuracy	1%FS; 0.5% FS optional
Working Temperature	-20℃～85℃; -40℃～125℃(Optional)
Diaphragm Material	316L / Al2O3
Shell Material	304SS / 316L
Cable Material	PUR / PE / PTFE / PVC
Power Supply	DC8~30V; DC 3~5V(Optional)
Output	4~20mA / 0~10V / 0~5V / 1~5V / 0.5~4.5V / 0.5~4.5V(Ratio of the voltage) / 4~20mA+Hart / 4~20mA+RS485 / RS485 / I2C

◀◀ Application Scenarios ▶▶

◆ High-temperature liquid medium

◆ Corrosive medium

◆ Liquid level detection, system control
