Precision PAR Measurement for Optimal Plant Growth

Precision PAR Measurement for Optimal Plant Growth

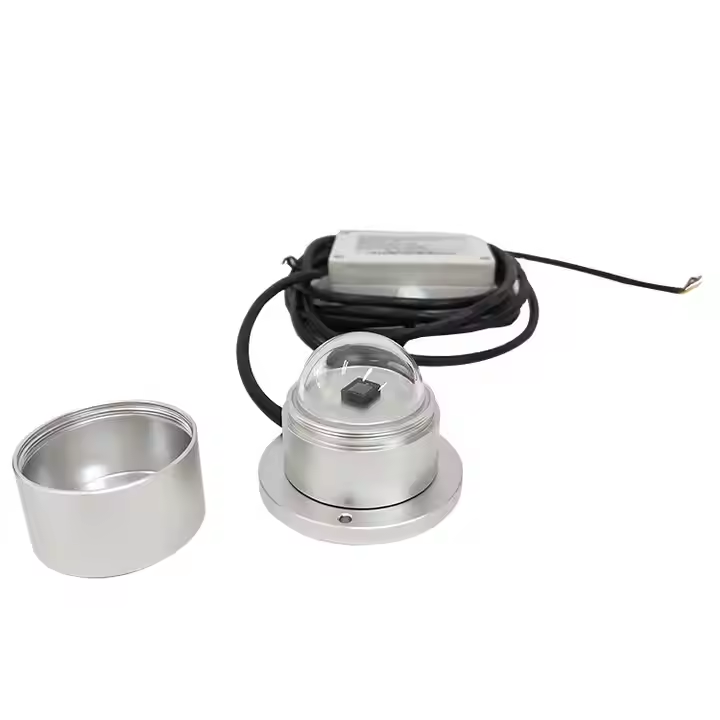

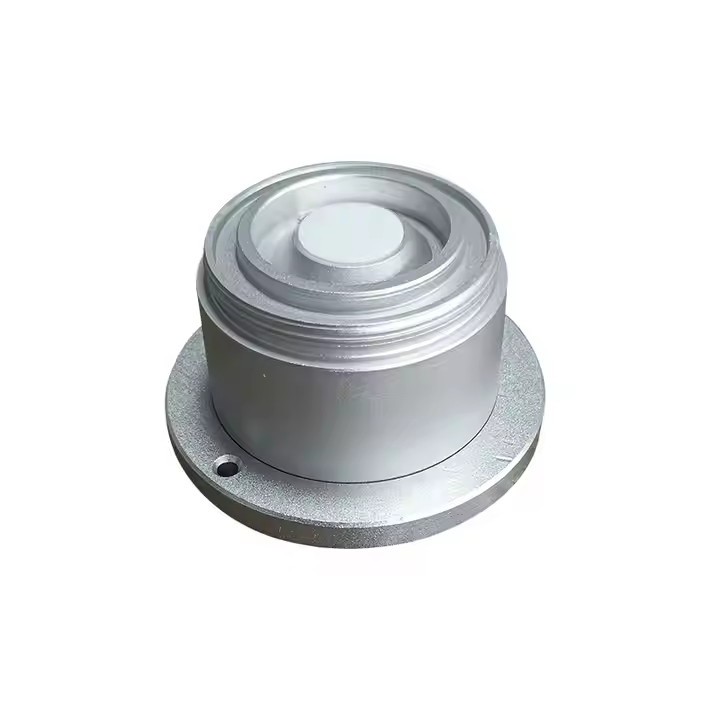

Photosynthetically active pyranometer is an instrument used to measure the radiant energy in a certain band (wavelength is 400nm~700nm) in the solar radiation spectrum that can be absorbed and converted by plastid pigments of green plants and used to synthesize organic substances. It is designed in strict accordance with the "GB/T35139-2017" national standard. It consists of sensing devices, filters, cosine correctors, signal output terminals and structural components.

Availability:



Inquire

◀◀ Key Selling Points ▶▶

1. High Precision Measurement: The sensor measures photosynthetically active radiation (PAR) with an accuracy of ±4% and a resolution of 1W/m² (energy) or 1µmol/m²/s (quantum), ensuring reliable and precise data.

2. Wide Spectral Range: Covers the spectral range of 400~700nm, which is critical for photosynthesis and plant growth.

3. Multiple Output Options: Supports current (4~20mA), voltage (0~5V), and digital communication protocols (RS485/RS232 with Modbus/ASCII), providing flexibility for different system integrations.

4. Robust Design: Features an aluminum alloy shell with IP67 protection, making it durable and suitable for harsh outdoor environments.

5. Fast Response Time: Response time of ≤5 ms (95%), ensuring real-time data acquisition.

6. Low Power Consumption: Consumes ≤100mW at 5V, making it energy-efficient.

7. Wide Operating Temperature Range: Operates in temperatures from -40°C to 80°C, ensuring reliable performance in extreme conditions.

8. Easy Integration: Compatible with various power supplies (DC 5V, 9-30V) and supports multiple communication protocols for seamless integration into existing systems.

You are here: Home / Products / Meteorological Monitoring / Radiation Sensors / Precision PAR Measurement for Optimal Plant Growth

Measuring Range	0~1500W/m² (Energy)	0~5000umolm^-2s^-1(Quantum)
Resolution	1W/m²	1umolm^-2s^-1
Spectral range	400～700nm
Response Time	≤5 ms(95%)
Nonlinear	±4%
Directional Response (corrected to within 80° of zenith angle)	±10％
Temperature Response(-20℃～60℃)	±5%
Annual Stability	±3%
Spectral Response Bandwidth	(400±10)nm～(700±10)nm
Spectral Selectivity Error	±5%
Response Outside the Specified Bandwidth	≤10%
Protection Class	IP67
Working Environment	Temperature:-40~80℃: Humidity:0~100%RH
Cable Length	2m / other
Power Consumption	≤100mW@5V
Power Supply	DC 9-30V; DC5V or other
Output Signal	Current 4～20mA ; Voltage 0～5V RS485 Modbus/ASCII;RS232 Modbus/ASCII;
