Home Flood Monitoring & Early Warning

Flood Monitoring & Early Warning Solutions

A low-cost, easy-to-install and easy-to-maintain early warning system for flood-prone communities and river basin management. Radar water-level sensing + rainfall monitoring + acoustic/visual alarms + solar power + 4G/LoRa auto-switching deliver warnings 6–12 hours ahead — and keep running in remote areas with no signal and no grid power.

1

Provides early warning with a lead time of 6–12 hours

Maintains operation under no-signal conditions

Supports off-grid operation without utility power

What Is Flood Monitoring & Early Warning?

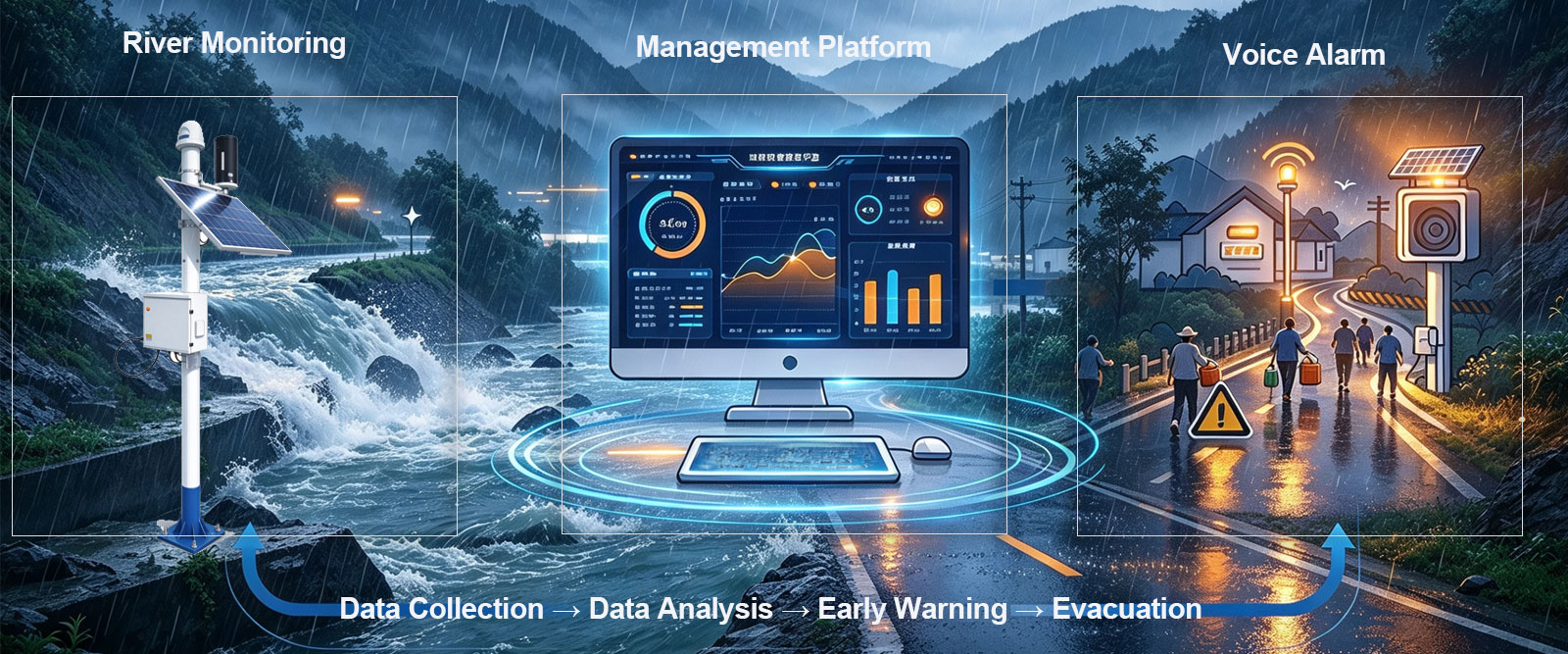

Sensors and hydrometeorological instruments collect real-time water level, flow, rainfall and soil-moisture data across the basin. Combined with hydrological models, the system predicts when floods will occur, their peak levels and inundation extent — then pushes early warnings to riverside communities and authorities in time for evacuation, cutting loss of life and property.

未标题-2

What It Solves

our challengeOur solutionWhat you get
Floods strike with no warning6–12 hours advance warningTime to prepare and evacuate before risk arrives
Night-time floods; villagers react too late24/7 automatic monitoring + acoustic/visual alarmRound-the-clock protection
No network — warnings never arrive4G / LoRa auto-switchingData delivered reliably
No power — how do we run it?Solar power + battery30–45 days operation without sunlight
No technical staff on sitePlug-and-playConnects and works out of the box

What is our solution?

Customer Type


Governments (water resources / disaster mgmt )

Public institutions

NGOs

EPC integrators

Community & village projects

Hydrology research institutes

Five Scenarios · Corresponding Five Sub-solutions

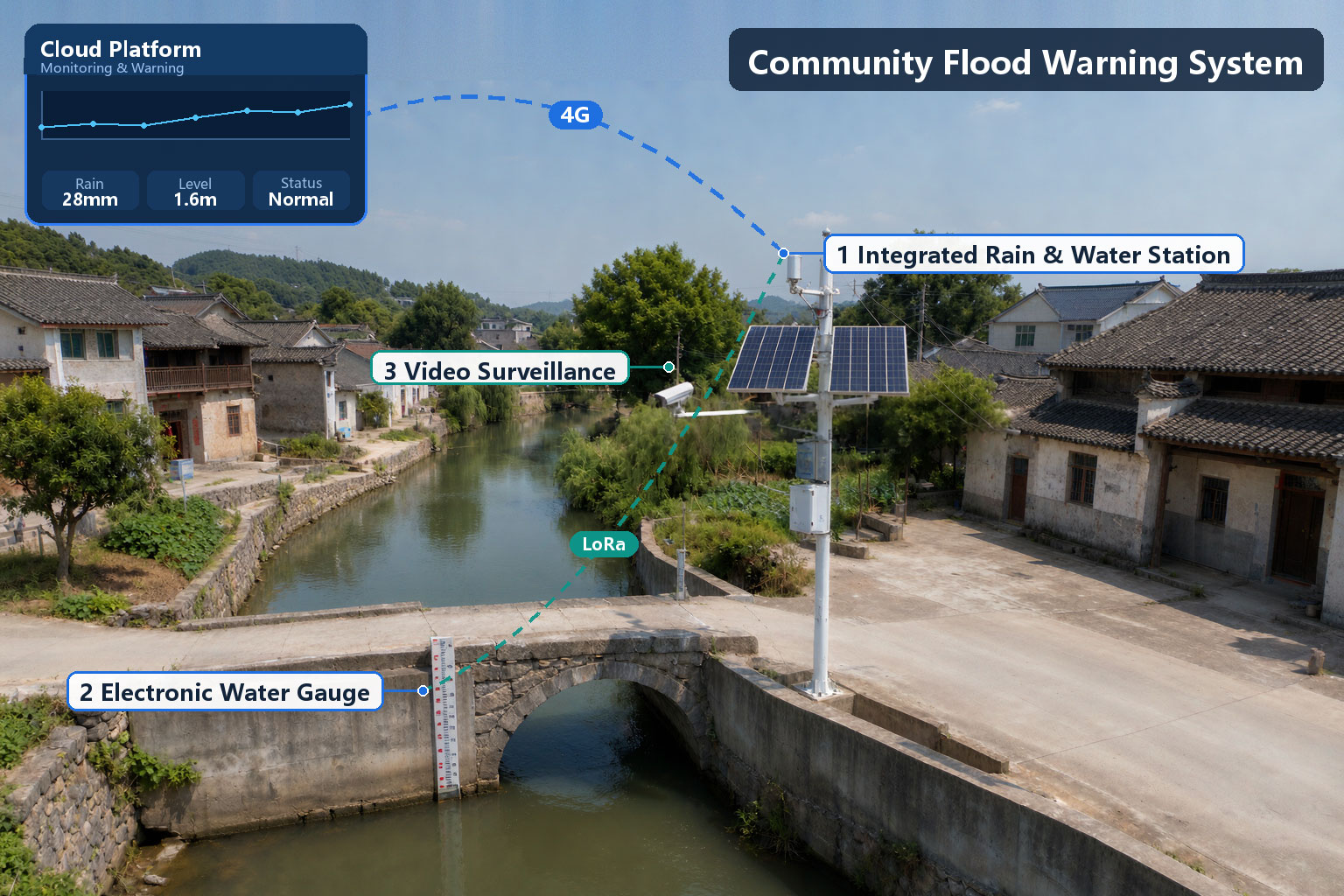

Community Flood Monitoring & Early Warning

Community Flood Monitoring & Early Warning

For flood-prone communities and villages

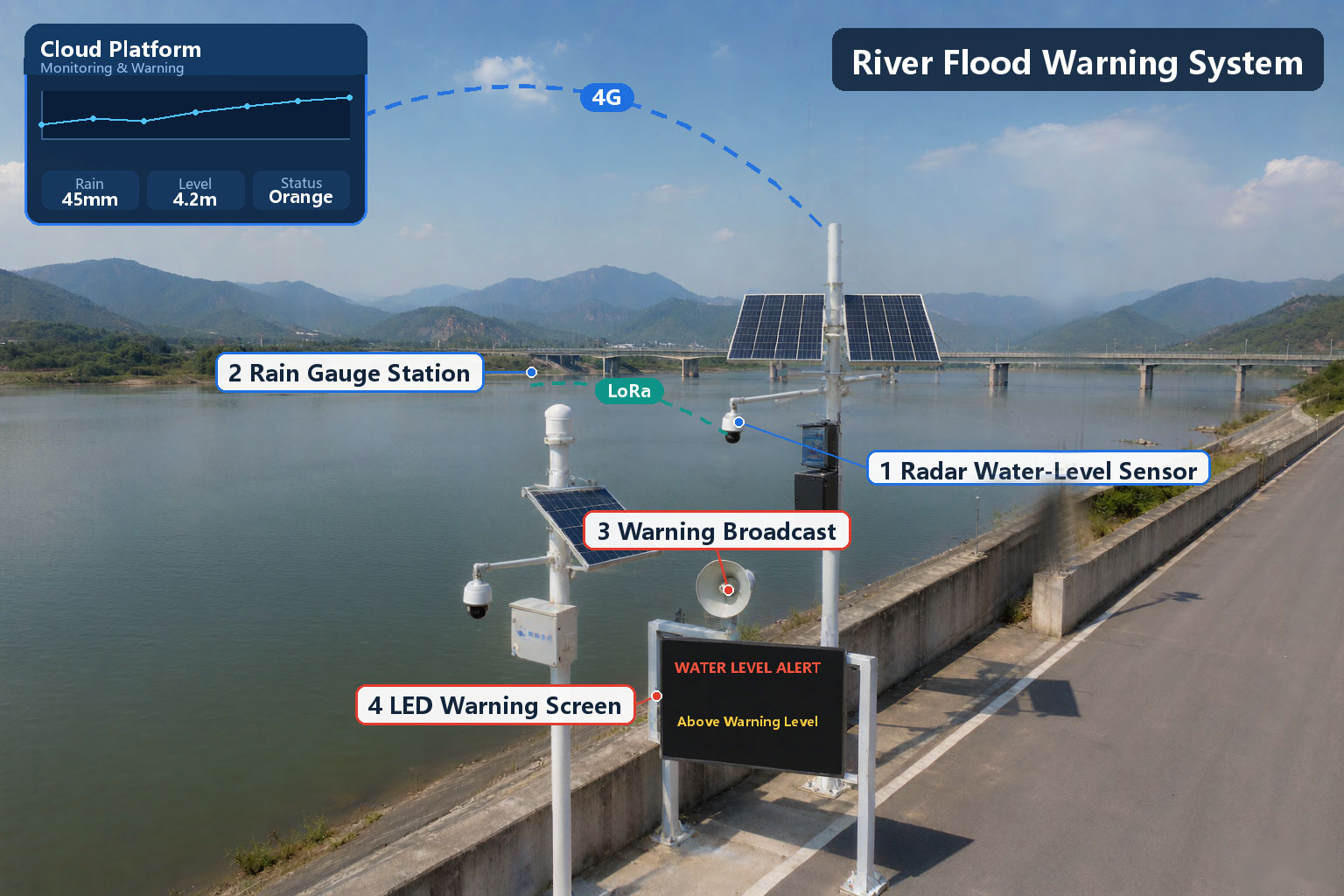

River Flood Monitoring & Early Warning

River Flood Monitoring & Early Warning

For rivers, streams and flood channels

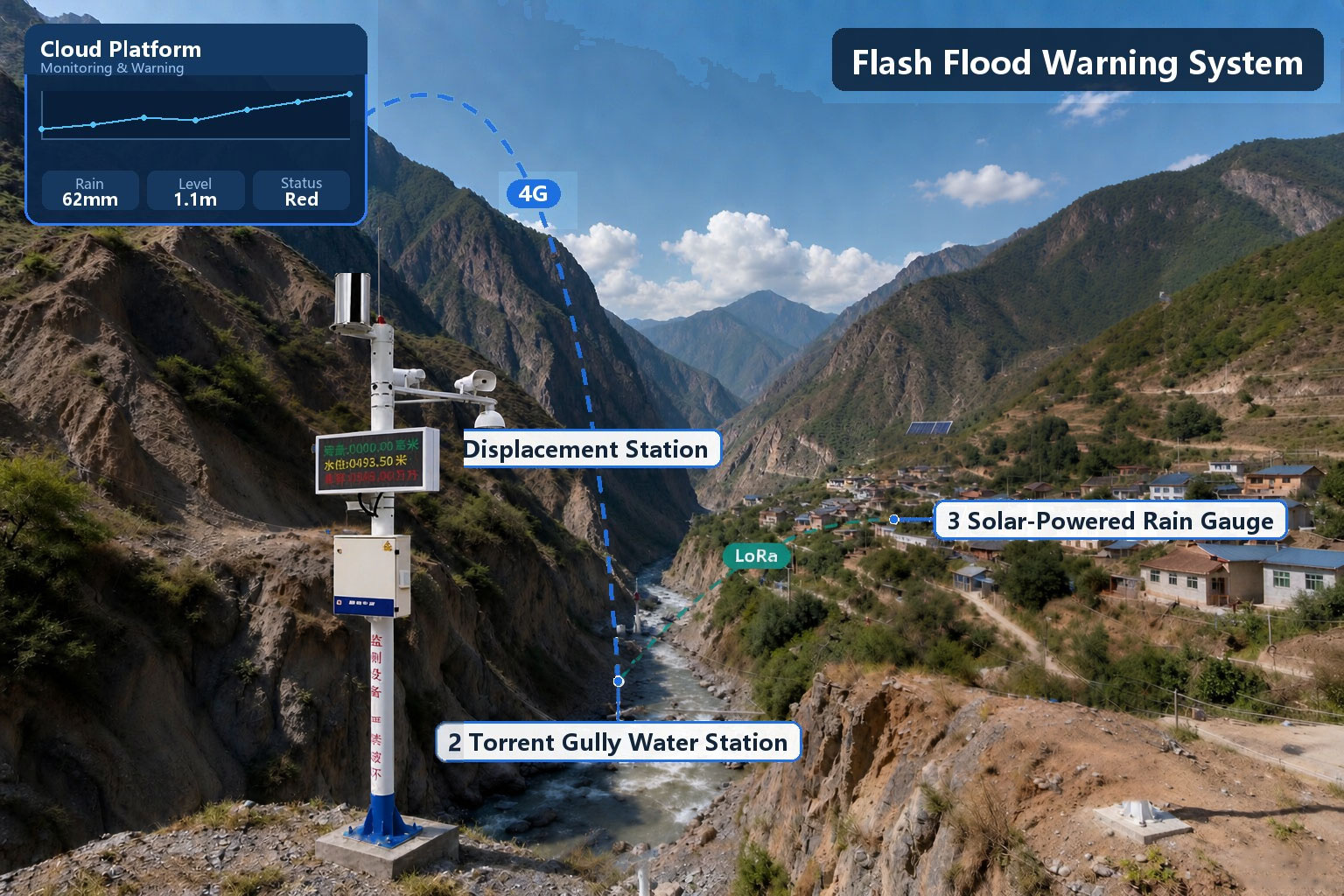

Mountain Torrent (Flash Flood) Monitoring

Mountain Torrent (Flash Flood) Monitoring

For mountains, gorges, torrent gullies, heavy-rain zones (no grid power)

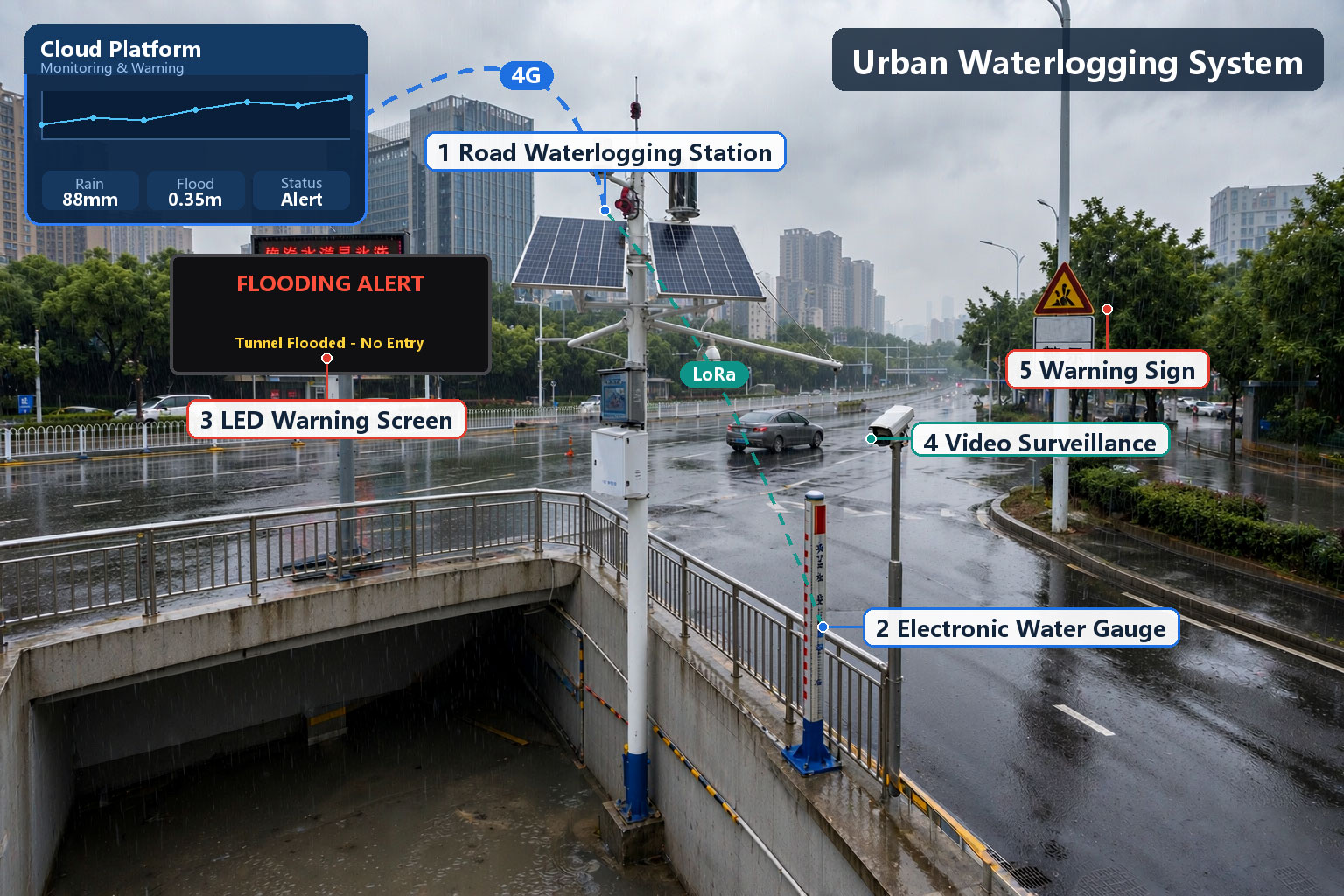

Urban Waterlogging Monitoring

Urban Waterlogging Monitoring

For urban roads, tunnels, low-lying areas, drainage outlets

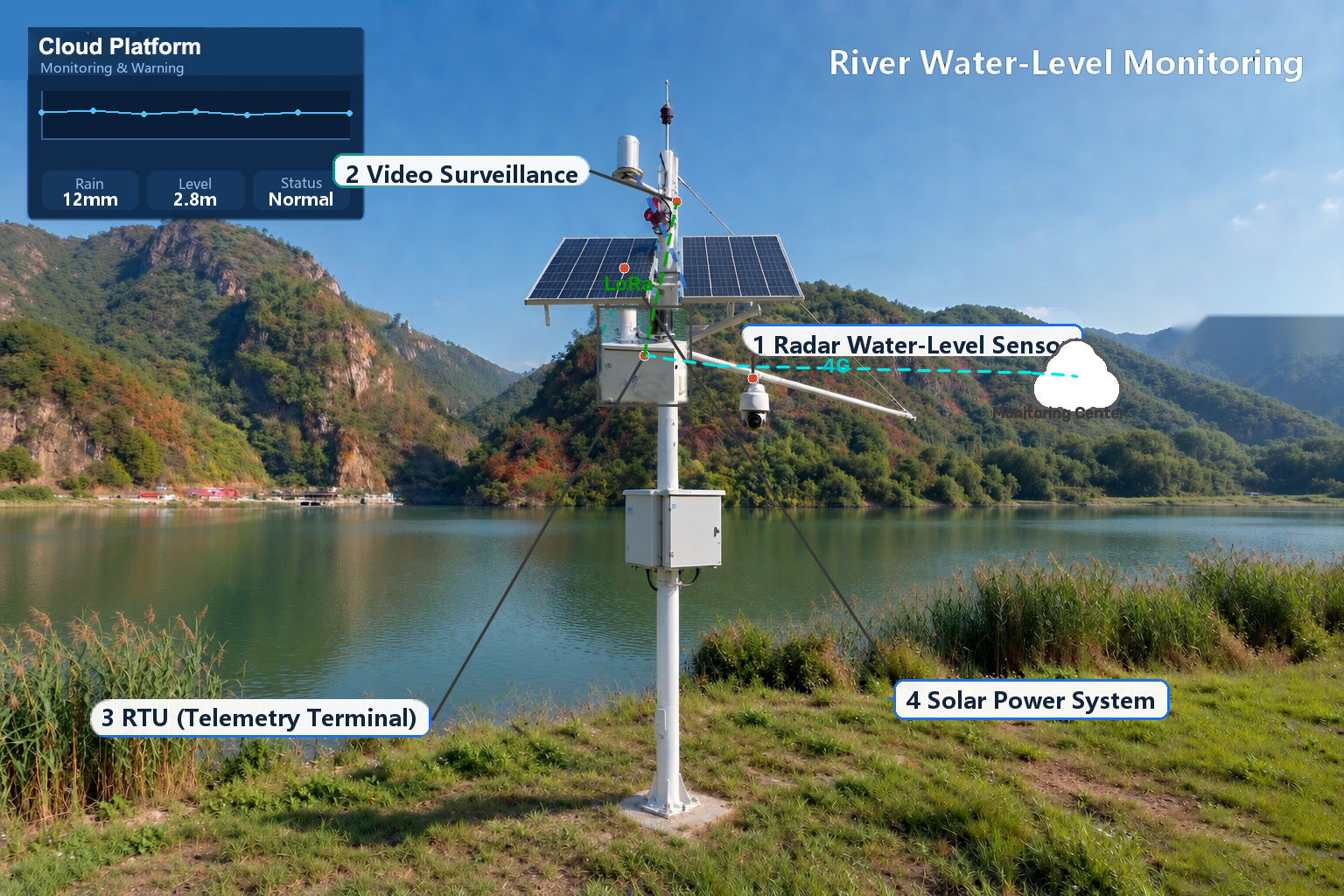

River Remote Water-Level Monitoring

River Remote Water-Level Monitoring

For rivers, streams and hydrological stations

Get Your Flood Early Warning Solution

Tell us your monitoring scenario and the number of sites — we will return an initial solution and a quotation framework within 24 hours.

How It Works / System Architecture

Sensor → RTU → 4G/LoRa → Platform → Alarm

① Data acquisition

Radar water-level gauge · tipping-bucket rain gauge

② Edge computing

RTU aggregates · caches during outagee

③ Remote transmission

4G / LoRa / Starlink

④ Platform analysis

Threshold triggers · multi-level warning

⑤ Warning broadcast

Local-language sound & light

Radar water-level gauges and tipping-bucket rain gauges collect data 24/7 in the field;
RTU / data collectors aggregate the data, cache it locally during outages, and auto-resend when reconnected;
Data is uploaded to our self-developed IoT platform via 4G / LoRa;
The platform automatically analyzes against water-level and rainfall thresholds and triggers multi-level warnings;
Roadside warning stations replay the alert in the local language with sound and light, and push it to responsible officers via SMS, email or app.
Sensor → RTU → 4G / LoRa → Platform → Alarm

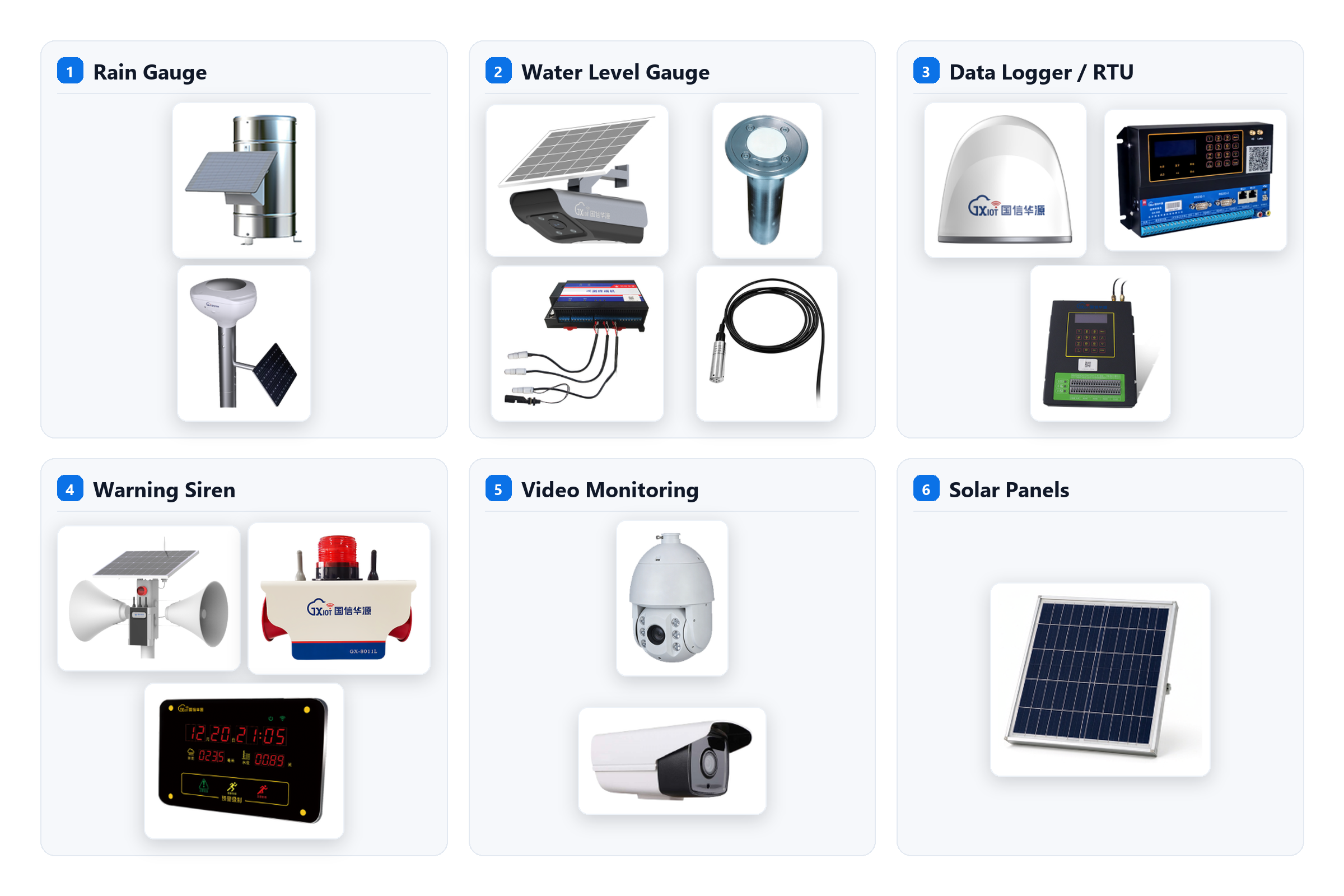

Typical Configuration

Water-level gauge: measures river water level in real time

Rain gauge: monitors rainfall

Data collector / RTU: gathers data and sends to cloud

Solar panel: powers the station, no grid needed

Warning siren: sound and light alarm in danger

Mounting kit: secures all equipment

Extensible components: flow meter (rivers / channels), camera (live site view), video equipment (urban waterlogging).

Typical Configuration of Flood Monitoring & Early Warning

Core Advantages

Plug-and-play

Pre-configured at the factory, no on-site commissioning; local workers can maintain it.

Ultra-low power

Average <5 W, runs on a 60 W solar panel; mains + solar dual supply, monitoring continues through power cuts.

Multi-network

4G + LoRa + Starlink full coverage; LoRa self-organizing network where no public network exists.

Open API

MQTT / HTTP protocols connect to your own platform — no data silos.

Non-contact radar sensing

Contact-free, resists silt and floating debris, millimeter accuracy, IP67 all-weather protection.

Local-language multi-level warning

Built-in voice for flash flood / landslide / debris flow, multi-level risk broadcast, platform remote on/off to prevent manual shutdown.

Remote management

Remote dispatch, one-touch reach, remote upgrade and remote diagnostics.

International Success Cases

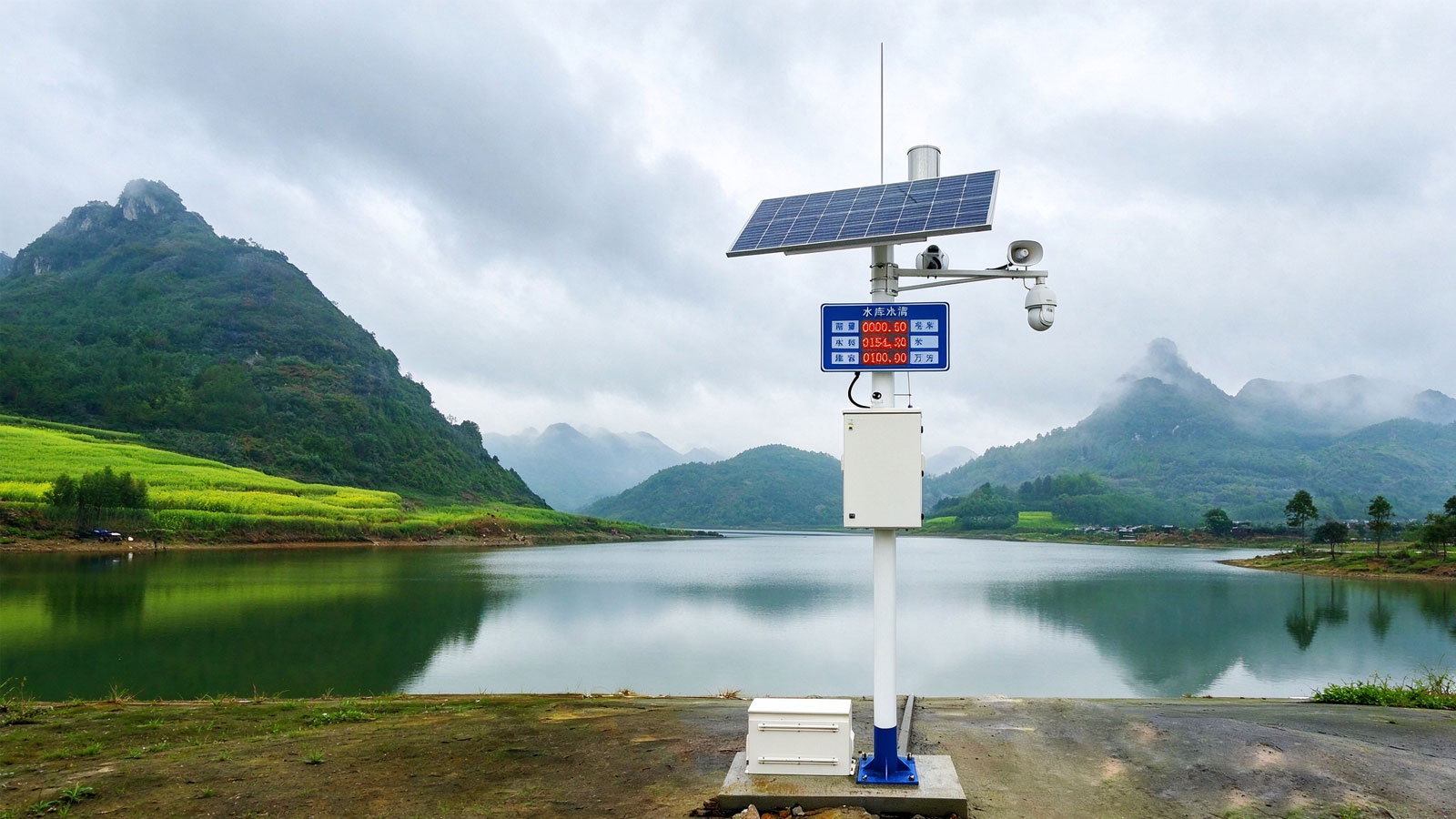

河流

Vietnam

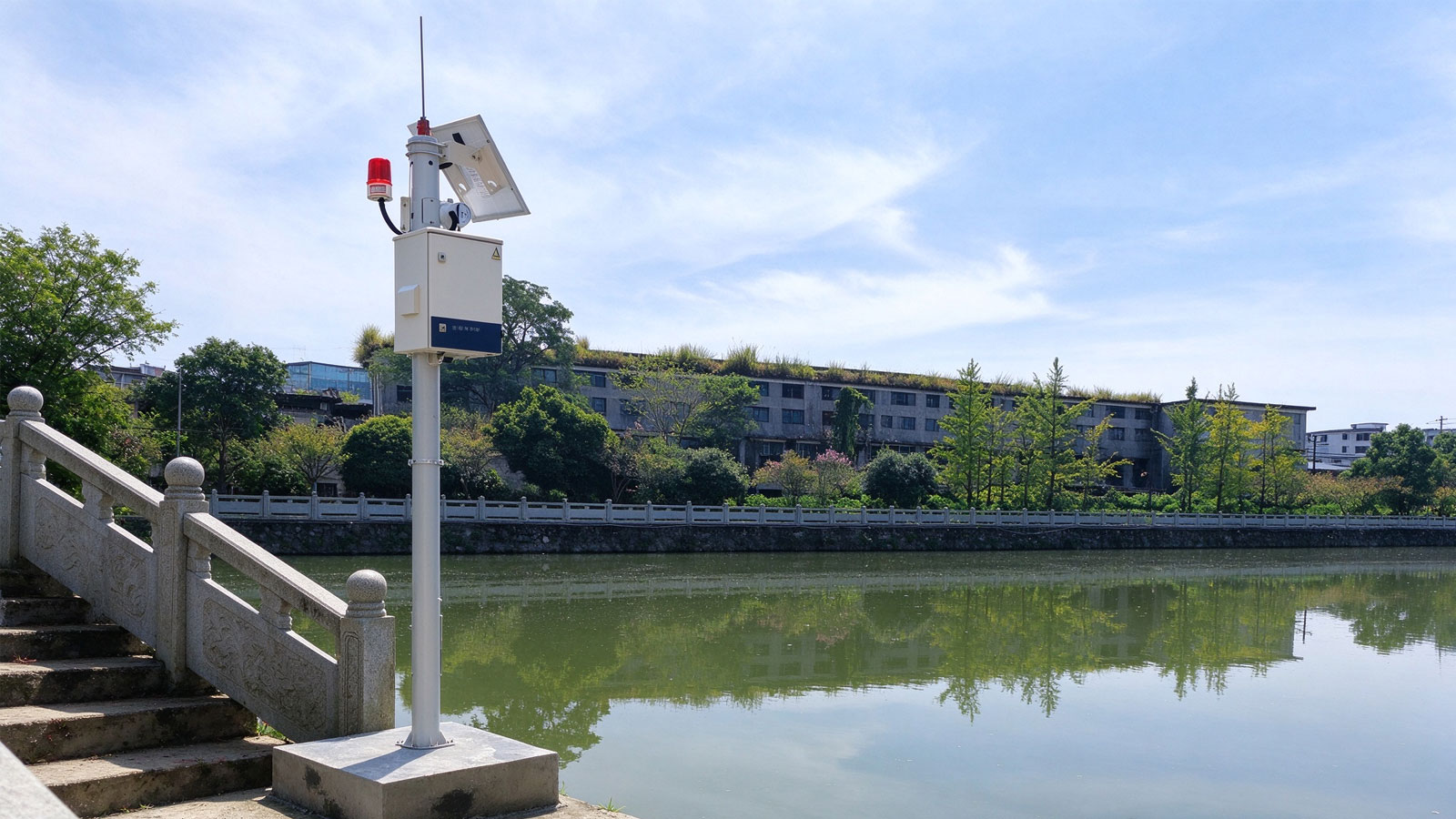

Grassroots rural flood forecasting & early warning project

城市

South Korea

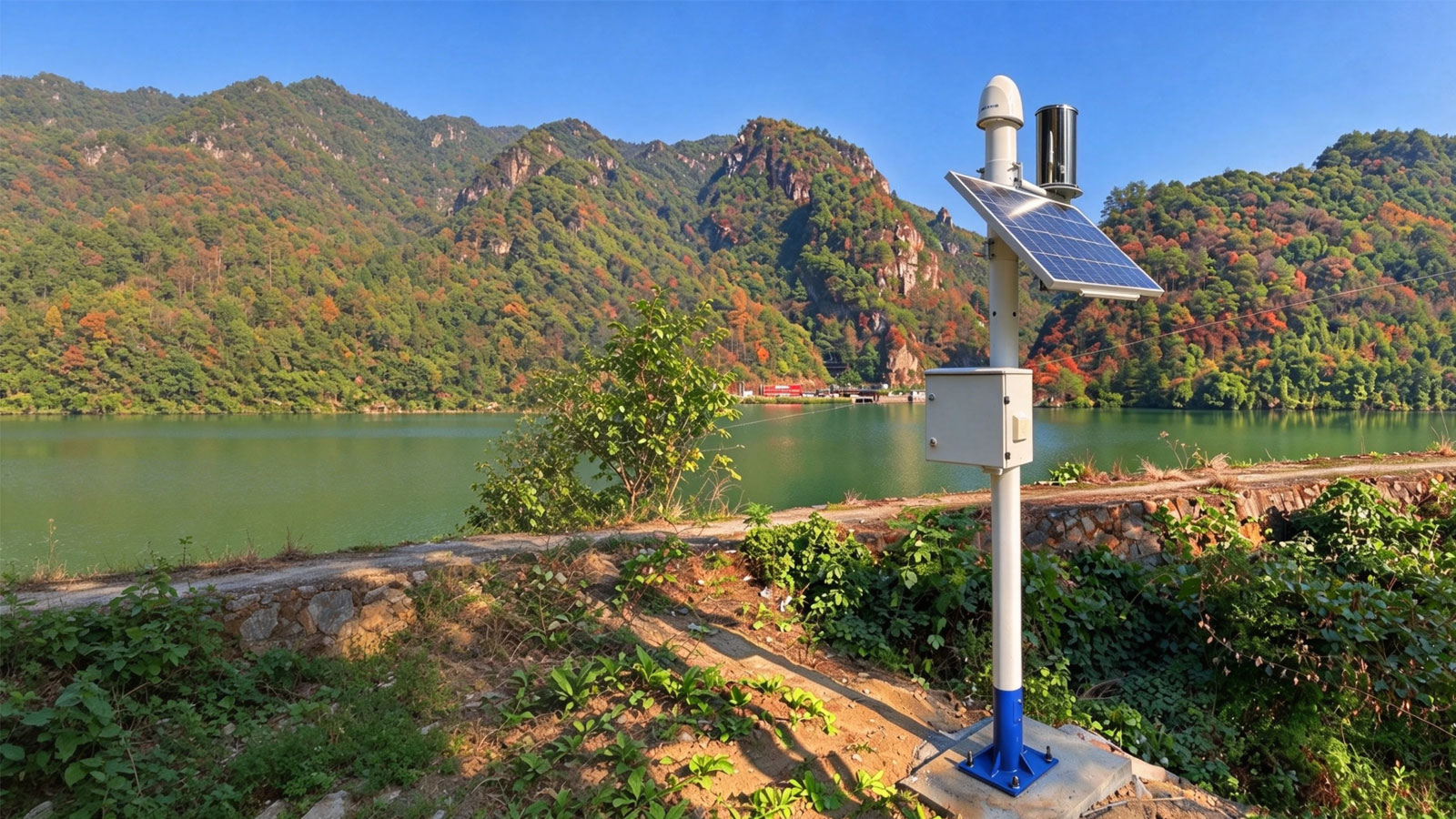

Mountain torrent disaster early warning infrastructure project

山洪

Laos

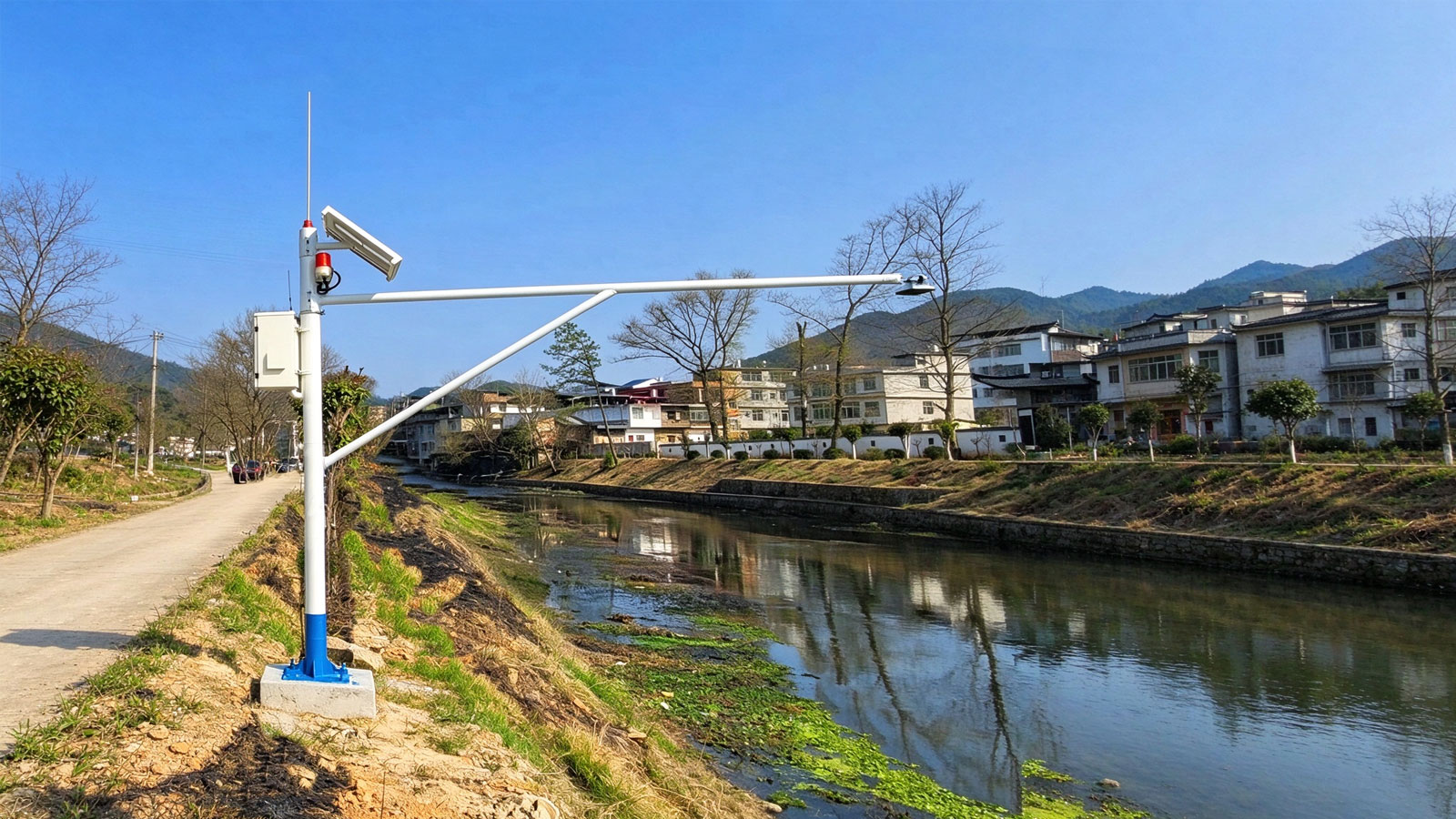

Small-watershed community flash-flood prevention capacity building project

社区

Indonesia

Flash flood & debris-flow disaster early warning project

Professional Techincal Team

Customized Ready-to-Use Natural Disaster Monitoring & Early Warning Systems
If you want to get help immediately, please chat onile now. At the same time, you can as fill in your requirements, we will reply you in 24 hours.
