◀◀ Key Selling Points ▶▶
1. High Precision Measurement: The sensor measures wind speed with an accuracy of ±0.3 m/s or ±1% (whichever is greater) and wind direction with an accuracy of ±3°.
2. Wide Measurement Range: Wind speed range of 0~70 m/s and wind direction range of 0~360°.
3. Durable and Corrosion-Resistant: Made from AAS plastic material, which is resistant to UV and oxidation, ensuring long-term durability even in harsh environments.
4. Compact and Lightweight: The sensor is small, lightweight (0.6 kg), and easy to install, making it suitable for various applications.
5. Multiple Output Options: Supports RS485 interface with NMEA protocol, and customizable features like analog signals, Modbus RTU, and SDI-12.
6. Low Starting Wind Speed: The sensor can detect wind speeds as low as 0.5 m/s, ensuring accurate measurements even in low wind conditions.
7. Wide Operating Temperature Range: Operates in temperatures from -40°C to 55°C, making it suitable for extreme climates.
8. IP66 Protection: High protection level against dust and water ingress, ensuring reliable performance in harsh environments.
◀◀ Product Parameters ▶▶
No. | Project | Performance parameter | ||
BGT-FSX3(M2-1) | BGT-FSX3(M2-2) | BGT-FSX3(M2-3) | ||
1 | Wind speed range | 0~60m/s | 0~70m/s | |
2 | Wind speed resolution | 0. 1m/s | ||
3 | Wind speed accuracy | ±0.3m/s or ±1%, whichever is greater | ||
4 | Wind speed starting value | ≤0.5 m/s | ||
5 | Wind direction range | Optional | 0 ~ 360° | |
6 | Wind direction resolution | Optional | 1 ° | |
7 | Wind direction accuracy | Optional | ±3° | |
8 | Wind direction starting value | ≤0.5m/s | ||
9 | Wind direction corresponding angle | <±10。 | ||
10 | Material quality | AAS | ||
11 | Environmental Indicators | - 40 ℃ ~ 55 ℃ | Suitable for harsh climate environment such as ocean | |
12 | Size Parameter | Height 373mm, length 327mm, weight 0.6kg. | ||
13 | Output signal | The standard product is RS485 interface and NMEA protocol. | ||
14 | Customizable features | Analog signal, NMEA protocol, ASCII (ASCII compatible with Vaisala), CAN interface (ASCII), SDI-12, ModbusRTU. | ||
15 | Power supply | Power supply DC5V without circuit conversion board, 12V ± 10%with circuit board. | ||
16 | Protection level | IP66 | ||
◆◆ Description:
The BGT-FSX3(M2) Wind Speed and Direction Sensor is designed to deliver high-precision wind measurements in the most demanding environments. Whether you're navigating the high seas, optimizing wind turbine performance, or ensuring safe operations in ports, this sensor provides the accurate data you need to make informed decisions.
With its durable AAS plastic construction, the BGT-FSX3(M2) is built to withstand harsh weather conditions, ensuring reliable performance in extreme temperatures and high humidity. Its compact and lightweight design makes it easy to install, while its low starting wind speed ensures accurate measurements even in calm conditions.
◆◆ Key Benefits:
High Accuracy: ±0.3 m/s wind speed accuracy and ±3° wind direction accuracy.
Durable Design: UV and oxidation-resistant materials for long-term reliability.
Wide Measurement Range: Wind speed up to 70 m/s and wind direction 0~360°.
Versatile Outputs: Supports RS485, NMEA, Modbus RTU, and more for seamless integration.
Low Power Consumption: Efficient operation with minimal energy use.
IP66 Protection: Built to withstand harsh environmental conditions.
◀◀ Application Scenarios ▶▶

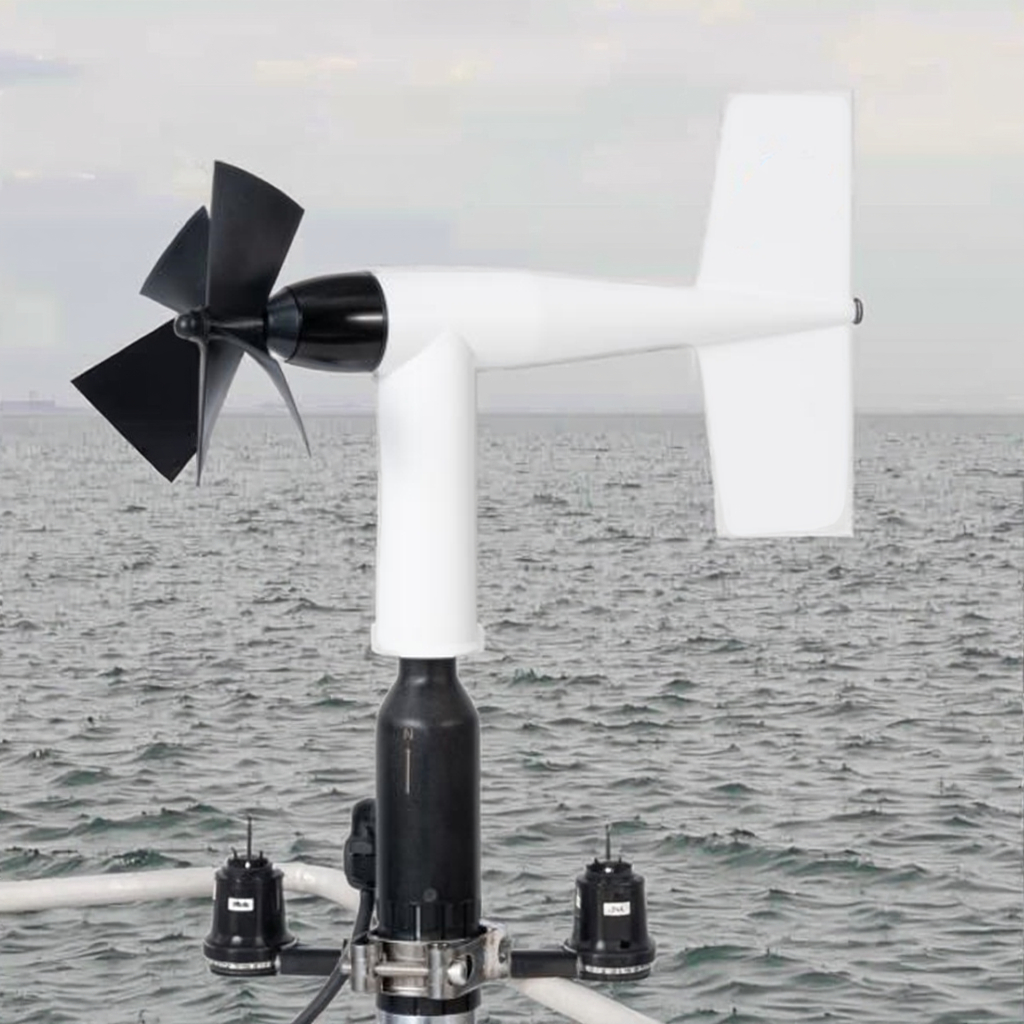

Marine Meteorological Monitoring: Accurate wind speed and direction data for maritime navigation and weather forecasting.
Traffic Meteorological Monitoring: Monitoring wind conditions for road and rail safety, especially in areas prone to strong winds.
Agriculture and Forestry: Assessing wind conditions for crop management, pest control, and forest fire prevention.
Dust Environment Monitoring: Monitoring wind conditions in industrial areas to control dust dispersion.

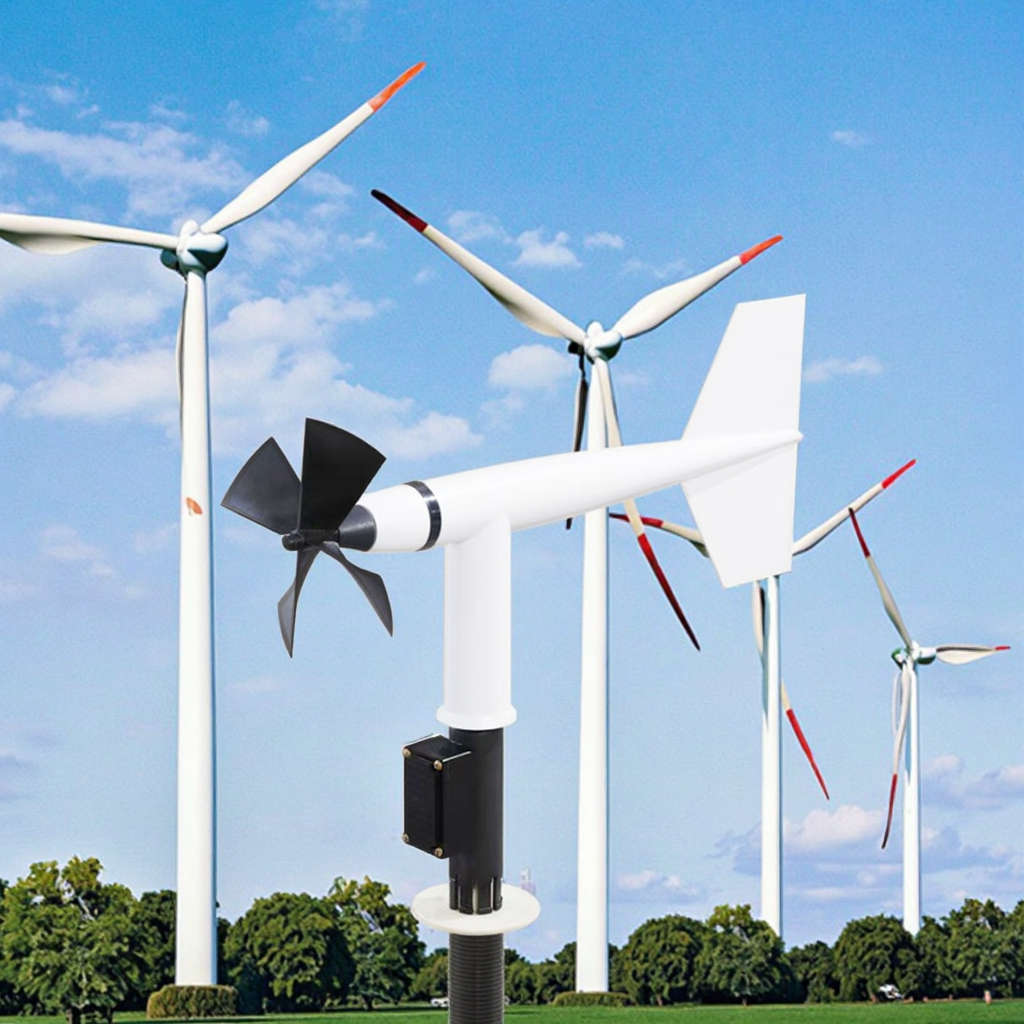

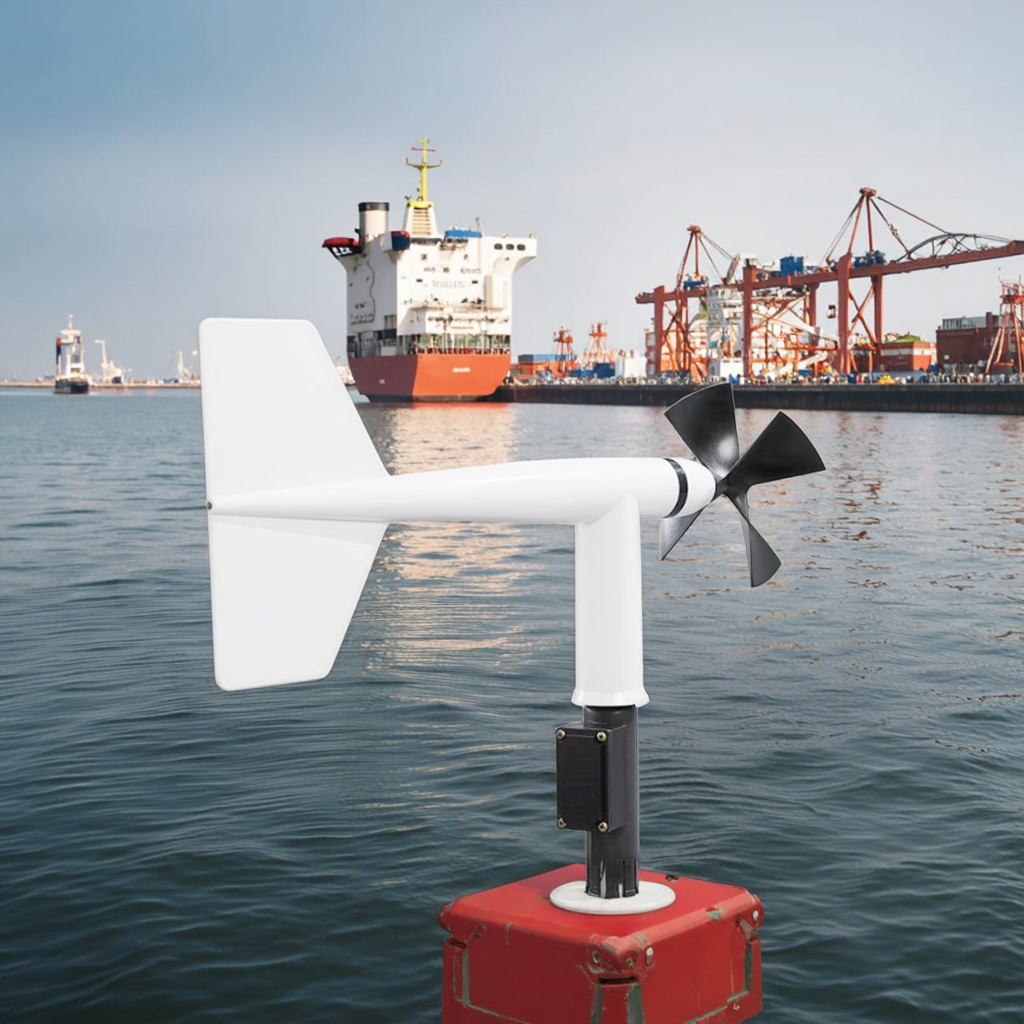

Port and Wind Power Monitoring: Ensuring safe operations of port machinery and optimizing wind turbine performance.
Photovoltaic Environment Monitoring: Monitoring wind conditions to optimize the performance of solar power installations.
