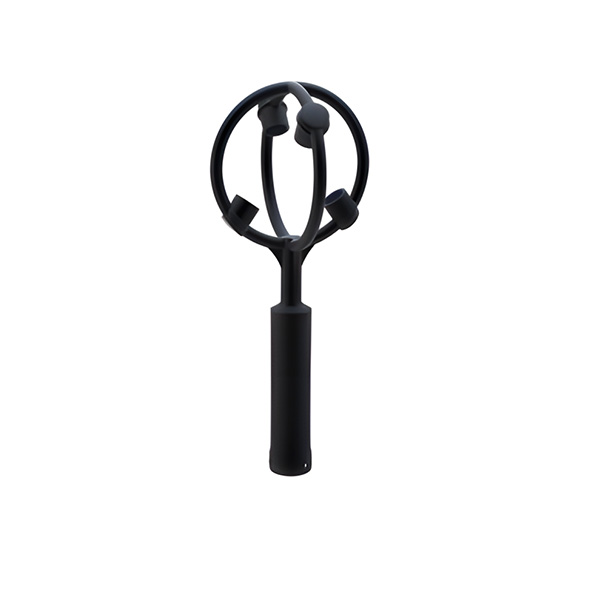

Product Overview
This Mini 3D Anemometer is a cutting-edge, palm-sized wind measurement sensor engineered for high-precision environmental monitoring. With an ultra-compact design (35mm measurement path) and lightweight construction (under 80g), it delivers robust performance without compromising portability. Despite its small size, this device accurately captures comprehensive data including 3D wind velocity (U, V, W vectors), wind direction, temperature, humidity, pressure, tilt, and compass readings. Its solid-state design ensures zero moving parts, eliminating maintenance needs and enabling reliable operation on both fixed and mobile platforms. Ideal for professional and scientific applications, it supports customizable data output tailored to user requirements.
Key Selling Points:
3D Wind Measurement: Precisely captures real-time turbulence and airflow vectors in three dimensions.
️ Drone-Compatible: Ultra-lightweight and compact, perfect for unmanned aerial systems (UAS).
Maintenance-Free: No moving parts, reducing wear and ensuring long-term reliability.
️ Multi-Parameter Sensing: Measures wind, temperature, humidity, pressure, tilt, and heading in one device.
Custom Data Output: Configurable output formats to suit diverse application needs.
Portable & Versatile: Designed for deployment on stationary or moving platforms in dynamic environments.
Parameter Category | Detailed Specification | Value |
Model |
|
|
Wind Speed | Range | 0 - 60 m/s |
| Accuracy | ±2% |
| Resolution | 0.1 m/s |
Wind Direction | Range (U/V) | 0 - 359° |
| Range (W) | ±60° |
| Accuracy | ±3° |
| Resolution | 1° |
| Ultrasonic Output Frequency | 1Hz (Standard); 2Hz, 5Hz, 10Hz (Optional) |
| Measurement Units | m/s, knots, mph, kph, ft/min |
| Digital/Analog Output Interface | RS232 / RS485 (Select one) |
| Communication Baud Rate | 4800 - 19200 |
| Protection Rating | IP65 |
| Operating Temperature | -40℃ to +70℃ |
| EMC Shielding | Complies with EN61000-6-2 Standard |
| Power Requirement & Consumption | DC 9-24V (30mA @12V) |
| Dimensions / Weight | Φ108 × 237mm / 0.22kg |
| Material | ABS+SUS304 |

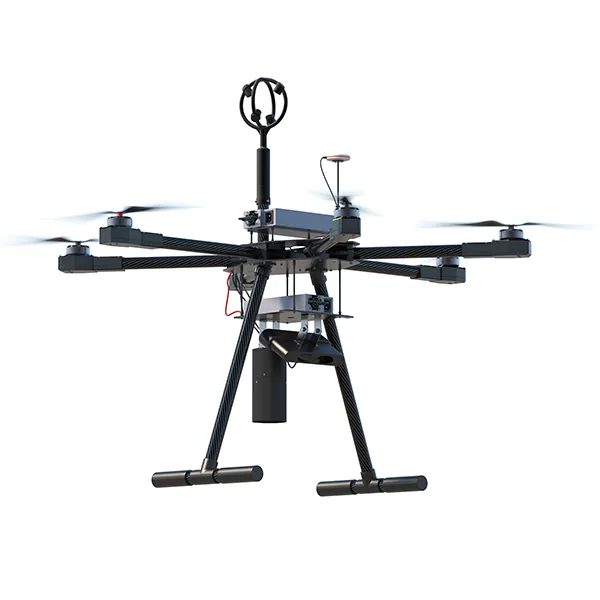

This 3D UAV anemometer is equipped with a built-in GPS positioning module, which can calculate the actual wind speed by subtracting the speed of the unmanned aerial vehicle through algorithms.
Application Scenarios:
Atmospheric research and weather forecasting
UAV-based high-altitude wind monitoring systems
Emergency response and turbulent airflow monitoring over complex terrains
Artificial weather modification and slope updraft observation
Environmental protection and microclimate studies
Just in case you need a short version for promotion:
"Precision in the Palm of Your Hand! The Mini 3D Anemometer delivers professional-grade wind and environmental data in a compact, drone-friendly design. Perfect for scientists, drone operators, and environmental researchers."
