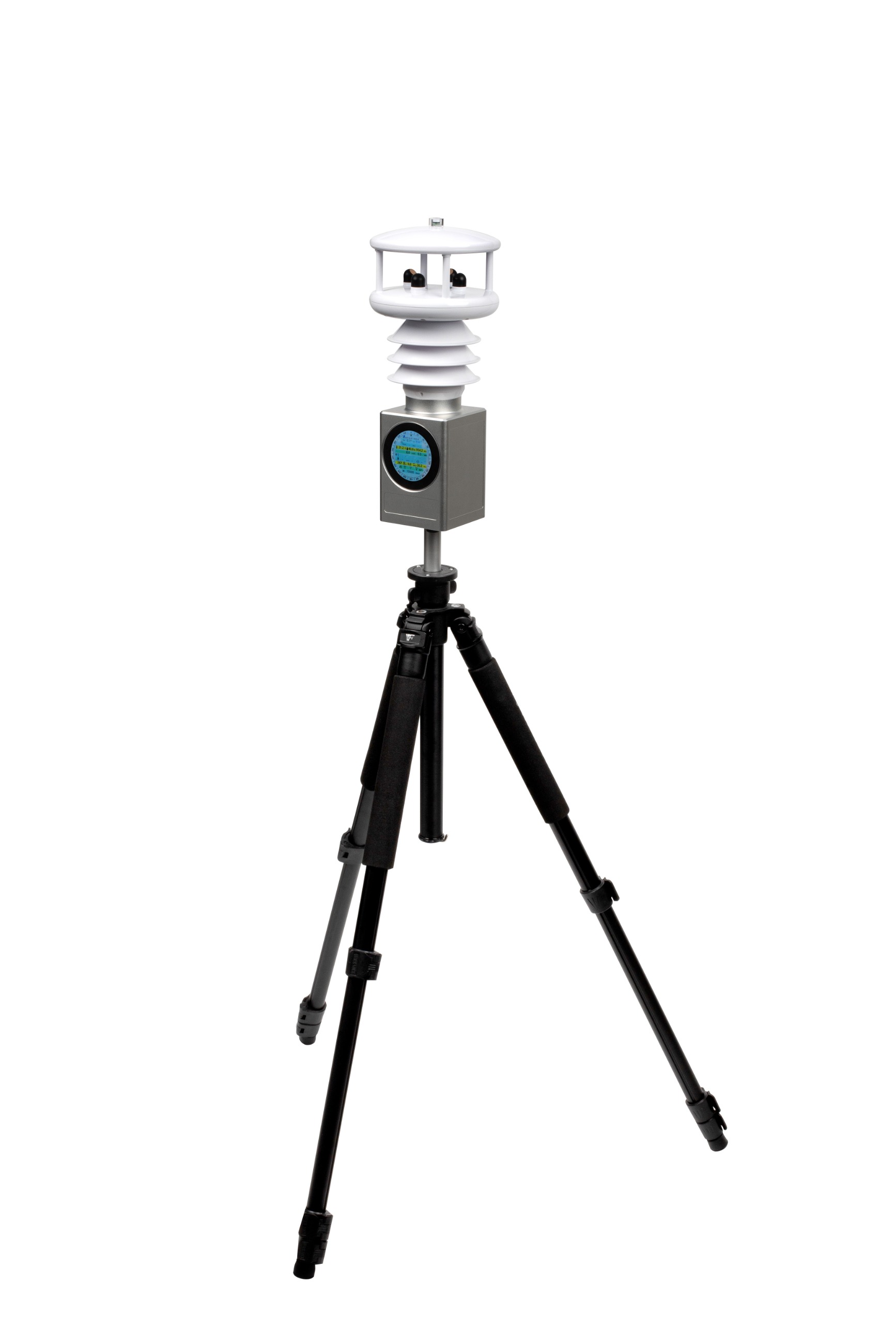

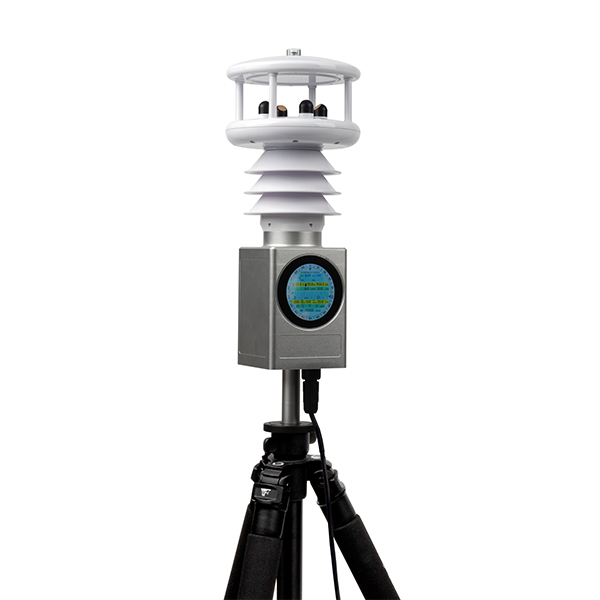

Portable Automatic Weather Station

This portable automatic weather station integrates a multi-parameter weather monitoring system, featuring added modules for data display, storage, Bluetooth wireless transmission, and power supply. It comes with a professional mounting bracket, making it highly portable, easy to install, and highly integrated.
The tripod is made of aluminum alloy, offering durability with a weight of only 1.3 kg. Attaching and detaching the weather station from the tripod is quick and straightforward. Each unit includes a dedicated carrying case for easy transportation. Equipped with a built-in rechargeable lithium battery, the station can operate independently for extended periods without an external power source. It is truly a plug-and-play device, ready to collect data as soon as it is powered on.

Availability:



Inquire

Product Description

Product Highlights:

Compact and lightweight: total weight of the sensor and tripod is only 3.2 kg
Built-in rechargeable lithium battery
Integrated SD card slot for local data storage in Excel format
Built-in 3-axis electronic compass and accelerometer for calculating azimuth relative to true north
Optional built-in GPS module
Built-in heating system in the sensor for reliable operation in extreme cold
Measures six key meteorological parameters: wind speed, wind direction, temperature, humidity, atmospheric pressure, and rainfall
Standard serial port for data display
No moving parts, ensuring maintenance-free operation

Portable Automatic Weather Station - Technical Specifications

Parameter Category	Specifications
Meteorological Parameters
Wind Speed	0 - 40 m/s, 0 - 60 m/s
Wind Direction	0 - 359°
Temperature & Humidity*	Temperature:Range -40°C to +80°C, Resolution 0.1°C Humidity:Range 0% to 100% RH, Resolution 0.1%
Air Pressure*	Capacitive MEMS sensor, Range 300 - 1100 hPa, Resolution 0.1 hPa
Rainfall*	24G radar module, Range 0 - 10 mm/min, Distinguishes rain/snow, Resolution 0.1 mm
Position Parameters
Longitude / Latitude	GPS coordinates
Electronic Compass	Built-in 3D compass and accelerometer for calculating true north azimuth
Antenna / Altitude	Height above mean sea level
General Parameters
Display	High-brightness LED
Data Transmission	Bluetooth wireless; Wired interface (Micro USB)
Data Storage	Internal storage chip, capacity for up to 365 days of data
Charging / Data Interface	Power adapter (Output: 5V-2A) / Micro USB port
Power Requirement	Rechargeable lithium-ion battery (4600mAh or 8800mAh)
Battery Life	Up to 10 hours (4600mAh) or 78 hours (8800mAh)
Display Software	Weather Station Display Software v1.0.23
