Vehicle-Mounted Environmental Monitoring System

Vehicle-Mounted Environmental Monitoring System

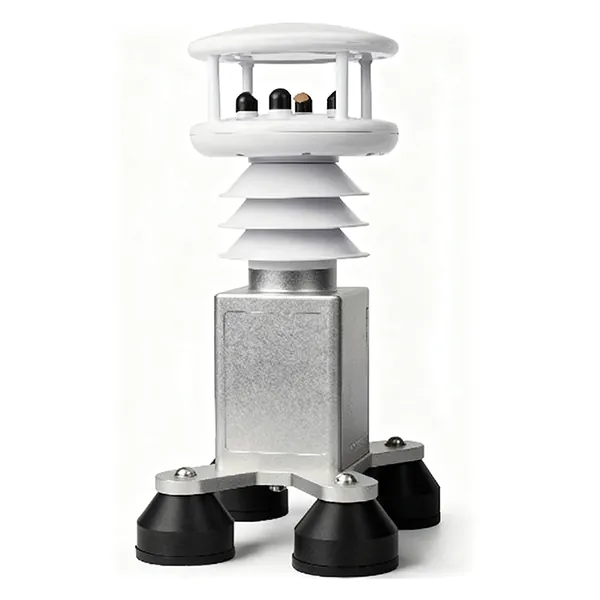

The Mobile Automatic Weather Station is a professional-grade environmental monitoring device optimized for vehicle use. It simultaneously tracks six key meteorological parameters—air temperature, humidity, wind speed, wind direction, atmospheric pressure, and rainfall—with high accuracy and real-time data display. Integrated with Bluetooth technology, it wirelessly transmits data to smartphones or laptops for easy recording and analysis. Weighing only 1.8 kg and including a dedicated carrying case, it’s the ideal portable solution for field research, emergency response, and mobile meteorological observation.
Up to 8-hour battery life
No moving parts — zero maintenance

Availability:



Inquire

Product Description

Key Selling Points

Magnetic Mounting for Easy Setup

Equipped with four high-strength rubber-coated magnets at the base, it securely attaches to vehicle roofs or other metal surfaces in seconds—no tools required.

Long Battery Life & Wireless Data Transfer

Includes a rechargeable lithium battery supporting up to 8 hours of continuous operation. Data is transmitted in real time via Bluetooth to a dedicated mobile app or computer software.

All-Weather Durability

Built-in heating elements in the sensor ensure reliable performance even in extreme cold. Rated IP65 for dust and water resistance, it performs reliably in harsh conditions.

Smart Direction Calibration

Features a 3-axis electronic compass and accelerometer to automatically correct wind direction readings relative to true north, improving data accuracy on moving platforms.

Technical Specifications

Parameters Measured	Air temperature, humidity, wind speed, wind direction, pressure, rainfall
Data Transmission	Bluetooth (compatible with iOS/Android app and PC software)
Power Supply	Built-in rechargeable lithium battery (≥8 hours runtime)
Installation	Magnetic mounting (vehicle roof/metal surface)
Protection Rating	IP65 (dust-tight and protected against water jets)
Special Functions	Sensor heating, automatic north finding with tilt compensation

Typical Applications

Vehicle-mounted weather station-BGT Field Research & Scientific Surveys – Mobile meteorological data collection for ecological and geological studies

Emergency Response & Disaster Management – Rapid deployment for real-time weather monitoring at incident sites

Agricultural & Environmental Monitoring – Climate data gathering for crop management and frost warning

Education & Training – Portable tool for meteorological courses and outdoor practical sessions

Adventure & Road Trips – Monitor real-time weather conditions during travel for enhanced safety

Equip your vehicle with the vehicle weather station—where precision meets portability.

Category		Specification
Signal Output		Bluetooth (Standard), GPRS (Optional)
Power Supply		2x 18650 Rechargeable Li-ion Batteries (Up to 24h operation) / MICRO USB Charging
Data Storage		Internal memory: 1 record per minute, up to 365 days of data
Dimensions		190 × 174 × 335 mm
Weight		1.8 kg
Mounting		4 High-strength magnets (Rubber-coated)
Operating Environment		Suitable for vehicles & outdoor environments

️ Meteorological Parameters

Parameter	Range	Resolution	Notes
Air Temperature	-40°C ~ +80°C	0.1°C	High-accuracy thermistor
Relative Humidity	0% ~ 100% RH	0.1%	Capacitive sensor
Wind Speed	0 ~ 60 m/s	0.1 m/s	True & Relative
Wind Direction	0° ~ 359°	1°	Omnidirectional, electronic compass
Atmospheric Pressure	150 ~ 1020 hPa	0.1 hPa	MEMS capacitive sensor
Rainfall	0 ~ 200 mm/h	0.01 mm	24G Radar, detects rain & snow
PM2.5 / PM10	0 ~ 1000 μg/m³	1 μg/m³	(Optional)
Visibility	20 ~ 10000 m	1 m	(Optional)

Position Parameters (Optional)

Parameter	Description
Latitude / Longitude	GPS / BeiDou Positioning
Antenna Height	Above Mean Sea Level (MSL)
Elevation	Geodetic height (Above Geoid)
Horizontal Accuracy	Positioning accuracy factor (0.5 ~ 99.9, lower is better)
Moving Speed	Speed over ground in knots or m/h
Moving Heading	irection relative to True North (0° ~ 359.9°)

Package List

Vehicle Weather Station × 1
Dedicated Carrying Case × 1
USB Charging Cable (MICRO USB) × 1
User Manual / Quick Start Guide × 1
Installation Guide / Diagram × 1
(Optional) Software / APP Download QR Code

Purchase Notes / Service

✅ Ships Nationwide (some remote areas excluded)
✅ Technical support & user guidance provided
✅ 1-Year Manufacturer Warranty, lifetime technical assistance
✅ Customization available: communication protocols, power solutions, mounting kits, etc.

Ready to Upgrade Your On-the-Go Weather Monitoring?

Choose Vehicle Weather Station – The Professional, Portable Solution for Dynamic Meteorological Insight.

Contact us for bulk orders, customization, or technical consultation today!
