BGT-AWS Multi-elements Integrated Weather Station for Outdoor Weather Monitoring

BGT-AWS Multi-elements Integrated Weather Station for Outdoor Weather Monitoring

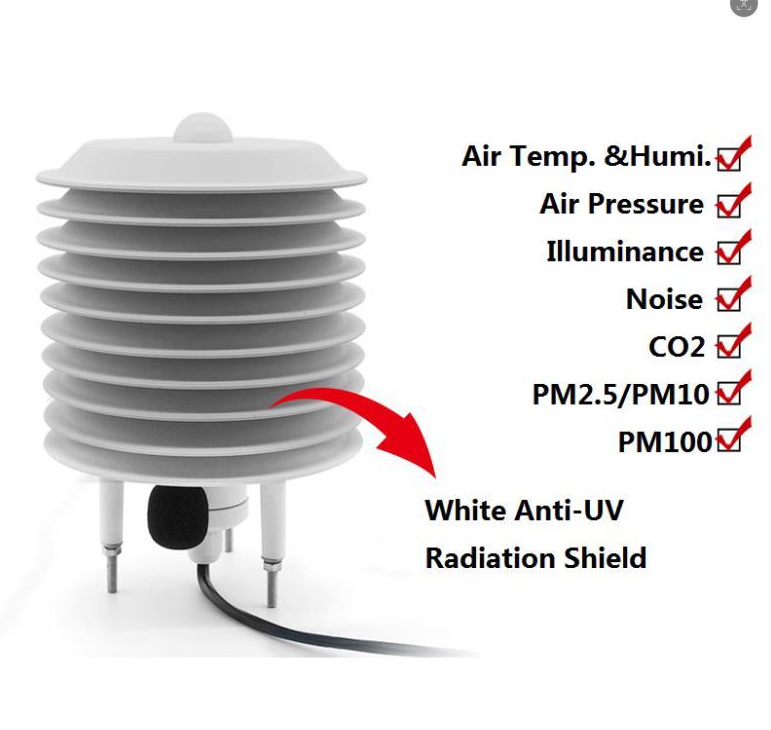

The BGT-AWS Solar Radiation Multifunctional Weather Instrument is an outdoor comprehensive meteorological data acquisition instrument. This instrument integrates measurement functions for environmental parameters such as carbon dioxide, PM2.5, PM10, PM100 (TSP), illuminance, noise, temperature, humidity, air pressure, wind speed, wind direction, and compass readings. This louvered integrated weather sensor can be easily connected to other data acquisition instruments via an RS485 output interface. The data acquisition instrument reads the sensor values via the standard Modbus protocol. Simultaneously, the device can output up to four analog signals (current and voltage outputs).

Availability:



Inquire

◀◀ Product Features ▶▶

1. High Integration: All integrated weather station are integrated into a single unit, requiring only a few screws for easy installation.

2. Convenient Operation and Simple, Aesthetically Pleasing Appearance: This type of integrated weather station features an integrated design, requiring only one signal cable for simple and convenient wiring, resulting in a clean and aesthetically pleasing overall appearance.

3. Flexible Sensor Combinations: Customers can choose from various multi‑elements sensor, to meet their specific needs. Examples include integrated temperature and humidity sensors, integrated temperature, humidity, and light intensity sensors, and integrated temperature, humidity, wind speed, and wind direction sensors.

4. Superior Materials and Strong Applicability: The plastic disc inside the protective cover is infused with UV-resistant and anti-aging materials, allowing for use in extreme weather conditions.

Home / Products / Meteorological Monitoring / Radiation Sensors / BGT-AWS Multi-elements Integrated Weather Station for Outdoor Weather Monitoring

Element	Measuring Range	Accuracy	Resolution	Power Consumption
Wind Speed	□0-45m/（Analog） □0-70m/（Digital） □Direction：0-359°	□Speed：start □speed:≤0.8m/s， ±(0.5+0.02V)m/s □Direction：±3°	Speed：0.1m/s Direction：1°	0.1W
lluminance	0200000Lux(Outdoor)	±4%	1 Lux	0.1mW
CO2	0~5000ppm	±(50ppm+5%)	1ppm	100mW
PM1.0/2.5/10	0-500μg/m3	≤100ug/m3:±10ug/m3; > 100ug/m3: ±10%	1μg/m3	0.5W
PM100	0-20000μg/m3	±30μg/m3±20%	1μg/m3	0.4W
Pressure	300~1100hPa	±1 hPa（25℃）	0.1 hPa	0.1mW
Noise	30~130dB(A)	±3dB(A)	0.1 dB(A)	100mW
Compass	0～360	±4°	1°	100mW

BGT-AWS Multi-elements Integrated Weather Station for Outdoor Weather Monitoring
