When people search for the best water level sensor, they often expect a simple answer—one product that works for everything. However, in real-world applications, the situation is far more complex. Different environments, liquid conditions, and accuracy requirements all play a critical role in determining which water level sensor will actually perform reliably over time.
A water level sensor is not just a measuring device. It is a key component in systems such as flood monitoring, groundwater management, industrial automation, and water treatment processes. If the selected water level sensor fails or provides inaccurate data, the consequences can range from minor inefficiencies to serious operational risks, including overflow, equipment damage, or even safety hazards.
That is why the real question is not simply “Which water level sensor is best?” but rather “Which water level sensor is best for your specific conditions?”
A water level sensor measures the height of a liquid relative to a reference point, but the way it does this depends entirely on the underlying technology. Some types of water level sensor rely on direct contact with the liquid, while others use non-contact methods such as sound waves or radar signals.
In practical applications, this difference is extremely important. For example, a water level sensor that performs well in a clean underground water tank may fail quickly in a wastewater environment filled with debris, foam, or corrosive substances.
Therefore, selecting a water level sensor requires understanding not only the measurement principle but also how it behaves under real environmental conditions.
In today’s market, most water level sensor solutions fall into three main categories:
Each type of water level sensor has its own strengths and limitations, and choosing between them depends on the application scenario rather than just technical specifications.
For example, BGT Hydromet offers dedicated solutions for all three technologies, including the GX-701P submersible water level transmitter, ultrasonic water level sensors for non-contact tank monitoring, and the BGT-RD101 radar level sensor designed for intelligent hydrological monitoring systems.
A submersible water level sensor operates by measuring hydrostatic pressure, which increases as the depth of the liquid increases. Because the sensor is placed directly into the water, it can provide highly accurate and stable measurements, especially in deep or static environments.
This type of water level sensor is widely used in applications such as groundwater monitoring, deep wells, and storage tanks, where long-term stability and measurement accuracy are essential. In these scenarios, the submersible water level sensor performs reliably and offers a cost-effective solution.

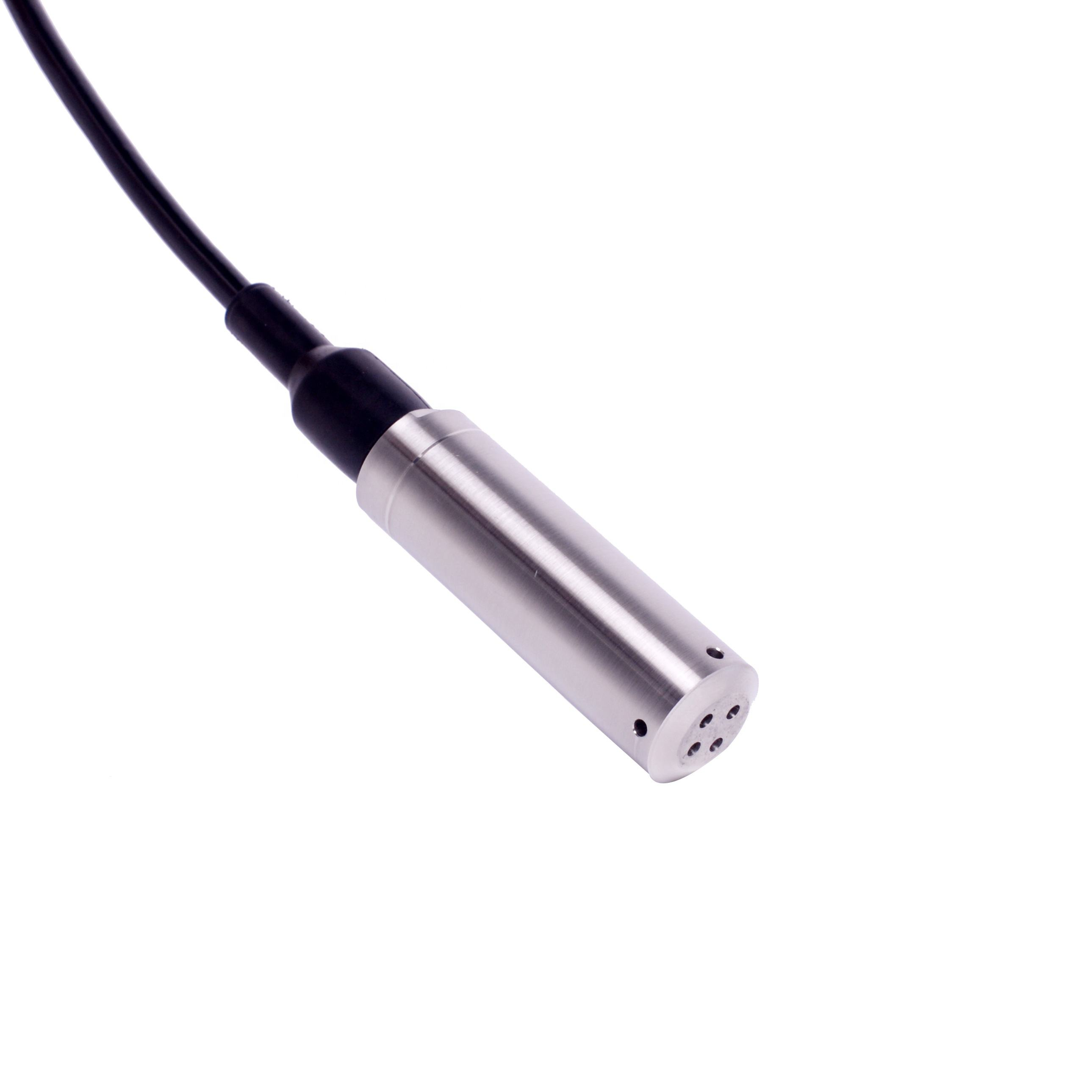

A good example is the GX-701P Submersible Water Level Transmitter, which is designed for long-term water depth monitoring in wells, reservoirs, sewage systems, and groundwater projects. With high-precision pressure sensing technology, corrosion-resistant materials, and support for multiple output signals, the GX-701P is suitable for both industrial and environmental monitoring applications.
Another advantage of the GX-701P is its ability to maintain stable performance even in deep-water installations. Compared with some non-contact solutions, hydrostatic sensors like the GX-701P are less affected by surface turbulence or foam, making them highly practical in wastewater and underground monitoring systems.
However, because the sensor must remain in constant contact with the liquid, it is also exposed to potential risks such as corrosion, sediment buildup, and contamination. In environments where the water contains chemicals, sludge, or biological growth, the maintenance requirements for a submersible water level sensor can increase significantly.
An ultrasonic water level sensor uses sound waves to measure the distance between the sensor and the liquid surface. Since it does not need to touch the liquid, it is often considered a convenient and low-maintenance option.
This type of water level sensor is commonly used in water tanks, open channels, and basic industrial systems where installation simplicity and non-contact measurement are priorities. For relatively stable environments, the ultrasonic water level sensor can deliver acceptable performance with minimal maintenance.

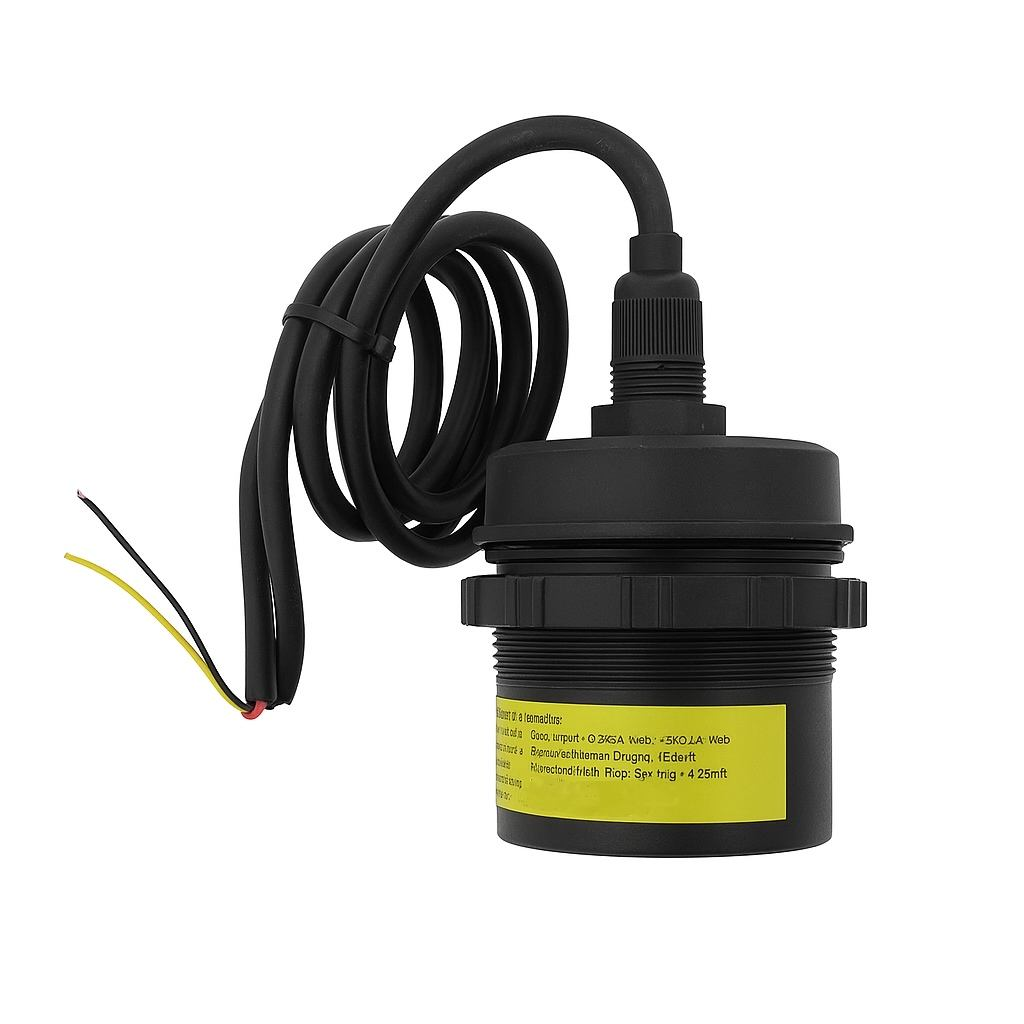

BGT Hydromet’s ultrasonic water level sensor series is designed for applications requiring easy installation and reliable non-contact measurement. These sensors are commonly used in water tanks, irrigation systems, pumping stations, and municipal water management projects where cost efficiency and operational simplicity are important.
Because ultrasonic sensors do not contact the liquid directly, they reduce the risk of contamination and simplify maintenance compared with contact-based systems. This makes them especially suitable for clean water environments.
However, their main limitation lies in sensitivity to environmental factors. Temperature changes, humidity, steam, and even foam on the liquid surface can affect the accuracy of the ultrasonic water level sensor. As a result, reliability may decrease in outdoor or harsh conditions, especially when compared to more advanced radar technologies.
A radar water level sensor represents the most advanced non-contact measurement technology currently available. Instead of using sound waves, it relies on electromagnetic signals, which makes it far less sensitive to environmental interference.
In practice, this means that a radar water level sensor can operate reliably in conditions where other sensors struggle, including heavy rain, fog, steam, turbulence, and the presence of floating debris. This level of stability makes it particularly suitable for critical applications such as river monitoring, flood warning systems, reservoirs, and industrial wastewater environments.

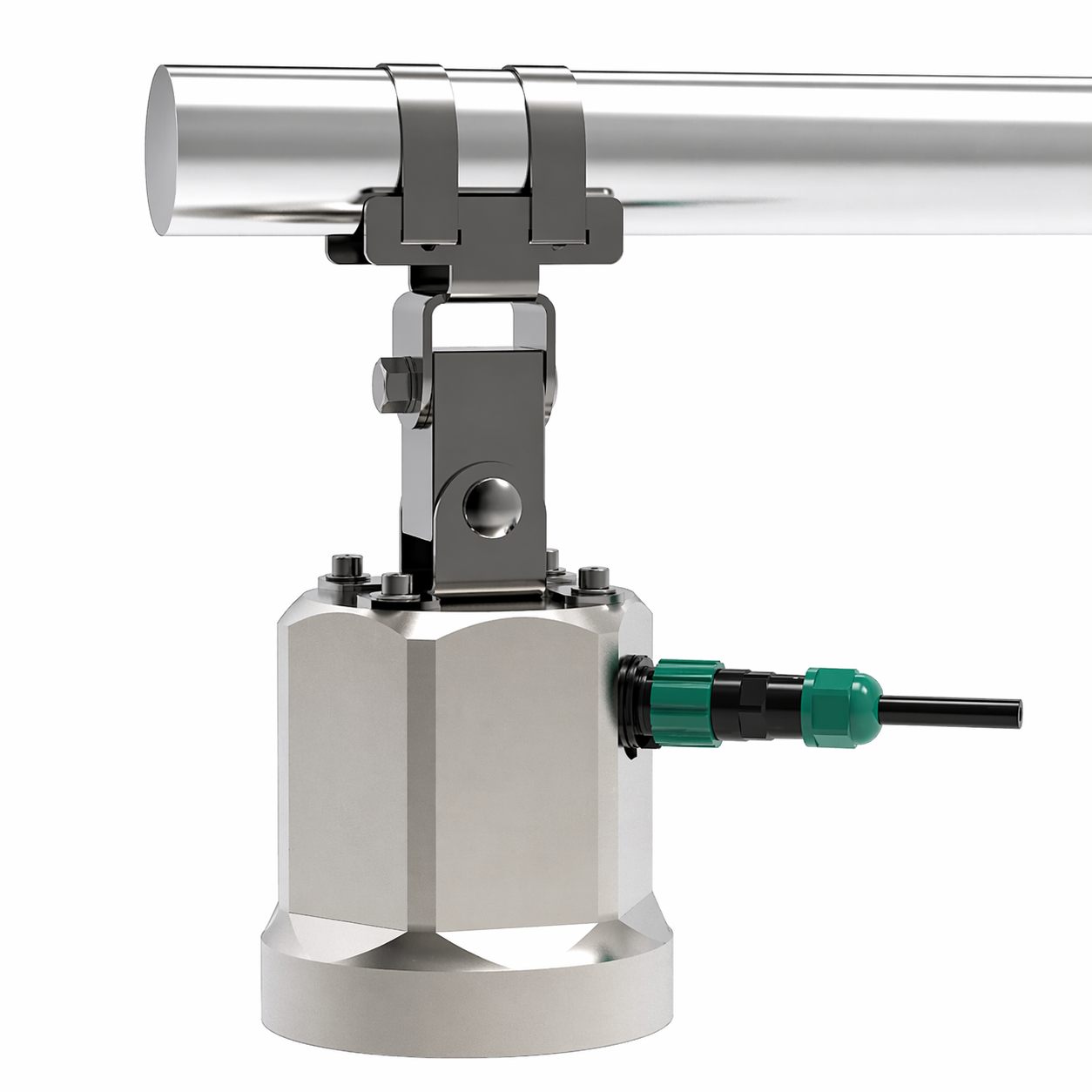

One example is the BGT-RD101 Radar Level Sensor, which uses advanced 60GHz radar technology to provide highly accurate and stable water level monitoring. Unlike traditional ultrasonic solutions, the RD101 maintains reliable performance even under severe weather conditions and complex outdoor environments.
The BGT-RD101 is particularly suitable for smart hydrology and remote monitoring systems because it supports modern communication protocols such as RS485, Modbus RTU, and IoT integration. This allows operators to perform real-time monitoring and data analysis across large-scale water management networks.
Another major advantage of radar technology is reduced maintenance. Since the sensor remains completely non-contact and is less affected by environmental interference, the long-term operational cost can often be lower despite the higher initial investment.
Because of these benefits, radar water level sensor technology is increasingly becoming the preferred solution for intelligent water monitoring infrastructure and smart city projects.
To better understand the differences, the following table compares the three main types of water level sensor:
Feature | Submersible Sensor | Ultrasonic Sensor | Radar Sensor |
|---|---|---|---|
Measurement Type | Contact | Non-contact | Non-contact |
Accuracy | High | Medium | Very High |
Maintenance | Medium | Low | Very Low |
Environmental Resistance | Medium | Low | Very High |
Installation | Moderate | Easy | Easy |
Best Application | Groundwater | Tanks | Rivers & Flood |
Reliability | Stable | Moderate | Excellent |
Example Product | GX-701P | Ultrasonic Level Sensor | BGT-RD101 |
Selecting the right water level sensor requires a clear understanding of your operational environment and performance expectations.
If your application involves clean water and stable conditions, a submersible water level sensor such as the GX-701P may provide the best balance between cost and accuracy. Its stable hydrostatic measurement technology makes it ideal for deep wells, reservoirs, and groundwater monitoring.
On the other hand, if you need a simple, non-contact solution for a controlled environment, an ultrasonic water level sensor can be a practical choice. These sensors are especially suitable for tanks and municipal water systems where ease of installation is important.
However, when reliability is critical and environmental conditions are unpredictable, a radar water level sensor like the BGT-RD101 is often the most suitable option. Its ability to maintain consistent performance regardless of weather or surface conditions makes it ideal for demanding applications such as flood monitoring and smart hydrological systems.
Different industries rely on different types of water level sensor depending on their operational requirements.
For example, groundwater monitoring systems typically use submersible water level sensor solutions like the GX-701P because they can accurately measure depth over long periods while maintaining stable performance underground.

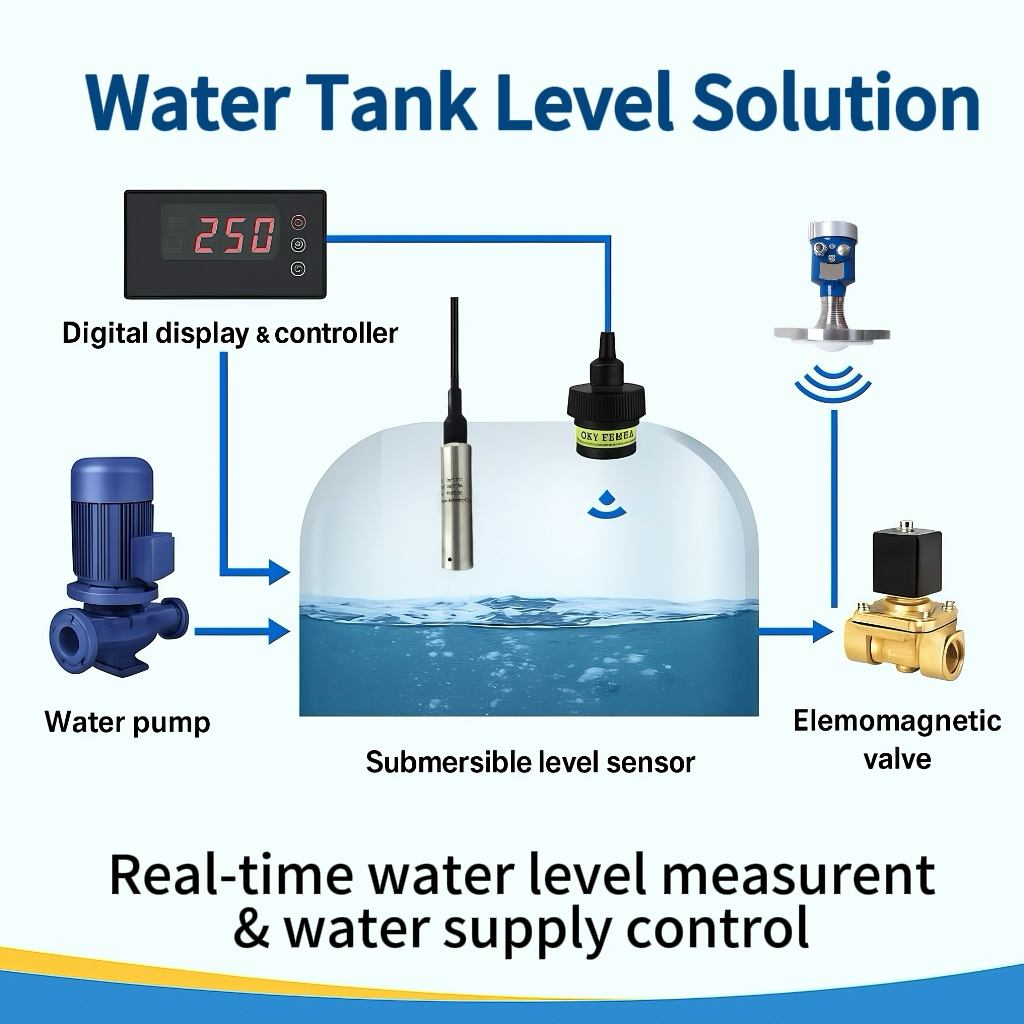

In contrast, water tank monitoring systems often benefit from ultrasonic water level sensor devices due to their ease of installation and non-contact operation, especially in clean water environments.
In large-scale environmental monitoring, such as river level tracking, flood warning systems, and smart city water infrastructure, radar water level sensor technology such as the BGT-RD101 is increasingly preferred because of its ability to deliver reliable data under extreme environmental conditions.
One of the most common mistakes is selecting a water level sensor based solely on price or basic specifications, without considering the actual working environment.
In many cases, a cheaper water level sensor may lead to higher long-term costs due to maintenance, downtime, or inaccurate data. For example, using an ultrasonic water level sensor in a high-humidity or steam-filled environment can result in unstable readings, which may compromise the entire monitoring system.
Similarly, deploying a contact-based sensor in highly corrosive wastewater without proper material protection can significantly shorten service life.
By contrast, investing in the right water level sensor from the beginning—whether it is a GX-701P for groundwater applications or a BGT-RD101 for flood monitoring—can significantly reduce operational risks and ensure long-term reliability.
As water management systems become more advanced, the role of the water level sensor is also evolving. Modern solutions increasingly integrate IoT connectivity, allowing real-time data transmission, remote monitoring, and automated control.
Technologies such as the BGT-RD101 radar level sensor already support smart monitoring architectures through digital communication interfaces and remote integration capabilities. This trend is accelerating the development of intelligent hydrological monitoring systems and smart water infrastructure worldwide.
In the future, a water level sensor will not only measure liquid levels but also contribute to intelligent decision-making systems, enabling predictive maintenance and more efficient resource management.
There is no single answer that applies to every situation. The best water level sensor depends entirely on your specific application.
For deep wells and groundwater: submersible water level sensor such as the GX-701P
For simple tank monitoring: ultrasonic water level sensor
For harsh environments and critical systems: radar water level sensor such as the BGT-RD101
Ultimately, the best water level sensor is the one that delivers reliable, accurate data under your actual operating conditions, not just in ideal scenarios.
Choosing the right water level sensor is a strategic decision that affects system performance, maintenance costs, and operational safety. By understanding the strengths and limitations of each technology, you can select a solution that meets your needs both now and in the long term.
Whether you are monitoring groundwater, managing industrial water systems, or building a smart flood warning network, selecting the right sensing technology is essential for long-term operational success.
In today’s increasingly data-driven world, a well-chosen water level sensor is not just a measurement tool—it is the foundation of an efficient and reliable water monitoring system.
