Introduction
Have you ever wondered how weather forecasts predict storms or how your smartphone knows your altitude? The answer lies in the pressure sensor. Barometric pressure sensors measure atmospheric pressure and convert this data into an electrical signal. These sensors are crucial in weather forecasting, aviation, and even in consumer electronics. In this article, we will explore the importance of barometric pressure sensors, how they work, and the applications that rely on them for accuracy and efficiency.
What Is A Barometric Pressure Sensor?
Definition and Function
A barometric pressure sensor, often called a barometer, is a device that measures the weight of the atmosphere pressing down on the Earth's surface. This pressure varies with altitude and weather patterns, making it a valuable tool in many fields. It works by converting the atmospheric pressure into an electrical signal, which is then used by devices to calculate altitude, predict weather changes, and improve location accuracy.
Common Applications
Barometric pressure sensors are integrated into numerous devices across various industries. In meteorological monitoring, these sensors track pressure changes to forecast weather. They also enhance the accuracy of GPS devices, as changes in atmospheric pressure can signal variations in altitude. In medical equipment, accurate atmospheric pressure readings are critical for adjusting devices like CPAP machines. The versatility of these sensors makes them indispensable in everyday and specialized applications.
Technology Behind Barometric Pressure Sensors
Modern barometric pressure sensors rely on Micro-Electromechanical Systems (MEMS) technology, enabling the miniaturization of the sensor while maintaining high accuracy. MEMS sensors use small silicon diaphragms that bend under atmospheric pressure, and these deformations are translated into electrical signals. The sensors are often piezoresistive or capacitive, each method offering unique benefits for different applications.
![High-Pressure Pump]( "High-Pressure Pump")
How Do Barometric Pressure Sensors Work?
The Sensing Element
At the core of barometric pressure sensors is the sensing element, typically a small diaphragm made from silicon or other flexible materials. The diaphragm's movement, caused by changes in atmospheric pressure, is translated into an electrical signal. The following table provides an overview of the diaphragm’s characteristics, materials, and performance metrics for better understanding.
| Feature | Description | Application | Key Parameters | Considerations |
| Material | Common materials used include silicon and flexible polymers that allow for accurate deformation in response to pressure changes. | Weather stations, drones, smartphones | Silicon, ceramics, and flexible polymers | Silicon is preferred for its precision and scalability. |
| Size and Dimensions | The diaphragm is typically very small, often less than 5 mm² in size, to fit in compact sensor designs. | Wearables, mobile devices, GPS systems | Size: ~3 mm diameter, thickness: ~0.2 mm | Ensure the diaphragm’s size matches device integration constraints. |
| Deformation Sensitivity | The diaphragm’s ability to flex accurately in response to atmospheric pressure changes is critical for sensor accuracy. | Environmental monitoring, medical devices | Deformation: up to 0.1 mm for pressure variations of 1 hPa | Precision of deformation is key for maintaining accuracy in fluctuating environments. |
| Pressure Sensitivity | Sensitivity refers to the sensor’s ability to detect small changes in pressure, with small deformations providing high sensitivity. | Navigation, drones, altitude measurement | Sensitivity: ~1 hPa change leads to a measurable deformation | Higher sensitivity ensures more accurate readings at low pressures. |
| Signal Conversion | The diaphragm’s movement is translated into an electrical signal via piezo-resistive or capacitive methods. | Weather forecasting, GPS devices | Signal output: Analog (voltage change) or digital (I2C/SPI) | Signal processing should be calibrated to account for environmental conditions. |
| Temperature Range | The diaphragm’s performance should remain stable across a wide temperature range for accurate readings. | Aerospace, IoT devices | Temperature range: -40°C to 85°C | Temperature stability ensures reliability in varied conditions. |
Tip: When designing devices using barometric pressure sensors, ensure the diaphragm material and size align with your device's physical constraints and required sensitivity. A small diaphragm with high sensitivity is ideal for portable, precise applications like drones and wearables.
Piezo-resistive vs. Capacitive Methods
Barometric pressure sensors generally use two methods to sense changes in atmospheric pressure: piezo-resistive and capacitive. In the piezo-resistive method, the diaphragm is integrated with a resistive bridge that changes resistance as it bends. This change in resistance is then measured to determine pressure. The capacitive method works by measuring changes in capacitance as the diaphragm moves, with these changes being translated into pressure readings. Both methods are highly effective, with the choice of method depending on the specific application.
Signal Processing
Once the diaphragm detects a pressure change, the signal is processed by an Application-Specific Integrated Circuit (ASIC). This circuit amplifies and filters the signal, compensating for temperature and other environmental factors. After processing, the signal is converted into a digital format (such as I2C or SPI) and sent to the device, where it can be used for various functions like weather prediction or altitude measurement.
Types of Barometric Pressure Sensors
Mercury Barometer
The mercury barometer, developed in the 17th century, is highly accurate and provides a direct visual representation of atmospheric pressure. It works by balancing the mercury column against the weight of the air. Despite its accuracy, mercury barometers are impractical for modern use due to their size, fragility, and the toxicity of mercury. They are primarily used in laboratory settings for precise atmospheric measurements but have been largely replaced by more portable, safer technologies in most applications.
Aneroid Barometer
The aneroid barometer is more compact and practical than the mercury barometer, using an aneroid cell that expands or contracts in response to pressure changes. This movement is amplified mechanically and displayed on a dial. While they are more portable and easier to use, aneroid barometers are less precise than mercury barometers and can suffer from inaccuracies due to wear over time. Regular calibration is needed to maintain their reliability, especially for high-precision applications such as weather forecasting.
MEMS-based Sensors
MEMS-based barometric pressure sensors have become the standard in modern technology, particularly in consumer electronics. They utilize a tiny, silicon diaphragm that bends when exposed to pressure changes. MEMS sensors are highly accurate, compact, and energy-efficient, making them ideal for integration into portable devices like smartphones, wearables, and drones. These sensors offer digital output, which simplifies data processing and integration, providing reliable pressure readings even in dynamic environments. Their low power consumption extends battery life, a key advantage in portable applications.
Features of Barometric Pressure Sensors
Accuracy and Sensitivity
Barometric pressure sensors are known for their high accuracy. They can measure atmospheric pressure with precision, making them invaluable for applications that require detailed environmental data. The sensitivity of these sensors ensures that even the smallest changes in pressure are detected, which is essential in fields like meteorological monitoring where precise data is critical.
Compact Design and Low Power Consumption
Modern barometric pressure sensors are designed with a compact size and low power consumption, making them ideal for integration into portable, battery-powered devices. The following table provides a detailed overview of the key specifications and characteristics of these sensors, focusing on their design, power usage, and common applications.
| Feature | Description | Application | Key Parameters | Considerations |
| Size | MEMS-based barometric sensors are miniaturized, allowing integration into compact devices without sacrificing performance. | Smartphones, wearables, drones | <1 cm² (typical sensor size), 3-4 mm thickness | Ensure sensor dimensions match device design constraints. |
| Power Consumption | Low power requirements are crucial for extending battery life in portable devices. | Fitness trackers, mobile devices, IoT | Power consumption: 0.6 mA (typical), 1-5 µA in low power mode | Optimal for battery-operated applications. |
| Accuracy | High precision in atmospheric pressure measurement, maintaining performance even in small form factors. | Weather stations, GPS systems, drones | Accuracy: ±1 hPa, ±0.02 m for altitude | Accuracy can vary with sensor type; calibration is essential. |
| Temperature Stability | Designed to work across a wide temperature range, ensuring stable performance in fluctuating environments. | Outdoor wearables, aviation devices | Temperature range: -40°C to 85°C | Important for use in outdoor or harsh environments. |
| Communication Interface | Typically integrates with I2C or SPI interfaces for seamless connection with other electronics. | Embedded systems, smartphones, IoT | I2C/SPI digital output | Ensure compatibility with the host device’s interface. |
| Response Time | Quick data processing and response times suitable for real-time applications. | Drones, environmental monitoring | Response time: ~10 ms | Critical for applications needing rapid feedback, such as drones. |
| Power Modes | Includes standby and active modes to conserve power when not in use. | Wearables, IoT devices | Low power mode: 1-2 µA, Active mode: ~0.6 mA | Ideal for IoT applications where battery life is a concern. |
Tip: When selecting a barometric pressure sensor for battery-powered applications, always consider the power consumption in both active and standby modes. A lower standby power consumption ensures longer battery life in devices like wearables and drones.
Temperature Stability
Temperature stability is a key factor in the performance of barometric pressure sensors, as fluctuations in temperature can cause significant measurement errors. These sensors are often designed with built-in temperature compensation mechanisms to maintain consistent accuracy across a wide temperature range, typically from -40°C to 85°C. Advanced calibration techniques are employed to ensure that the sensor’s output remains reliable even in extreme conditions, such as those encountered in high-altitude environments or harsh industrial settings. This temperature resilience is essential for applications like weather forecasting, aviation, and outdoor navigation, where environmental conditions are constantly changing.
Common Applications of Barometric Pressure Sensors
Weather Forecasting and Meteorology
Barometric pressure sensors are indispensable tools in meteorological monitoring, providing critical data for weather prediction. By continuously tracking pressure fluctuations, meteorologists can anticipate weather changes, including the arrival of storms or periods of calm. A rapid pressure drop, for example, typically indicates an approaching low-pressure system, which is often associated with severe weather like storms or hurricanes. These sensors are integrated into advanced weather stations, enabling the timely issue of warnings, enhancing safety measures, and facilitating better preparedness for weather events that impact daily life and infrastructure.
Altitude Measurement in Aviation and GPS Devices
In aviation, barometric pressure sensors are vital for determining altitude, especially during flight navigation. These sensors act as altimeters, measuring the air pressure relative to sea level. As an aircraft ascends, air pressure decreases, and the sensor calculates altitude based on this pressure difference. In GPS devices, barometric sensors improve accuracy by calculating elevation, which is crucial for outdoor activities and navigation in mountainous areas. They provide more accurate altitude measurements than GPS alone, especially in regions with poor satellite coverage, ensuring safe and precise navigation.
Consumer Electronics
In consumer electronics, barometric pressure sensors enhance functionality by improving location accuracy and fitness tracking. Smartphones and wearables use these sensors to determine the altitude of the device, making it possible to track elevation during activities like hiking or stair climbing. Additionally, these sensors contribute to health monitoring by detecting pressure changes that can influence joint health or even mood, as some individuals are sensitive to atmospheric pressure shifts. As the demand for more personalized and accurate data increases, these sensors play a crucial role in providing real-time environmental insights.

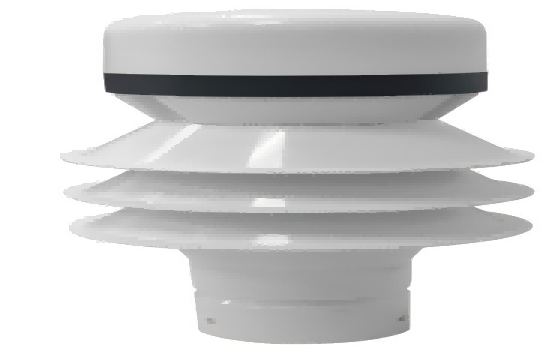

![Sensor]( "Sensor")
Advantages of Using Barometric Pressure Sensors
High Accuracy in Various Conditions
Barometric pressure sensors are engineered for high accuracy in varying environmental conditions, which is essential for maintaining precision in diverse applications. Their accuracy remains stable even in extreme conditions such as high altitudes or fluctuating temperatures, ensuring reliable performance in aviation and meteorological monitoring. For instance, in aviation, small variations in atmospheric pressure can significantly affect flight altimeter readings, making sensor accuracy critical for safe navigation. Additionally, these sensors are calibrated to compensate for temperature and humidity changes, ensuring stable measurements.
Versatility Across Industries
Barometric pressure sensors are integral across industries, from aviation and automotive systems to healthcare and IoT applications. In automotive systems, they aid in engine management, adjusting for air pressure to optimize fuel efficiency. In healthcare, sensors ensure devices like ventilators and CPAP machines are calibrated to ambient atmospheric pressure, supporting patient safety. The integration of these sensors into consumer electronics, like smartphones and wearables, enhances user experience by providing accurate altitude and location data. Their ability to function in both industrial and personal settings underscores their versatility and importance.
Real-time Data Processing
Real-time data processing is a defining feature of modern barometric pressure sensors, enabling quick reactions to environmental changes. This capability is particularly useful in dynamic applications such as weather stations, where rapid shifts in atmospheric pressure can signal incoming storms or weather events. Drones, for instance, rely on these sensors for stable flight by constantly adjusting altitude in response to pressure changes. By processing data instantaneously, these sensors help systems react promptly, enhancing safety and efficiency in time-sensitive environments, from aviation to disaster management.
Conclusion
Barometric pressure sensors are essential tools used across various industries, from meteorological monitoring to consumer electronics. Their ability to provide accurate readings, small size, and low power consumption make them ideal for applications like weather forecasting, GPS, and aviation. BGT Hydromet offers advanced barometric pressure sensors that ensure high accuracy and reliability, making them a valuable asset for improving system functionality. With their versatility and precision, BGT Hydromet products are perfect for enhancing your projects and applications.
FAQ
Q: What is a barometric pressure sensor?
A: A barometric pressure sensor measures atmospheric pressure and converts it into an electrical signal, commonly used in applications like meteorological monitoring, GPS devices, and weather forecasting.
Q: How does a pressure sensor work?
A: A pressure sensor works by detecting pressure changes through a diaphragm that flexes under atmospheric pressure, which is then converted into an electrical signal for various devices.
Q: Why is a barometric pressure sensor important in meteorological monitoring?
A: Barometric pressure sensors help track pressure changes to predict weather patterns, essential for forecasting storms and improving preparedness in meteorological monitoring.
Q: What are the advantages of using a barometric pressure sensor?
A: The advantages include high accuracy, compact design, low power consumption, and versatility across industries like aviation, weather monitoring, and consumer electronics.
Q: How do barometric pressure sensors help in GPS devices?
A: Barometric pressure sensors enhance location accuracy by determining altitude, improving the precision of GPS systems and making them more reliable in varying environmental conditions.
