How Do Humidity Sensors Work

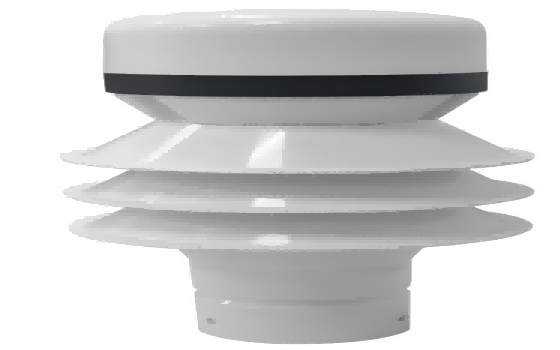

Introduction

Have you ever wondered how devices can measure moisture in the air? As humidity impacts comfort, energy, and safety, it’s crucial to understand how sensors track it. In this article, we’ll explore how humidity sensors detect moisture, convert physical changes into electrical signals, and provide actionable data. You'll learn how they support systems like HVAC, industrial automation, and weather monitoring.

What Do Humidity Sensors Measure in Real Conditions?

Relative humidity vs absolute humidity in Humidity Sensors

Humidity Sensors measure the amount of water vapor present in air, but they do so using different reference models. Relative humidity compares current moisture levels to the maximum air can hold at a specific temperature. Absolute humidity measures the actual mass of water vapor in a defined air volume. Most commercial Humidity Sensors focus on relative humidity because it reflects human comfort, material behavior, and system performance more directly. It allows users to understand moisture conditions in practical, comparable terms across environments.

How temperature affects humidity readings and sensor interpretation

Temperature plays a central role in how Humidity Sensors interpret moisture levels. Warm air holds more water vapor than cool air, so identical moisture amounts can produce different relative humidity values. To ensure accurate readings, many Humidity Sensors integrate temperature measurement and compensation logic. This approach aligns humidity output with real conditions, especially in HVAC control, industrial processing, and meteorological monitoring, where small temperature shifts can influence system decisions and forecasts.

Why most Humidity Sensors are designed to measure relative humidity

Relative humidity remains the most widely used measurement because it connects moisture data to real-world outcomes. It explains condensation risk, comfort levels, and material stability in a clear percentage format. Humidity Sensors designed for relative humidity integrate easily with control systems, dashboards, and regulatory standards. This consistency makes them ideal for buildings, factories, and weather stations that rely on continuous, comparable moisture data across time and location.

Core Working Principle Behind Humidity Sensors

Moisture absorption as the foundation of Humidity Sensors

At the core of every Humidity Sensor is a material that reacts to moisture. These hygroscopic materials absorb or release water molecules until they reach equilibrium with surrounding air. This interaction occurs continuously as humidity changes. The material response forms the physical basis for measurement. Whether polymer films, metal oxides, or conductive layers, the sensing element acts as a translator between air moisture and measurable physical change.

How physical moisture changes become electrical signals

Moisture in the air is not measured directly. Instead, Humidity Sensors rely on predictable physical interactions between water vapor and sensing materials. These interactions create stable electrical changes that can be measured, processed, and translated into reliable humidity data for real-time monitoring and control.

Conversion Mechanism	Typical Sensing Materials	Key Electrical Parameter	Physical Change Detected	Typical Reference Values	Common Applications	Technical Considerations
Capacitance change (Capacitive)	Polymer films, metal oxide layers	Capacitance (pF)	Dielectric constant increases as moisture is absorbed	Approx. 0.1–1 pF per %RH	HVAC systems, weather stations, industrial control	Requires temperature compensation, avoid condensation
Resistance change (Resistive)	Ionic salt–based conductive polymers	Resistance (Ω)	Ion mobility increases with absorbed water	Resistance typically shifts from 10⊃3; to 10⁷ Ω across RH range	Appliances, portable devices	Sensitive to surface contamination
Thermal conductivity change (Thermal)	Platinum RTDs, thermistors	Thermal conductivity, temperature difference (°C)	Heat transfer varies between dry and moist air	Temperature difference usually below 5 °C	Drying processes, compressed air systems	Suited for absolute humidity measurement
Electrical signal output	Integrated electrodes and circuits	Voltage or digital signal	Analog change converted to usable output	0–3.3 V, I⊃2;C or SPI digital output	Automation and monitoring systems	Interface compatibility is critical
Dynamic response behavior	Integrated sensor ICs	Response time (s)	Adsorption and desorption speed	Typical response time 5–30 s	Environments with changing humidity	Airflow affects response performance

Tip：For precision-driven systems, focus on capacitive Humidity Sensors with clearly specified capacitance sensitivity (pF/%RH) and built-in temperature compensation, as these parameters strongly influence long-term stability and control accuracy.

Converting sensing reactions into readable humidity values

Raw electrical changes alone are not useful. Internal electronics process these signals, apply calibration curves, and adjust for temperature effects. The result becomes a clean humidity value, usually expressed as a percentage. Modern Humidity Sensors handle this conversion internally, delivering stable digital output that systems can trust for automation, monitoring, and reporting tasks.

How Capacitive Humidity Sensors Work

Hygroscopic dielectric materials used in capacitive Humidity Sensors

Capacitive Humidity Sensors rely on a thin hygroscopic dielectric layer placed between two conductive electrodes. This layer often consists of polymer or metal oxide materials engineered for predictable moisture absorption. When water vapor enters the material, its dielectric constant changes. This design allows the sensor to respond smoothly across a wide humidity range while maintaining structural stability.

Capacitance variation caused by absorbed water vapor

As the dielectric layer absorbs moisture, its ability to store electrical charge increases. This change alters the capacitance between electrodes. Sensor circuitry measures the capacitance shift and links it directly to humidity levels. Because capacitance responds linearly to moisture absorption, capacitive Humidity Sensors provide consistent and repeatable readings even under fluctuating environmental conditions.

Why capacitive Humidity Sensors are widely adopted in modern systems

Capacitive Humidity Sensors dominate modern applications due to their accuracy, fast response, and compatibility with digital systems. They perform well in HVAC units, consumer electronics, industrial automation, and meteorological monitoring stations. Their stability over time supports long-term data analysis and system control, making them a preferred choice for environments requiring reliable humidity insight.

How Resistive Humidity Sensors Detect Moisture

Ion-based conductive layers inside resistive Humidity Sensors

Resistive Humidity Sensors utilize materials such as polymers or salts that absorb moisture, which in turn affects the ionization of the compound. This ionic movement facilitates a change in the material's electrical conductivity. Electrodes placed across the sensing material measure resistance variations, allowing the sensor to directly correlate the humidity level in the air. The performance of these materials is carefully selected for fast ionic response and stable long-term behavior, ensuring reliable measurements in a range of conditions.

Resistance changes triggered by humidity variation

As humidity increases, absorbed water enhances the movement of ions within the sensing material, lowering resistance. Conversely, as the air dries, resistance increases due to the reduced ion mobility. The sensor detects these fluctuations in resistance, which are proportional to changes in humidity. This simple yet effective mechanism ensures that even small moisture variations can be detected accurately. The ease of fabrication and robustness of resistive sensors make them a popular choice for real-time applications where cost-effectiveness and size are important factors.

Typical applications where resistive Humidity Sensors are used

Resistive Humidity Sensors are ideal for low-cost, portable applications due to their simple design and low power consumption. They are commonly found in household appliances such as dehumidifiers, refrigerators, and air purifiers. Additionally, their compact size and efficient energy use make them suitable for environmental monitoring in small devices, where high precision is not as critical. These sensors are widely used in educational, home, and light industrial settings where trends in humidity need to be tracked without the need for extensive calibration or complex processing.

How Thermal Conductivity Humidity Sensors Measure Moisture

Dual-sensor structure using dry reference and ambient air

Thermal conductivity Humidity Sensors rely on matched sensing elements to maintain measurement stability across wide operating conditions. The sealed reference sensor provides a constant thermal response, while the exposed sensor reacts to moisture-driven changes in air composition. By comparing these two signals, the system isolates humidity effects from ambient temperature variation. This differential structure improves measurement repeatability and allows accurate moisture evaluation even when surrounding temperatures fluctuate rapidly.

Relationship between thermal conductivity and water vapor content

Water vapor has a lower thermal conductivity than dry air components such as nitrogen and oxygen. As moisture concentration increases, overall air thermal conductivity decreases in a predictable manner. Thermal Humidity Sensors quantify this change by monitoring heat dissipation differences between sensors. Because this relationship depends on gas composition rather than saturation level, the output reflects absolute humidity, making it valuable for processes requiring mass-based moisture control.

Scenarios best suited for thermal Humidity Sensors

Thermal Humidity Sensors are well suited for environments where moisture levels must be controlled independently of temperature. Common uses include compressed air monitoring, industrial drying lines, and high-temperature gas streams. Their operating principle supports stable measurement in conditions involving heat, pressure, or chemical exposure. This makes them effective in applications where material behavior or process safety depends on precise water vapor content rather than comfort-based humidity values.

From Sensor Element to Digital Output

Role of integrated circuits in modern Humidity Sensors

Integrated circuits allow Humidity Sensors to combine sensing, processing, and compensation functions within a compact architecture. On-chip amplifiers stabilize weak signals from the sensing layer, while digital calibration logic corrects nonlinear response across the full humidity range. Many ICs also store factory calibration coefficients, ensuring consistent output between devices. This integration improves repeatability, reduces external component requirements, and enables scalable deployment in building automation and industrial monitoring systems.

Analog-to-digital signal conversion inside Humidity Sensors

Analog-to-digital conversion transforms continuous electrical changes into discrete, system-readable values. High-resolution converters inside Humidity Sensors preserve small signal variations, allowing accurate tracking of gradual humidity shifts. Digital sampling reduces susceptibility to electromagnetic interference compared to analog transmission. Consistent digital output also simplifies data logging and analytics, supporting trend analysis, control optimization, and long-term environmental performance evaluation.

Delivering real-time humidity data to control systems

Real-time humidity data enables closed-loop control in HVAC and industrial environments. Sensors transmit measurements at defined intervals, allowing controllers to respond quickly to changing moisture conditions. Standard communication interfaces support seamless integration with building management systems and industrial networks. Continuous data flow also enables condition-based maintenance, where abnormal humidity patterns signal airflow issues, leaks, or process deviations before system performance is affected.

Why Humidity Sensors Enable Precise Environmental Control

Using Humidity Sensors for HVAC and climate regulation

In modern HVAC design, Humidity Sensors enable control strategies that separate sensible heat from latent moisture loads. By monitoring humidity directly, systems can optimize ventilation rates, adjust dehumidification cycles, and maintain target comfort zones without unnecessary temperature shifts. This approach supports demand-controlled ventilation and reduces reliance on constant air volume operation. Accurate humidity feedback also limits condensation on coils and ducts, helping maintain system cleanliness and stable airflow performance over time.

Moisture monitoring for process stability and product quality

In manufacturing and storage, humidity influences material behavior and product consistency. Humidity Sensors provide real-time insight that supports stable production conditions. Industries use this data to protect sensitive goods and maintain repeatable outcomes.

Aspect	Description
Application Context	Manufacturing and storage environments where humidity affects materials and products
Role of Humidity Sensors	Provide continuous, real-time moisture data
Impact on Materials	Help control moisture-sensitive material behavior
Impact on Products	Maintain consistent product quality and specifications
Operational Benefit	Support stable, repeatable production conditions
Business Value	Protect sensitive goods and reduce quality variation

Improving energy efficiency and indoor comfort with Humidity Sensors

Humidity Sensors play a direct role in optimizing energy use by enabling systems to control latent heat, not just air temperature. When humidity is managed within an optimal range, cooling systems require less energy to remove excess moisture, reducing compressor run time and peak loads. Proper humidity control also prevents overcooling, which often occurs when temperature alone is used as a control variable. For occupants, stable humidity levels improve thermal comfort, reduce dryness or clamminess, and support healthier indoor air conditions.

Conclusion

Humidity Sensors are vital in converting moisture into actionable data. By utilizing different technologies like capacitive, resistive, and thermal conductivity sensors, they provide reliable readings for various environments. These sensors enable better system selection, improved control in HVAC and industrial processes, and precise moisture tracking in meteorological monitoring. BGT Hydromet offers advanced humidity sensor solutions known for their accuracy and stability, helping businesses optimize operations and enhance environmental conditions efficiently.

FAQ

Q: What are Humidity Sensors used for?

A: Humidity Sensors are used to measure moisture in the air. They help regulate indoor climate, ensure product quality in manufacturing, and support meteorological monitoring for weather forecasting.

Q: How do Humidity Sensors work?

A: Humidity Sensors detect moisture by measuring changes in electrical properties, such as capacitance, resistance, or thermal conductivity, when they absorb water vapor from the air.

Q: Why are Humidity Sensors important in HVAC systems?

A: Humidity Sensors are essential in HVAC systems to optimize energy efficiency and improve indoor air quality by maintaining the ideal humidity levels for comfort and health.

Q: How do Humidity Sensors help with meteorological monitoring?

A: Humidity Sensors provide precise moisture readings that are crucial for weather stations, helping to predict precipitation and other atmospheric conditions in meteorological monitoring.

Q: What are the advantages of using Humidity Sensors?

A: Humidity Sensors enhance comfort, energy efficiency, and product quality by providing real-time humidity data that supports timely adjustments in various environments.

Q: How do you troubleshoot Humidity Sensors?

A: If Humidity Sensors show inaccurate readings, check for dust accumulation, contamination, or improper calibration. Regular maintenance ensures consistent performance.
