Acoustic-Optical-Electronic Monitoring and Alarm Station for Flash Floods
Acoustic-Optical-Electronic Monitoring and Alarm Station for Flash Floods Acoustic-Optical-Electronic Monitoring and Alarm Station for Flash Floods
Acoustic-Optical-Electronic Monitoring and Alarm Station for Flash Floods Acoustic-Optical-Electronic Monitoring and Alarm Station for Flash Floods

loading

Acoustic-Optical-Electronic Monitoring and Alarm Station for Flash Floods

Share to:
facebook sharing button
twitter sharing button
wechat sharing button
whatsapp sharing button
sharethis sharing button
The ​​On-Site Acoustic-Optical Monitoring and Alarm Station​​ integrates traditional monitoring stations with acoustic-optical alarm functions. It provides real-time monitoring of rainfall and water levels in small watersheds, triggering ​​automatic alarms (voice, flashing lights, etc.)​​ when thresholds are exceeded. The system supports ​​multi-channel data transmission (Ethernet, 4G, BeiDou, LoRaMesh)​​ and features ​​intelligent voice response​​, enabling precise early warnings via cloud-based alerts.
Availability:


◀◀  Key Selling Points  ▶▶


  1. Real-Time Monitoring & Alarm

    • Measures rainfall, water level, and flow velocity with high precision.

    • Automatically triggers audible (siren) and visual (flashing lights) alarms when thresholds are exceeded.

  2. Multi-Channel Data Transmission

    • Supports Ethernet, 4G, BeiDou, LoRaMesh for reliable communication.

  3. Intelligent Voice Response

    • Pre-configured multi-level alert escalation via cloud-based warning apps.

  4. Multi-Station Linkage

    • Upstream alarms trigger simultaneous downstream alerts for coordinated evacuation.

  5. Flexible Power Supply

    • Solar-powered, battery-backed, or AC-powered (optional) for resilience.

  6. Remote Management

    • Supports remote configuration, OTA updates, and real-time status monitoring.

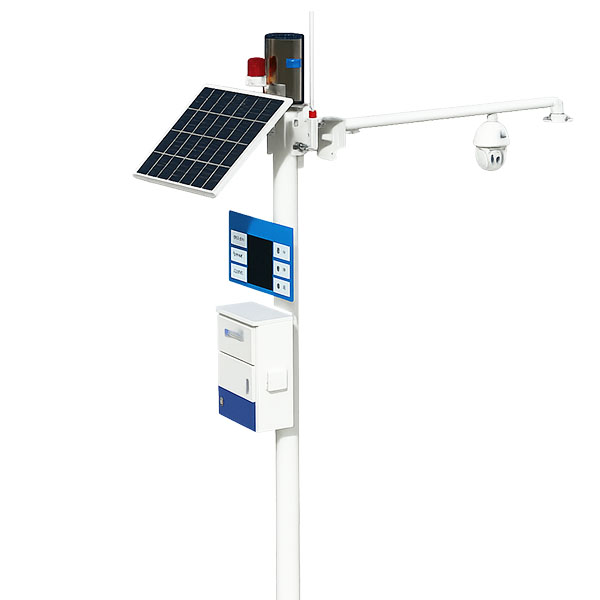

      Acoustic-Optical-Electronic Alarm Station01

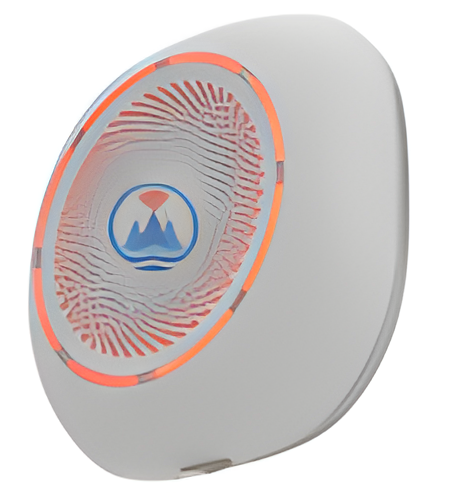

      		 Flash Flood Early Warning alarm

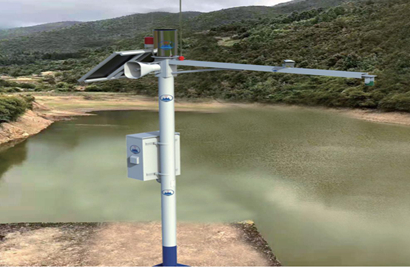

      Acoustic-Optical-Electronic Alarm Station
      		 Cloud Alarm Device





◀◀  Product Parameters  ▶▶



Main Control Unit

Parameter Specification
Working Voltage DC 9~24V
Standby Power Consumption ≤10mA
Compliance SL651-2014 (Hydrological Monitoring Protocol)
Operating Temperature -10°C ~ 55°C
MTBF ≥50,000 hours

Tipping Bucket Rain Gauge

Parameter Specification
Rain Collector Diameter Φ200±0.0mm
Resolution 0.5mm
Accuracy ≤±4%
Rainfall Intensity Range 0~4mm/min (max 8mm/min)
Material Stainless Steel

Radar Water Level Sensor

Parameter Specification
Range 0.1~45m
Frequency 80GHz
Accuracy ±3mm
Antenna Type Planar Array (Beam Angle ≤8°)
Protection IP68

Alarm Light & Speaker

Component Specification
Alarm Light ≥1000lx (Red LED)
Speaker 2×50W (4Ω impedance)

Display & Camera

Component Specification
LED Display 440×800mm (64×64 dot matrix)
Surveillance Camera 2MP, 23× optical zoom, H.265 encoding

Equipment List (English Table)

No. Item Qty Specifications Unit Price (USD)
1 Tipping Bucket Rain Gauge 1 Φ200mm, ±4% accuracy ~
2 Radar Water Level Sensor 1 0.1–45m, ±3mm accuracy ~
3 Main Control Unit 1 SL651-2014 compliant ~
4 Alarm Light 1 Red LED, ≥1000lx ~
5 Speaker 2 50W, 4Ω ~
6 LED Display Panel 1 440×800mm, 64×64 dot matrix ~
7 PTZ Camera 1 2MP, 23× zoom ~
8 Solar Panel 1 100W, 18V ~
9 Battery 1 12V/100Ah ~
10 Waterproof Enclosure 1 Integrated with control unit ~
11 Solar Charge Controller 1 MPPT ~
12 Lightning Arrester 1 Surge protection ~
13 Data SIM Card 1 100GB/month (3-year plan) ~
14 Mounting Pole & Brackets 1 3m height, galvanized steel ~
15 Grounding Kit 1 ≤10Ω resistance ~
Total

Please contact sales!

For Communication Protocol, here for more.


◀◀  Application Scenarios  ▶▶


  1. Mountainous Areas

  2. Deployed upstream to monitor flash floods and trigger alarms for downstream communities.

    Flood-Prone Villages

    • Installed near bridges, narrow river channels, or residential zones for early evacuation alerts.

  3. Emergency Response Centers

    • Linked to cloud-based warning apps for real-time alerts to local authorities.

  4. Public Education

    • Used for disaster preparedness drills via voice broadcasts and LED displays.
