High-Sensitivity Acoustic Sensor for Noise Detection

A noise sensor is a device used for detecting and monitoring noise. It realizes the monitoring and control of noise by converting the vibration of sound waves into electrical signals. The core component of the noise sensor is a highly sensitive electret condenser microphone.
Integrated Environment Temperature Humidity Pressure Noise Sound Voice Level Detection Sensor Noise Measuring Instrument

The noise sensor is equipped with a capacitive electret microphone that is sensitive to sound. When sound waves cause the electret film to vibrate, it will lead to a change in capacitance, thereby generating a corresponding tiny voltage. This voltage variation realizes the conversion from sound signals to electrical signals.

Availability:

Quantity:



Inquire

◀◀ Key Selling Points ▶▶

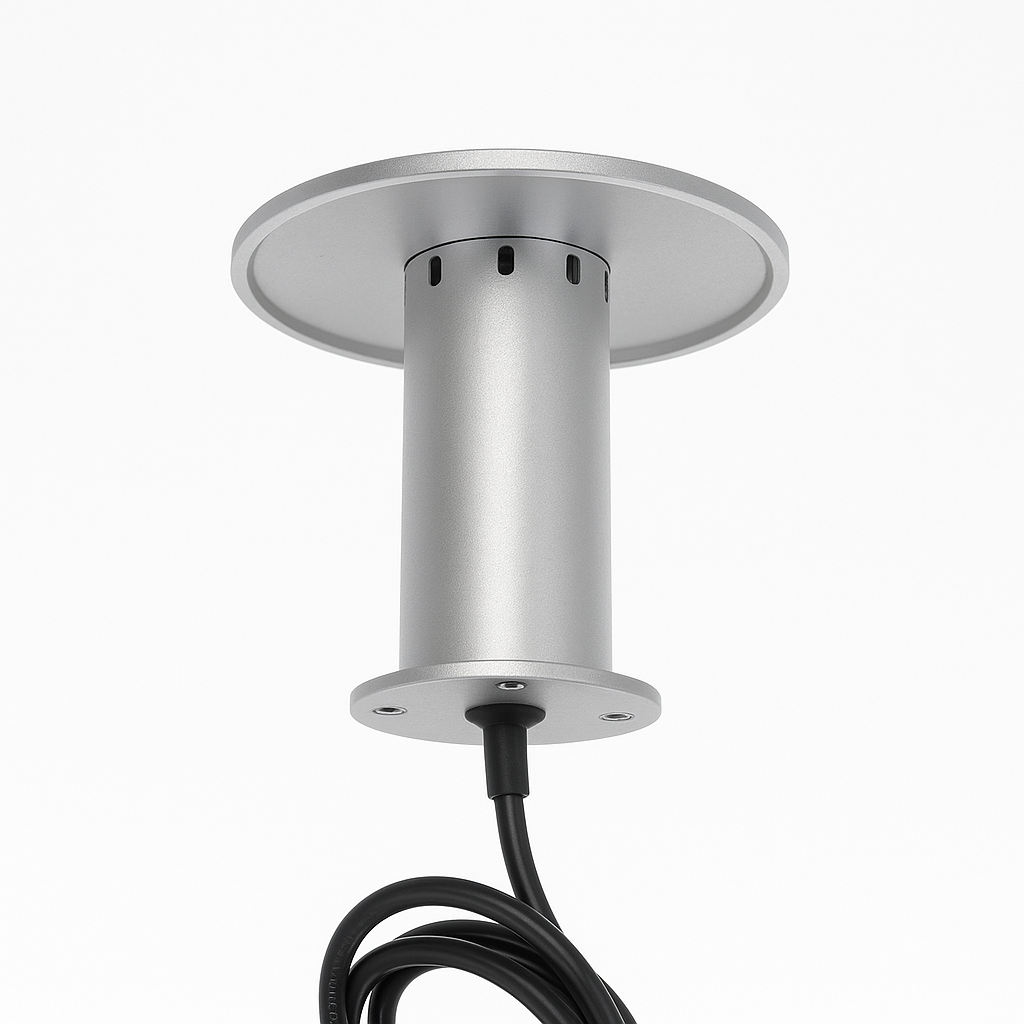

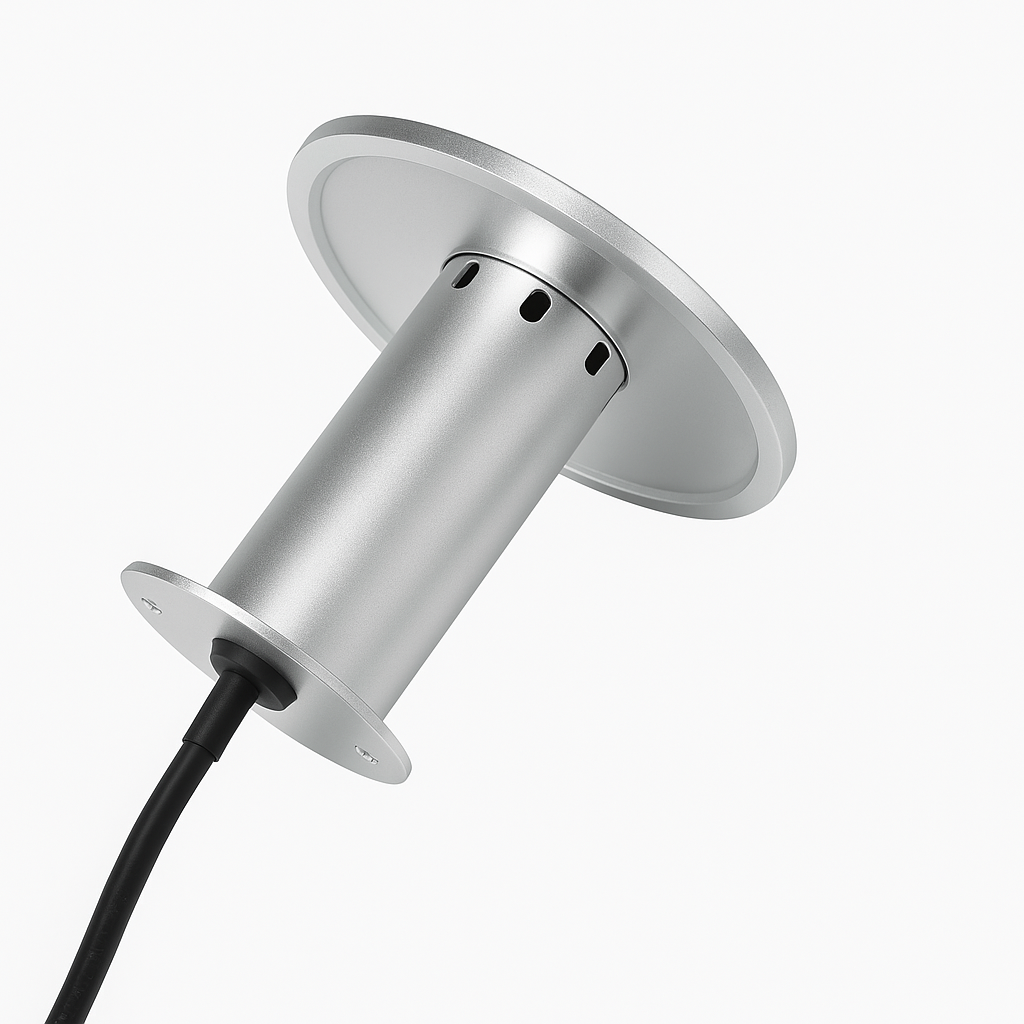

Sleek industrial design with an all-aluminum construction.
More compact dimensions, with ±1.5 dB accuracy and 0.1 dB resolution.
Support customization of more parameters

◀◀ Product Parameters ▶▶

General parameters - Suitable for all series

Parameter	Details
Operating Environment	-20℃~+60℃@(10%~90%)RH
Storage	-20℃~+80℃@(10%~90%)RH
Shell Material	Aluminum alloy

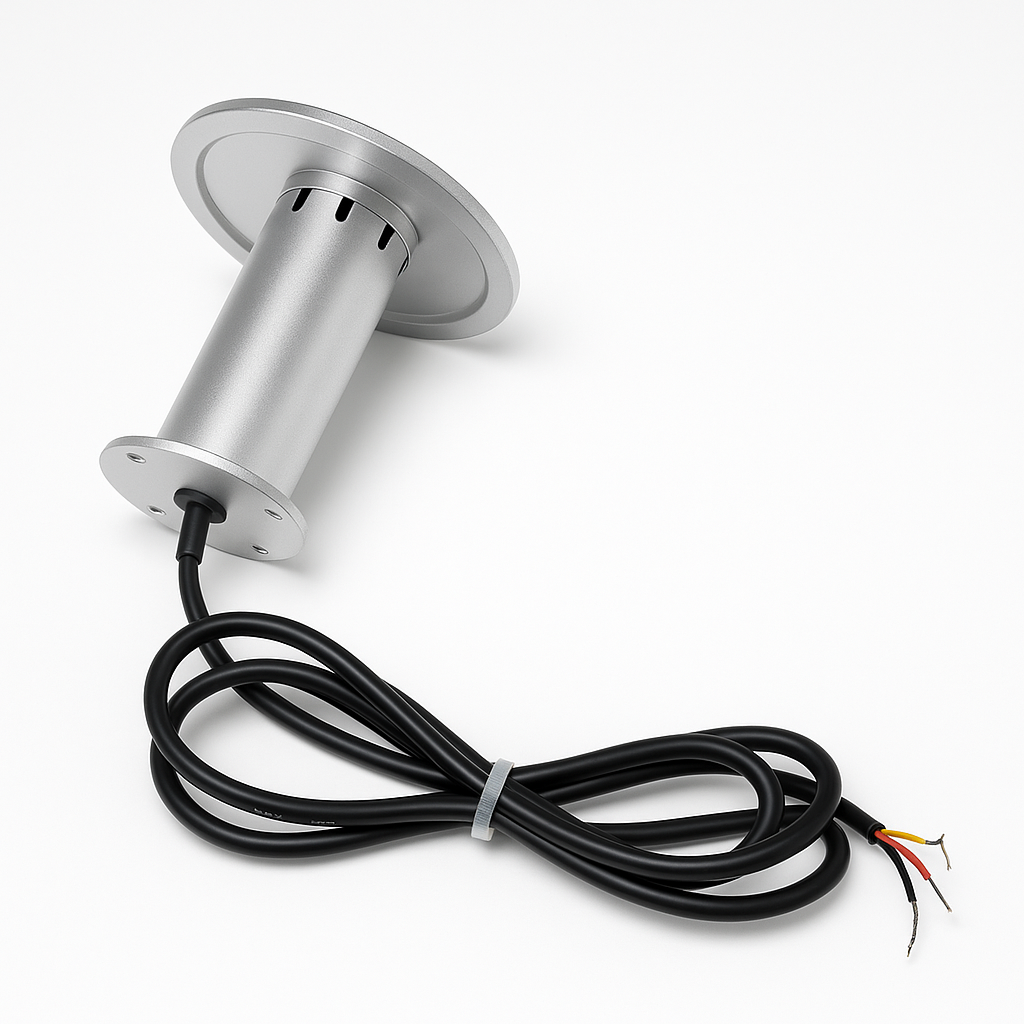

Cable Length	1m (default), other length on request

Ordering Code： X-1

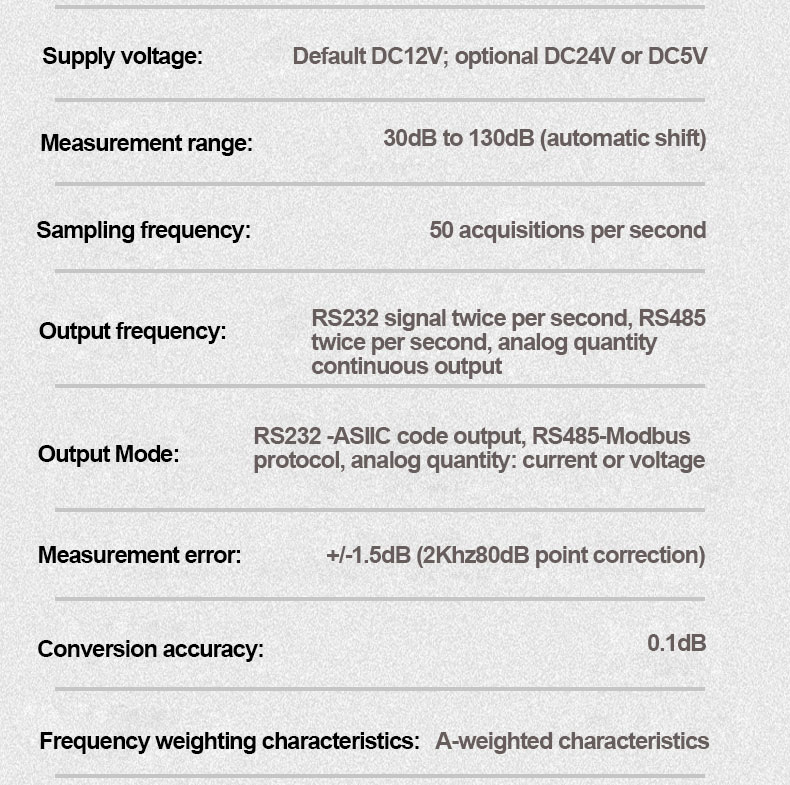

Parameter	Measuring Range	Accuracy	Resolution	Notes
Noise	30~130dB	±1.5dB (2Khz80dB point correction)	0.1dB	Frequency response: 35Hz~20KHz; Frequency weighting: A
Power Supply	-	-	-	DC12~24V (default), DC5V on request
Output Signal	-	-	-	RS485 Modbus-RTU, 4~20mA, 0~3/5/10V

Ordering Code：X-2

Parameter	Measuring Range	Accuracy	Resolution	Notes
Noise	30~130dB	±1.5dB (2Khz80dB point correction)	0.1dB	Frequency response: 35Hz~20KHz; Frequency weighting: A
Temperature	-20℃~+125℃	±0.2℃@(0~60)℃	0.01℃	-
Relative Humidity	0~100%RH	±2%RH	0.01%RH	-
Power Supply	-	-	-	DC12~24V (default), DC5V on request
Output Signal	-	-	-	RS485 Modbus-RTU

Ordering Code：X-3

Parameter	Measuring Range	Accuracy	Resolution	Notes
Noise	30~130dB	±1.5dB (2Khz80dB point correction)	0.1dB	Frequency response: 35Hz~20KHz; Frequency weighting: A
Barometric Pressure	26KPa~126KPa	±10Pa@(80~110)KPa	10Pa	-
Power Supply	-	-	-	DC12~24V (default), DC5V on request
Output Signal	-	-	-	RS485 Modbus-RTU

Ordering Code：X-4

Parameter	Measuring Range	Accuracy	Resolution	Notes
Noise	30~130dB	±1.5dB (2Khz80dB point correction)	0.1dB	Frequency response: 35Hz~20KHz; Frequency weighting: A
Temperature	-20℃~+125℃	±0.2℃@(0~60)℃	0.01℃	-
Relative Humidity	0~100%RH	±2%RH	0.01%RH	-
Barometric Pressure	26KPa~126KPa	±10Pa@(80~110)KPa	10Pa	-
Power Supply	-	-	-	DC12~24V (default), DC5V on request
Output Signal	-	-	-	RS485 Modbus-RTU
